Atlas Copco W2216 User Manual

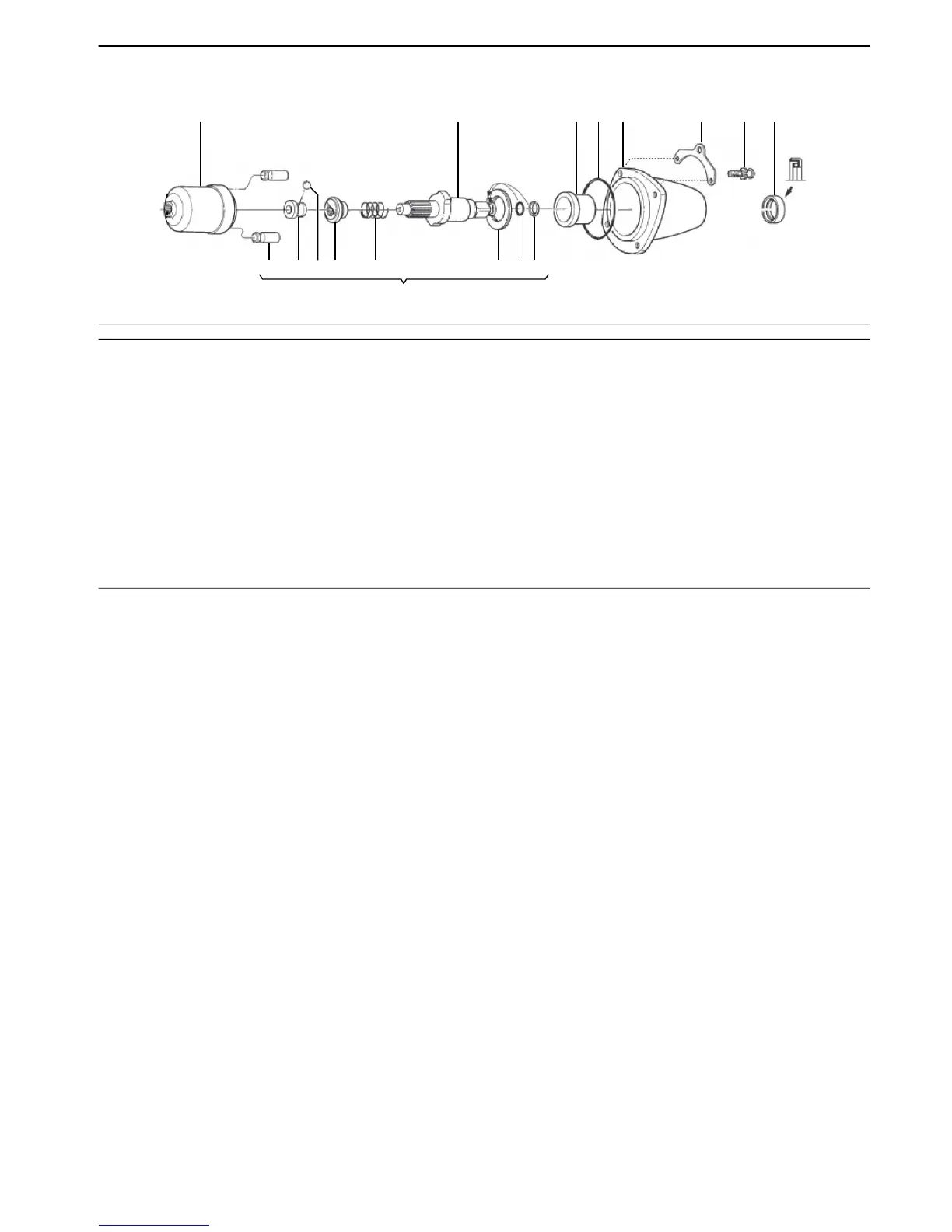

Front part
1
2
3
4
5 6
7
8 9 10
11 12 13 14 15 16 17
7002180
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
Hammer cage14112 3001 031
Impact mechanism kit14112 3001 952(3-10)
Hammer pin24112 3001 283
Cam ball pilot1-4
Ball1-5
Hammer cam1-6
Spring1-7
Spacer1-8
1.8x11.1O-ring1-9
Socket ring1-10
Anvil14112 3001 0411
Anvil bushing14112 3001 0512
O-ring14112 3001 0613
SteelFront housing1-14
Yoke1-15
5/8" 24UNC, with washerScrew4-16
Oil seal14112 0256 0017
53
© Atlas Copco Tools - 9836 4852 00
Spare part listW2216

Atlas Copco W2216 Specifications

General

Brand	Atlas Copco
Model	W2216
Category	Impact Driver
Language	English
