2.4 MAIN PARTS

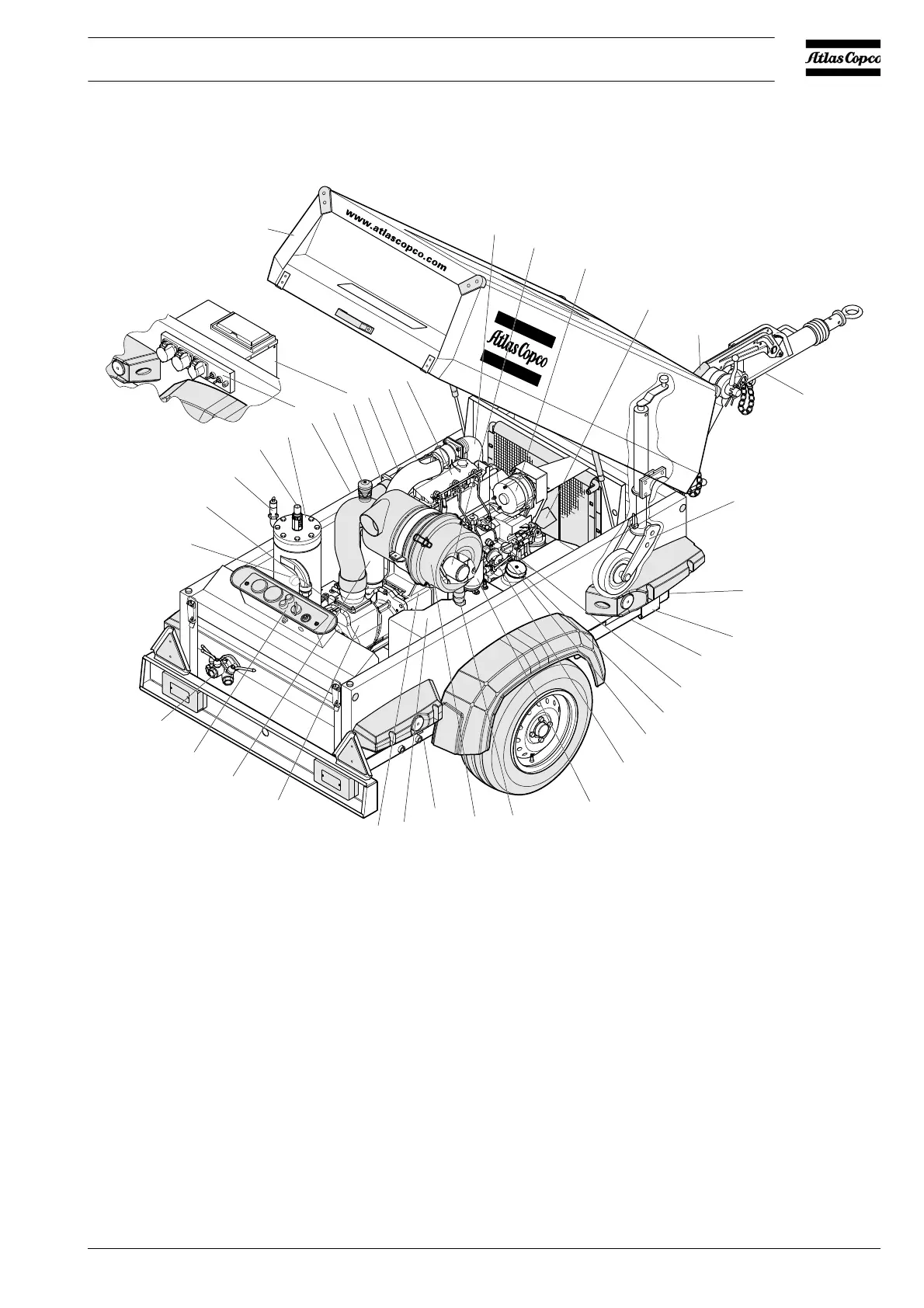

Fig. 2.2 Main parts with some options
AAlternator DP
EC
Drain Plug Engine Oil Cooler H Hood
AF Air Filter DP
FT
Drain Plug Fuel Tank JW Jockey wheel
AFD Anti-Frost Device (option) DS
E
Engine Oil Level Dipstick OF
CE
Oil Filter (compressor element)
AOV Air outlet valves E Engine OF
E
Oil Filter (engine)
AR Air Receiver EP Exhaust Pipe OLG Oil Level Gauge (compressor element)
BH Brake Handle F Fan RV Regulating Valve
C Coupling (XAS 77 DD - XAS 150 DD7,
XAS 97 DD - XAS 185 DD7)
FC
1
Filler Cap (engine oil) S Starting Motor
CE Compressor Element FC
2
Filler Cap (fuel tank) SN Serial Number
CP Control Panel FF Fuel Filter SV Safety Valve
CP
G
Control Panel (generator), (option) FP Filler Plug (compressor oil) TB Towbar
D Data plate FT Fuel Tank VI Vacuum Indicator
DB Drive Belt (XAS 67 DD - XAS 130 DD7,
XATS 67 DD - XATS 125 DD7)
FU Fuel Pump VV Vacuator Valve
SV
A
VI
AR
RV
FP
G
OLG
AOV
CP
DB/C
AF
VV
FF
FU
CE
F
EP
FT
D
SN
1
FC
2
FC
EC
DP
E
DS
E
OF
CE
OF
JW
BH
TB
H
FT
DP
G
CP
S
E
AFD
