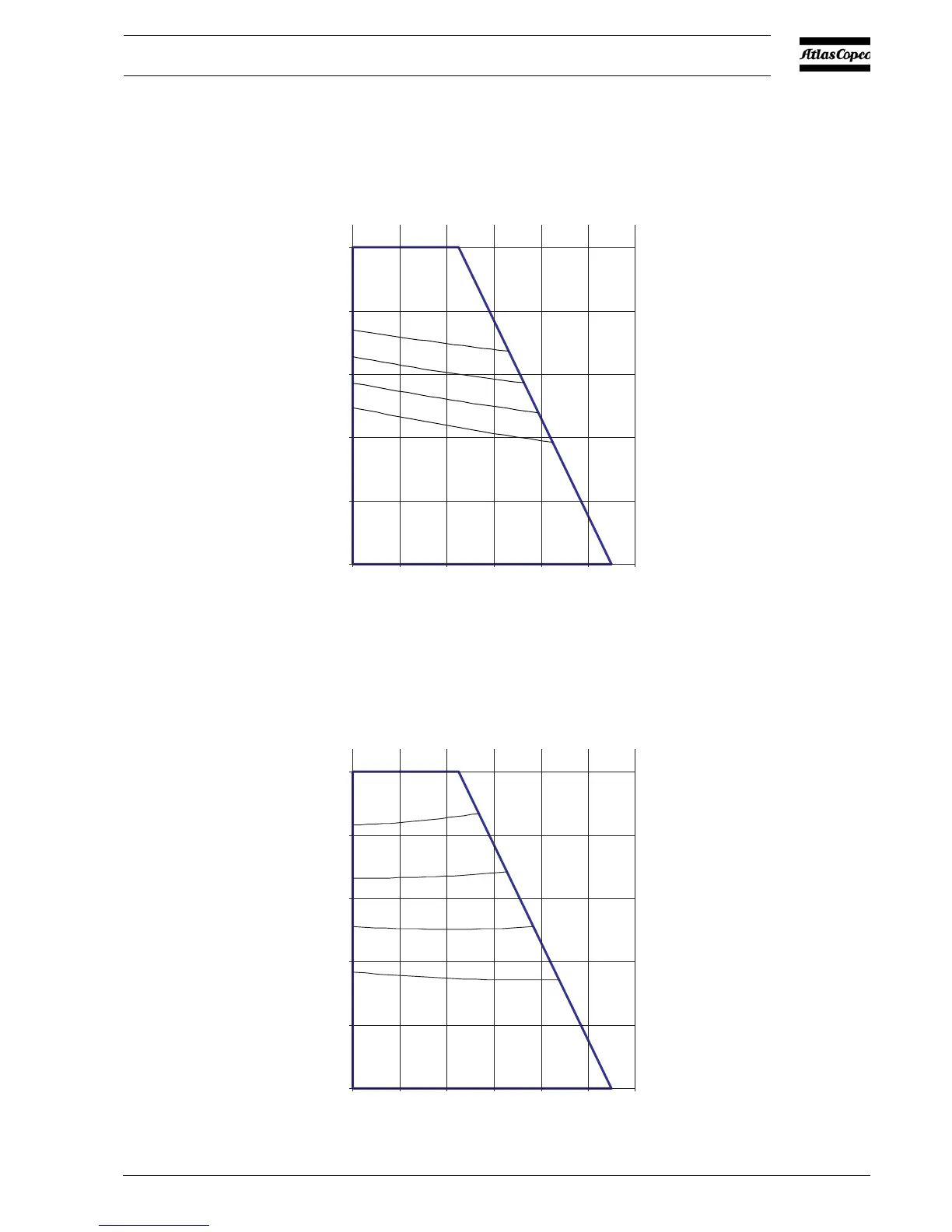

ALTITUDE UNIT PERFORMANCE CURVES XAS 47 DDG - XAS 90 DD7G
Max. allowable working pressure as a function altitude and ambient temperature.
ALTITUDE UNIT PERFORMANCE CURVES XAS 57 DD - XAS 110 DD7
Max. allowable working pressure as a function altitude and ambient temperature.
5.0 bar(e)
73 psi
4.0 bar(e)
58 psi
6.0 bar(e)
87 psi
7.0 bar(e)
102 psi
16 405
13 124
9 843
6 562
3 281
0
5000
4000
3000
2000
1000
0
-10 0 10 20 30 40 50
14 32 50 68 86 104 122
TEMPERATURE °C
ALTITUDE m
ALTITUDE ft
TEMPERATURE °F
5.0 bar(e)
73 psi
4.0 bar(e)
58 psi
6.0 bar(e)
87 psi
7.0 bar(e)
102 psi
16 405
13 124
9 843
6 562
3 281
0
5000
4000
3000
2000
1000
0
-10 0 10 20 30 40 50
14 32 50 68 86 104 122
TEMPERATURE °C
ALTITUDE m
ALTITUDE ft
TEMPERATURE °F
