2.4 Flow diagram and cooling system

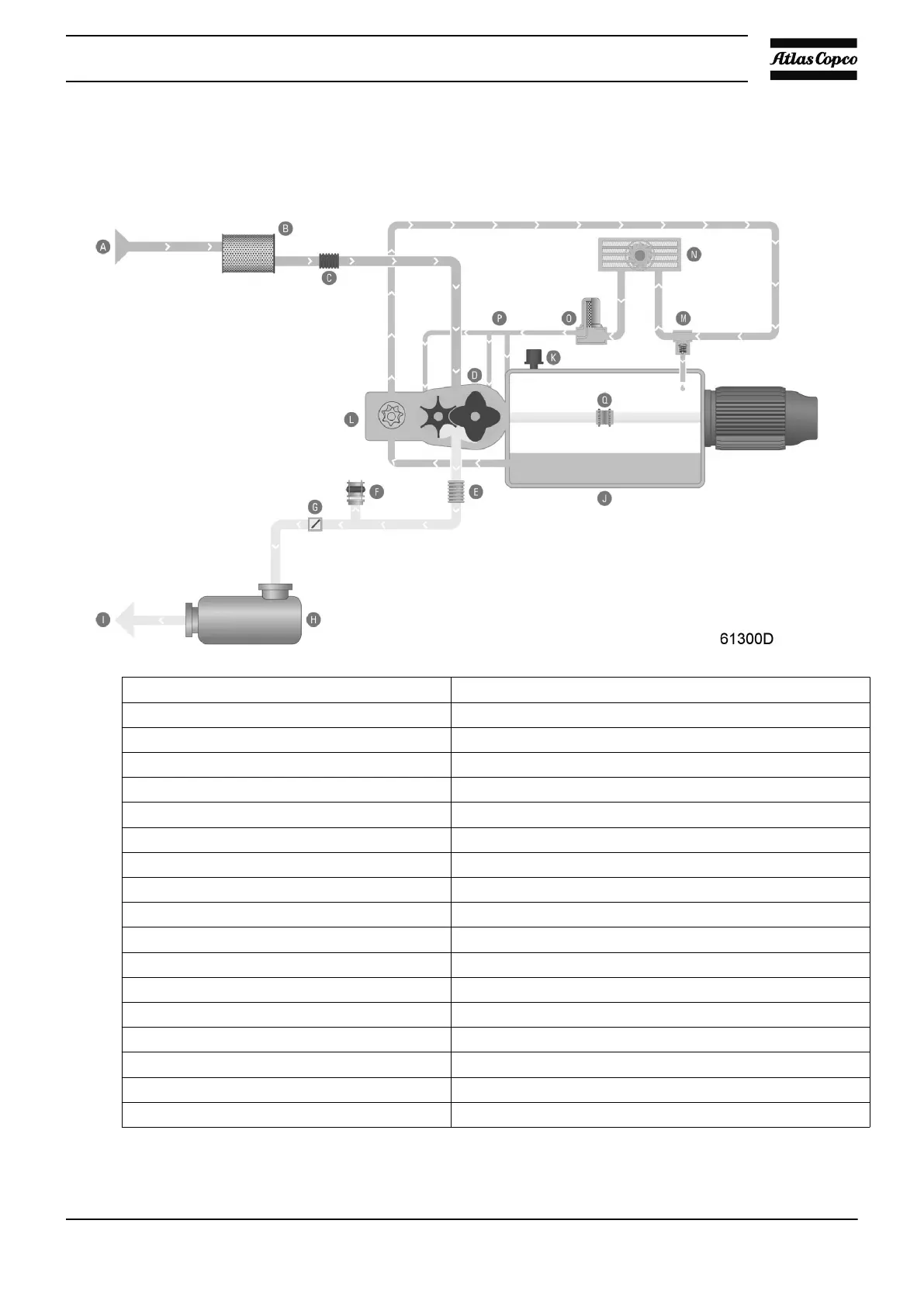

Flow diagram

Drawing reference Description

A Air inlet

B Intake filter

C Flexible connection

D Blower element

E Flexible connection

F Start-up and safety element

G Check valve

H Pulsation damper

I Air outlet

J Oil carter

K Breather

L Oil pump

M Bypass valve

N Oil cooler

O Oil filter

P Oil injection to bearings and gears

Q Gears

Instruction book

AIF999999 17
