Atlas 501 - Monitor and Card Reader Installation; Monitor Installation

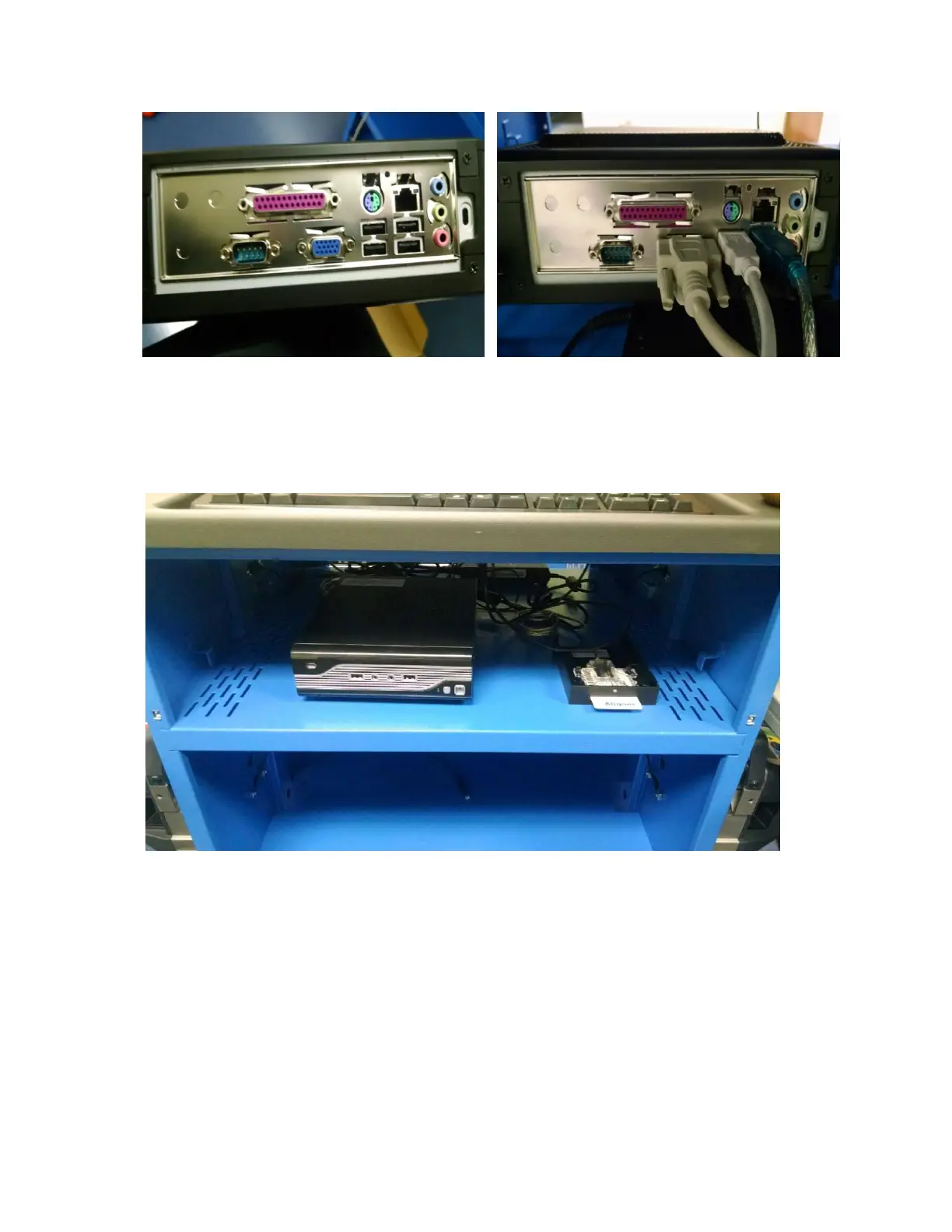

Blank CPU 501 Connected
*Note Pc model may be different but connections will be same on all.
***New style PC Unit
4. Monitor installation: You will receive a monitor in a separate box. Mount
this to the existing bracket on the cabinet using the supplied hardware (4
small allen screws). You may adjust angle of monitor by loosening the
larger allen head screws and tilting. Then tighten back.
