OWNER'S MANUAL
AA35 MIXER AMPLIFIER
10

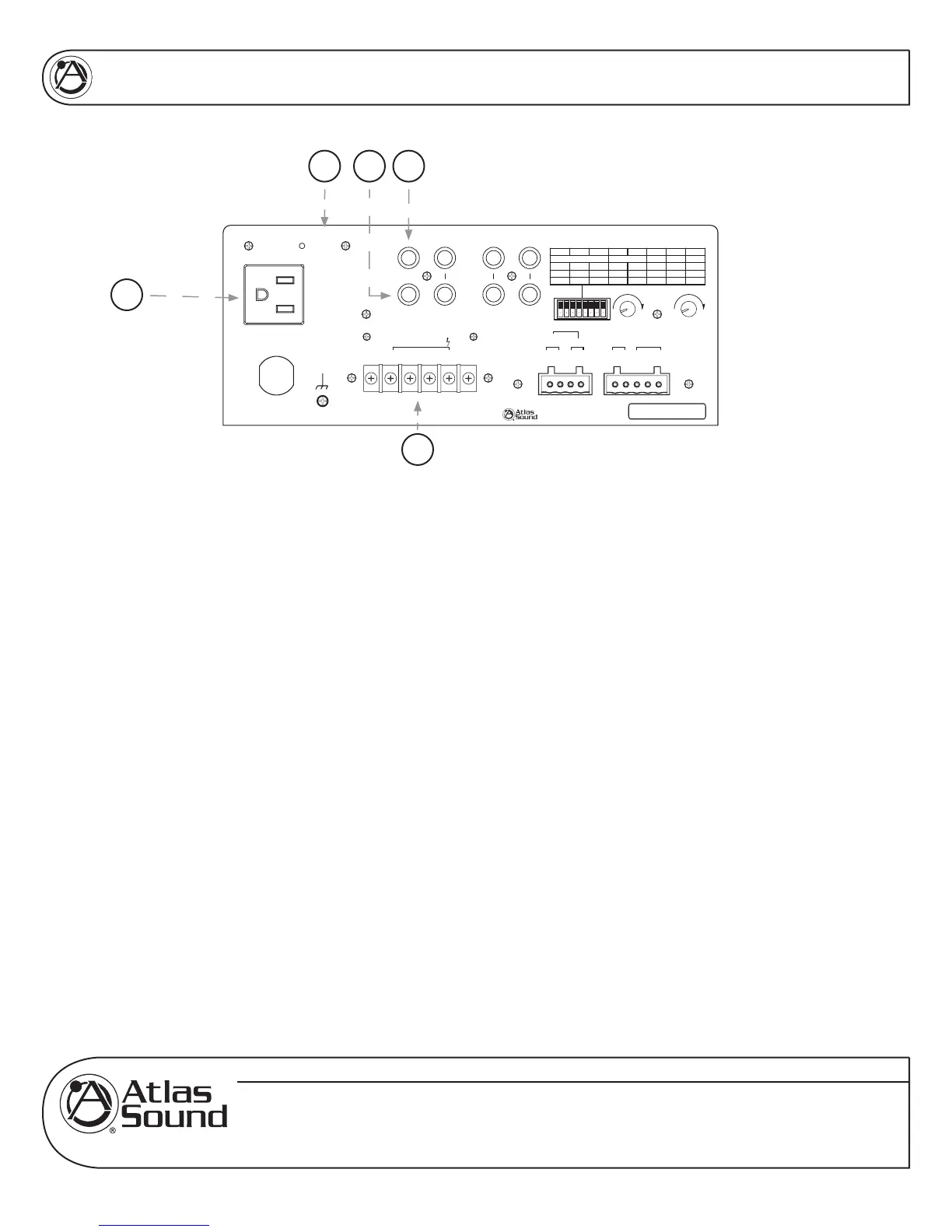

18. Pre Out
The PRE OUT connector allows Post tone control and low cut filter (when engaged) functions to
be available to drive another power amp or external audio device(s). Used in conjunction with the AMP
IN connector, an effects loop can be created by connecting the PRE OUT jack to a device such as an
equalizer then back out to the AMP IN connector. See Example 3 in the Setup section of this manual.
19. Amp In
The AMP IN connector is useful for converting the AA35 into a slave amp. When a line level signal is
connected to this input, the internal connection between the preamp and internal power amp is
broken. Audio signals applied to this connector are post tone control and input level controls.
20. Breaker
The circuit breaker is designed to trip and shut down the AA35 "Unswitched Outlet" upon an over
current condition. After correcting the cause of the breaker tripping, reset the breaker by pushing in on
the tab.
21. Unswitched Outlet
The unswitched outlet provides power for other devices (Atlas rack work light, etc.) and is live
whenever the power cord is plugged into a live outlet. Total power draw must not exceed 500W.
22. Output Terminal Strip
For loudspeaker connections, connect as follows or proceed to the setup section for typical wiring
schemes.
COM - Speaker common or negative connection
8Ω - Connect to direct coupled loudspeakers
25V - Connect to transformer coupled, 25V loudspeakers with a total load impedance of no less than
17.8Ω
70V - Connect to transformer coupled, 70.7V loudspeakers with a total load impedance of no less than
142.8Ω.
On
Off
Low
cut
8
On
Off
43
21
Phantom
Mute Rcv
Off
On
Off
On
Off
On
Off
On
5
Zone 2 Assign
6
Input 3 Input 2 Input 1
Input1
7
Input 2
Input 3
Line/Tel
Mic
Off
On
Unswitched Outlet
120V AC 60Hz
Max 500W
Outlet Breaker
125V AC 4A
Push Reset
120V AC 60Hz 100W
Amp In
Line Out A
Line Out B
Pre Out
Input 3 Input 2
L
R
Zone2
100
Level
Mute
Sens
100
Remote
Mute
G-+
Input 1
¡
8
1W
¡
600
Zone 2 Out
-+-+
Speaker Output 35W
COM
25V
¡
8
70V
L
R
£Èä£Ê>VÊV>ÞÊÛ`°]ÊÃ]Ê/8ÊÇx££Ê
nää®ÊnÇÈÎÎÎÎÊÌ>Ã-Õ`°V
77)+
7jbWiIekdZ77I[h_[iC_n[h7cfb_\_[h
CLASS 2 WIRING
1819
22
20
21

Atlas AA35 Specifications

General

Package weight	4630 g
Amplifier class	-
Frequency range	50 - 20000 Hz
Output impedance	8 Ω
Audio output channels	3.0 channels
Peak power per channel	35 W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	- %
Purpose	Performance/stage
Product color	Black
Volume control	Rotary
Bass adjustment	Yes
Channels quantity	3 channels
Connectivity technology	Wired
AC input voltage	110 - 120 V
Power source type	AC
Speakers connectivity type	Phoenix / RCA

Weight and Dimensions

Depth	276 mm
Width	210 mm
Height	93 mm
