5

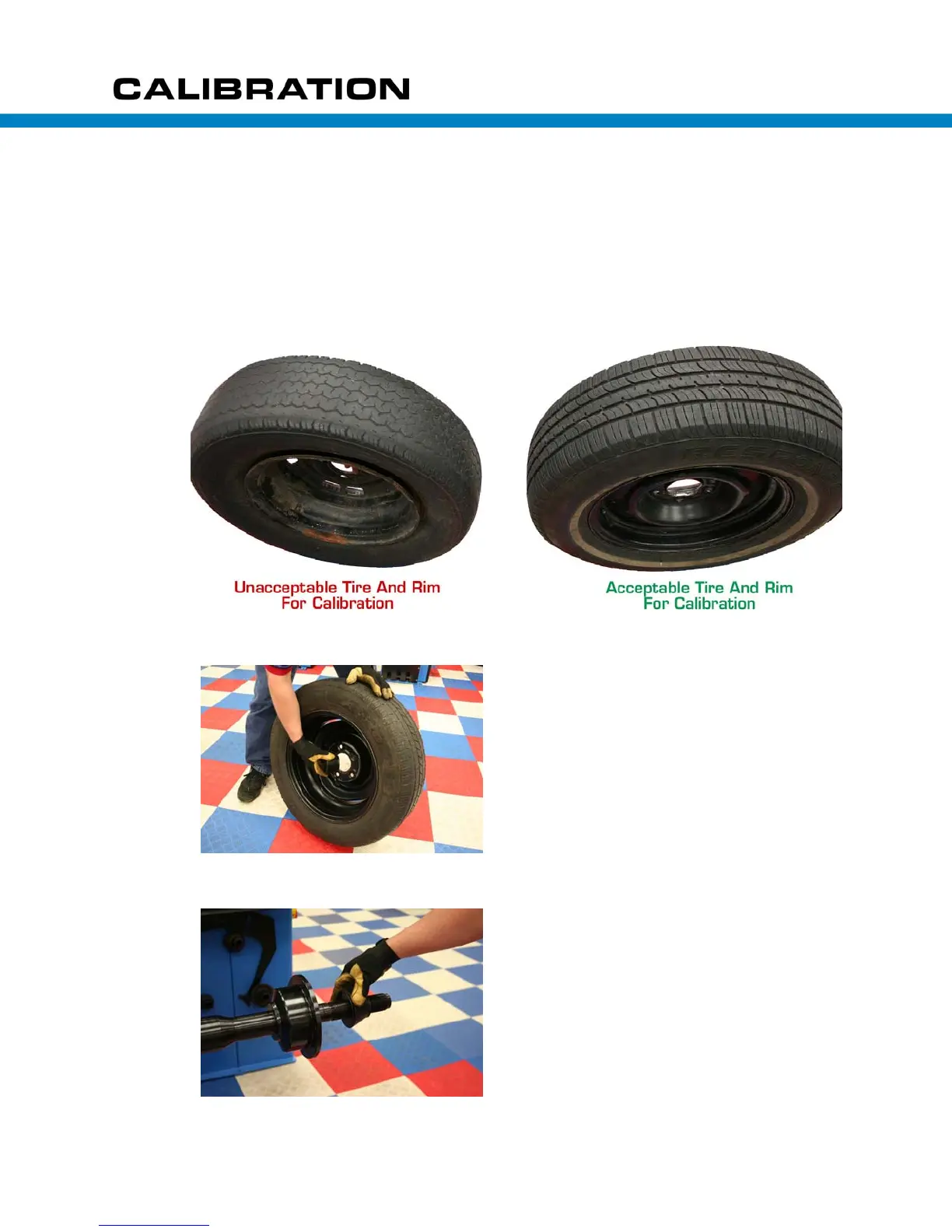

STEP 1: Use a 15 inch diameter, 6 inch wide (P205/70 R15 or P215/70 R15), slightly used or
new steel wheel and tire on the balancer. Only a hub-centric wheel may be used.
Wheels that are lug-centric (center on the studs, not the center hole) cannot be used
for calibration. Trailer wheels cannot be used for calibration. Aluminum or alloy
wheels cannot be used for calibration. The wheel used must not have any weights
installed. The only weight you will use in the calibration procedure is the special (red)
calibration weight provided with the balancer. Failure to follow these instructions
will result in an incorrect calibration and poor balancing accuracy.
STEP 2: Begin by selecting a cone which will fit the center hole of the wheel.
STEP 3: Place the cone on the shaft.
