ATF16V8B/BQ/BQL

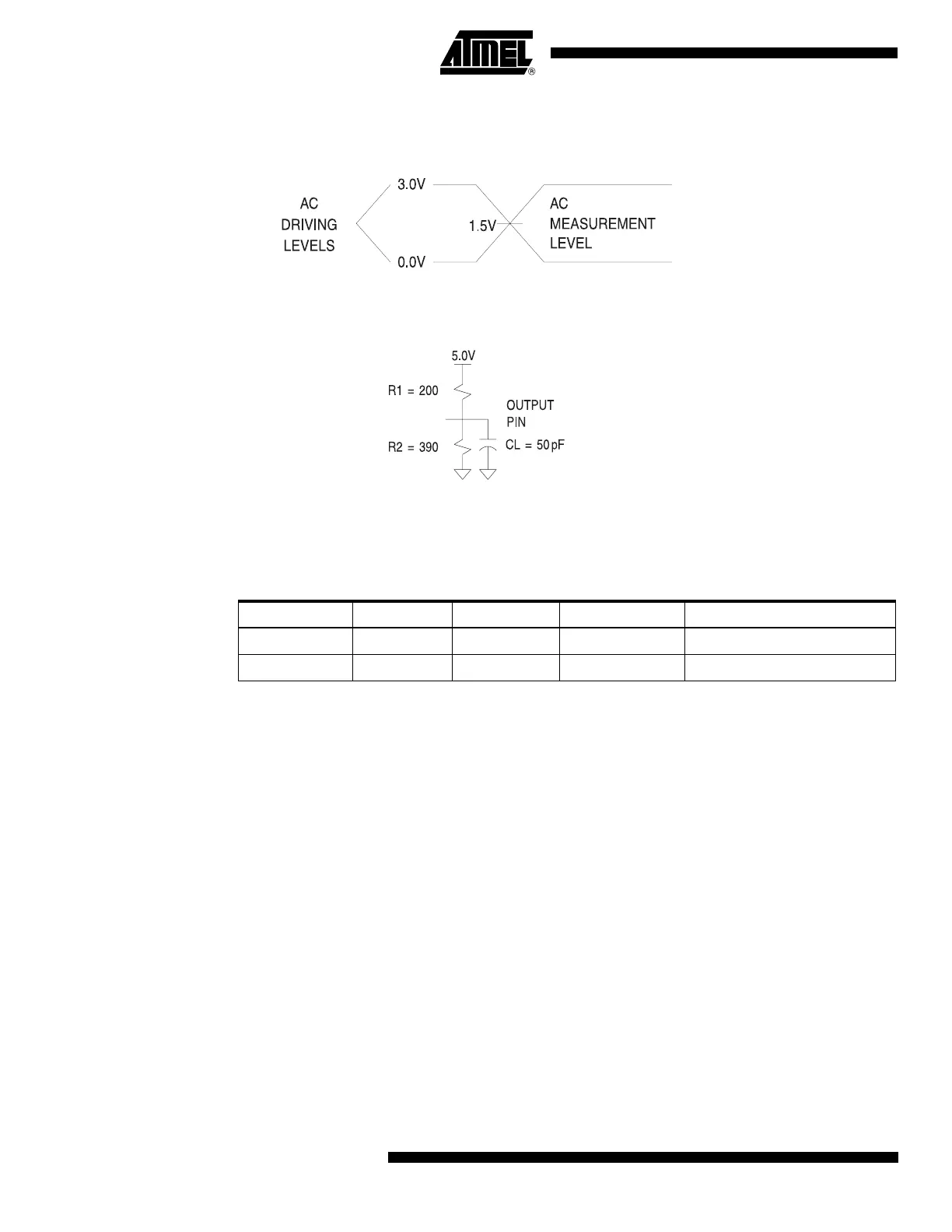

4.4 Input Test Waveforms
4.4.1 Input Test Waveforms and Measurement Levels
t
R
, t
F
< 5 ns (10% to 90%)
4.4.2 Output Test Loads (Commercial)
C
L
includes Test fixture and Probe capacitance
4.5 Pin Capacitance
Note: 1. Typical values for nominal supply voltage. This parameter is only sampled and is not 100%
tested.
Table 4-1. Pin Capacitance (f = 1 MHz, T = 25°C
(1)
)
Typ Max Units Conditions
C
IN
58 pF V
IN
= 0V
C
OUT
68 pF V
OUT
= 0V
