Operation and maintenance manual - EN

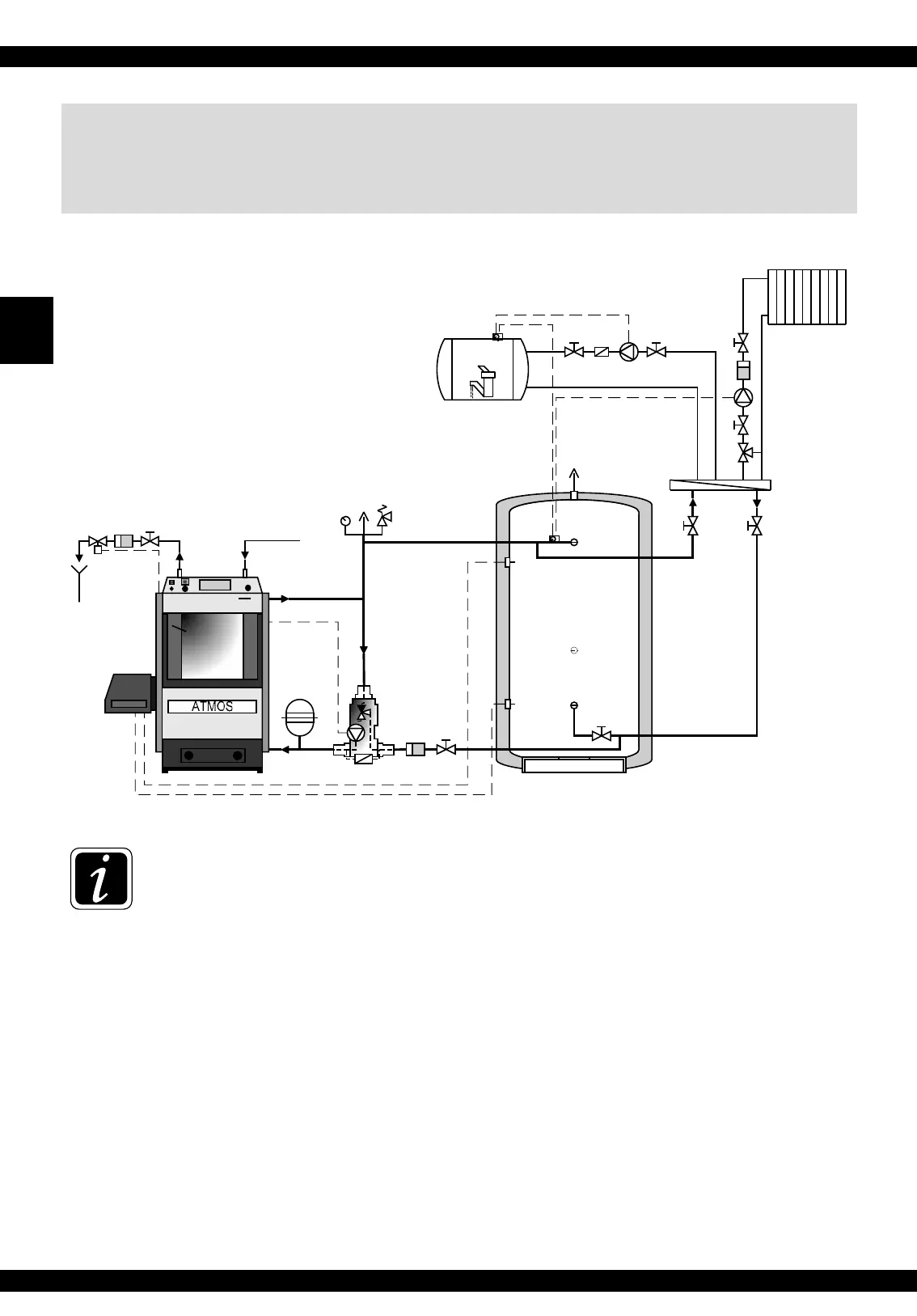

11. Connection of boilers D14P, P14, D15P, P15, D21P, P21,
D25P or P25 with a buffer tank for burner control on the
basis of TS and TV sensors
INFO – The TV and TS (boiler accessory) sensors on the accumulation tank are connected
directly to the burner. The boiler does not include an extraction fan, and so it does not
requjire the AD02 or AD03 module.
Required accessories (not part of the burner): nothing needs to be bought
System configuration of parameters: S6 = 1, S14 = 0, S15 = 2
Pump in the boiler circuit is controlled via the directly installed thermoregulator from the boiler panel.
odpad
outlet
Ts
Tv
termostat
thermostat
40°C - 60°C
MAX. 60°C
40 - 75°C
přívod
supply
2-6 bar
10-15°C
ventil / valve
TS131 – 3/4ZA
(WATTS STS20)
filtr
filter
mísící ventil
mixing valve
čerpadlo
pump
obytné místnosti
habitable rooms
tlakoměr, přetlakový ventil,
odvzdušňovací ventil
pressure gauge, safety
valve, deaerator
tlaková
expansní
nádoba
pressure
expansion
vessel
ventil
valve
ventil
valve
ventil
valve
filtr
filter
ventil
valve
bojler TUV
DHW boiler
ventil
valve
ventil
valve
ventil
valve
ventil
valve
A25
vyrovnávací nádrž
buffer tank
500 - 1000 l
odvzdušňovací ventil
deaerator
Laddomat 22
