Centrifugal switch
Main winding
Secondary winding
GK3000 User Manual

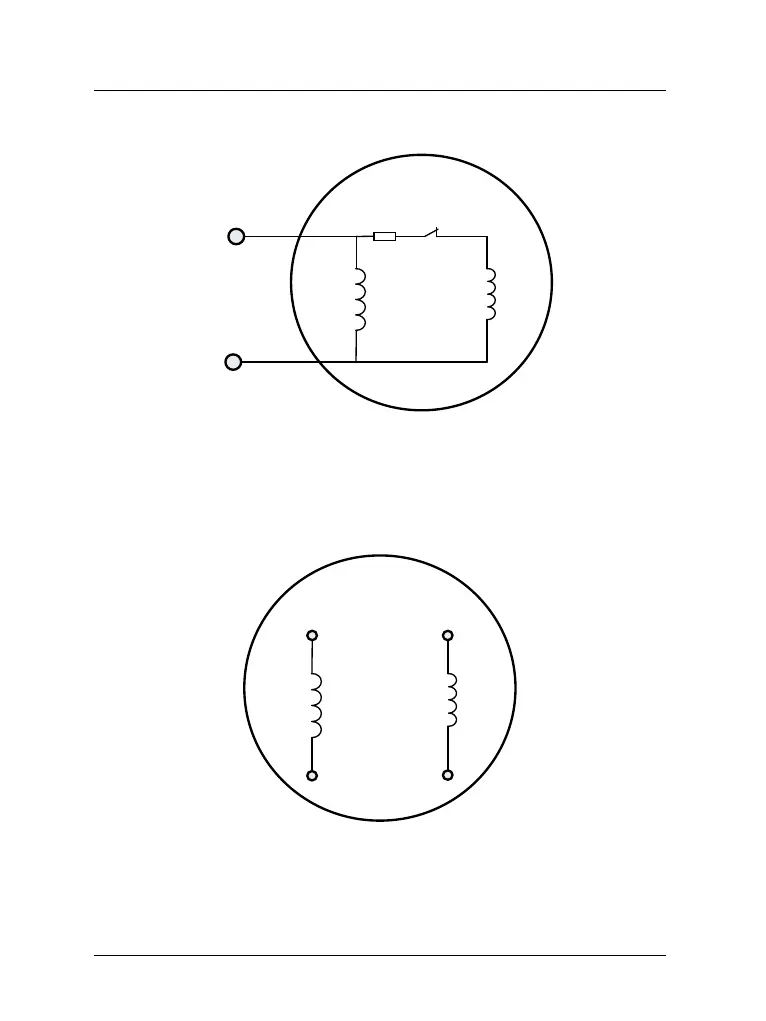

Resistor starting mode single phase motor, and internal wiring is as below:
Figure 4-7 Resistor starting mode: Internal wiring of motor
After removing the capacitors from above motors, remain 4 main and secondary
winding terminals as below:
M
U1
U2
Z1
Z2
Main winding
Secondary winding
Figure 4-8 Main and secondary winding of motor (After removing the capacitors)
-10-
