220VAC
KM1
L1
L2
(-) (+) (PB)
U
V
W
M
Z1
Z2
U1
U2
Main winding
Secondary winding
220VAC
KM1
L1
L2
(-) (+) (PB)
U
V
W
M
U1
U2
Z1
Z2
Main winding
Secondary winding
GK3000 User Manual

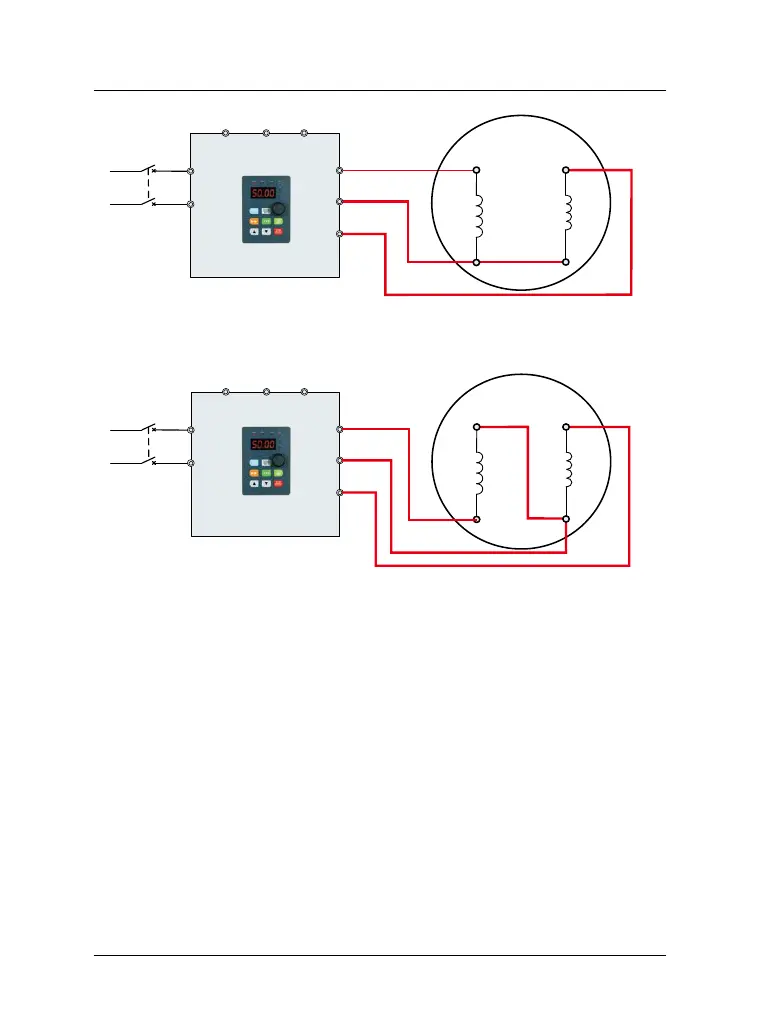

Figure 4-11 Forward wiring between GK3000 (＞0.75kW) and motor
Figure 4-12 Reverse wiring between GK3000 (＞0.75kW) and motor
If the capacitor in motor is Non-removable, the wiring is as below. The forward
and reverse is determined by VW wiring sequence.
4.3.3 Wiring between VFD and motor (Non-removable capacitor)
Note: After wiring completed, need to set P9.13=1(Thousand's digit).
GK3000
GK3000
-12-
