ATO GK3000 - Page 16

M
220VAC
KM1
L1
L2
(-) (+) (PB)
U
V
W

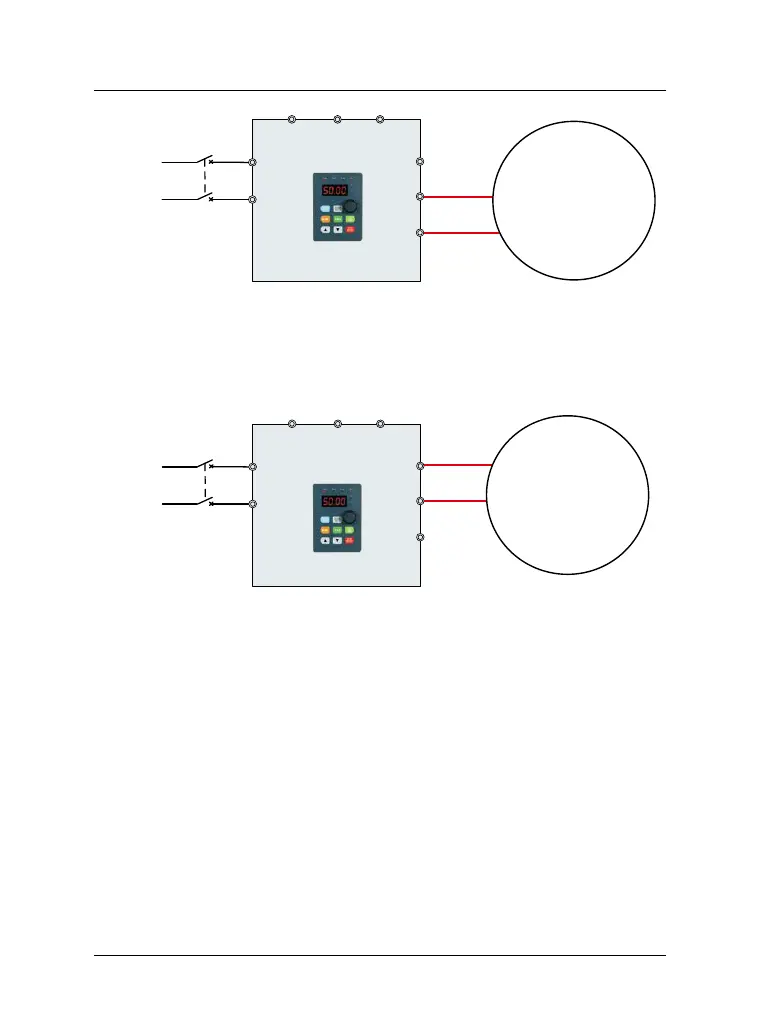

Figure 4-13 Wiring between GK3000 (<=0.75Kw) and motor
M
220VAC
KM1
L1
L2
(-) (+) (PB)
U
V
W
Figure 4-14 Wiring between GK3000 (<=0.75Kw) and motor
The forward and reverse is determined by UV wiring sequence.
Note: After wiring completed, need to set P9.13=2(Thousand's digit)
GK3000
GK3000
GK3000 User Manual
-13-
