Atoll AM200 - Amplifier Connectivity Diagram; Technical Specifications; Operational Cautions

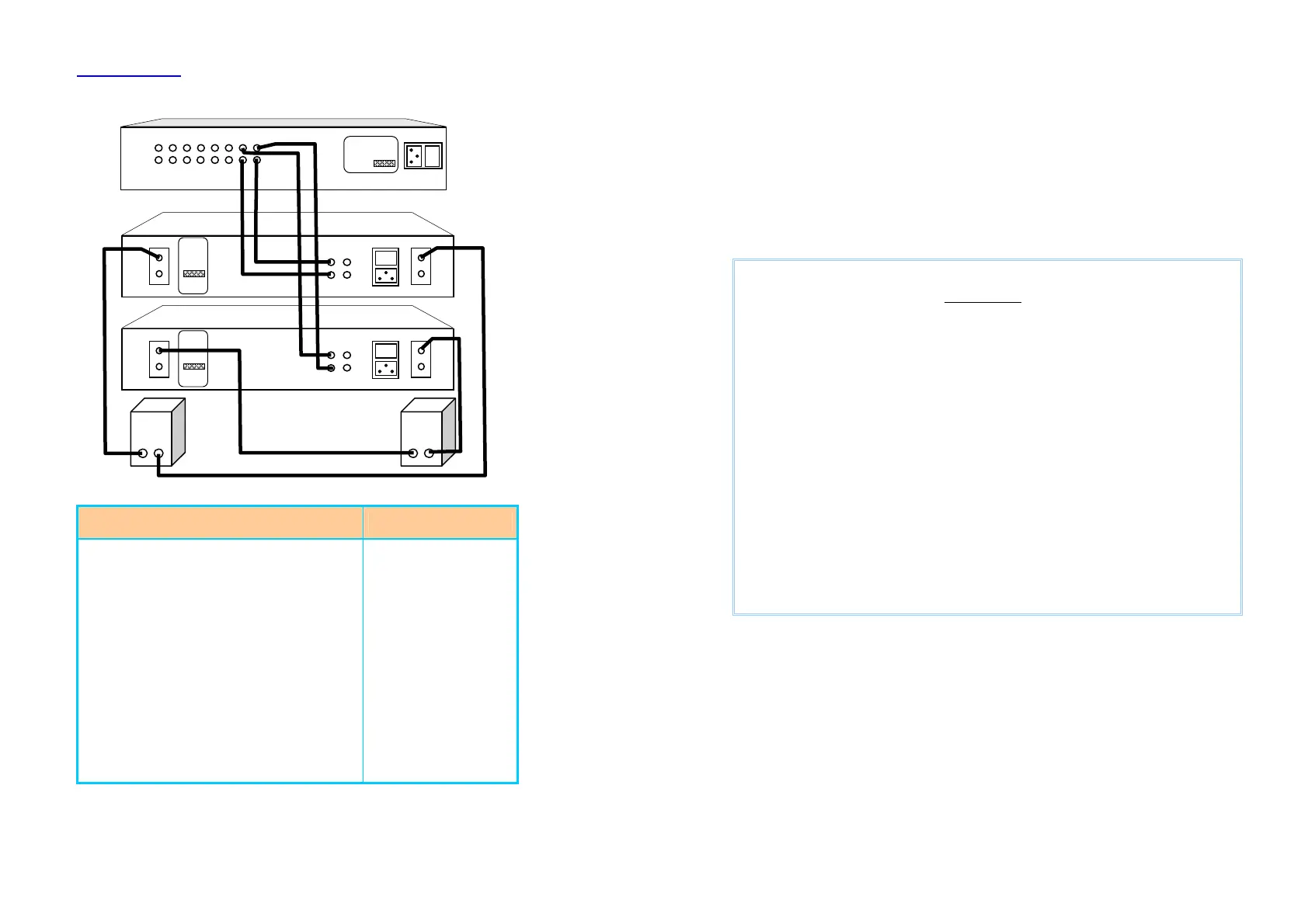

C ONNECTING :
(Configuration : 1 Preamplifier & 2 bridged mono amplifier)
TECHNICAL FACTS AM200
Power Wrms / ch. / 8 ohms (230v)
Power Wrms / ch. / 4 ohms (230v)
Alimentation :
Total of capacitors :
Number of Inputs :
Input Impedance :
Sensitivity :
Rate Signal/Noise :
Distortion at 1kHz :
Frequency Response :
Rise Time :
Dimensions :
Weight :
120 W
200 W
660 VA
62 000 µF
2X2
220 kohms
1,8 V
100 dB
0,005%
5Hz-200kHz
1,5µs
440*90*280mm
12 Kg
ATOLL ELECTRONIQUE
®
is a French Company who conceive,
manufacture and commercialise all its products.
You have just bought an amplifier with exceptional audiophile
performance. We really thank you for your confidence in our
products. To get the best part of your amplifier, please read
carefully this manual.
C AUTIONS :
- Put your amplifier in a dry and well ventilated place, far from
source of heat;
- Do not put something on your amplifier;
- Do not make any plug in when the amplifier is on;
- Avoid any short-cut;
- Respect polarity + & - and switch left & right;
- Do not plug in two speakers in parallel on the same output.
You will find enclosed :
- a power amplifier AM200 ;
- one powerlead;
- this manual with the certificate of guarantee.
L
R
DO NOT OPEN
NE PAS OUVRIR
SERIAL NUMBER
NUMERO DE SERIE
PREAMPLI
AMPLI 1
AMPLI 2
+ - + -
AUX . CD TUNER DVD . PRE OUT
L
R
POWER
DO NOT
OPEN
NE PAS
OUVRIR
SERIAL NUMBER
NUMERO DE SERIE
+
RIGHT
-
+
LEFT
-
AUX . CD TUNER DVD . PRE OUT
L
R
+
DO NOT
OPEN
NE PAS
OUVRIR
SERIAL NUMBER
NUMERO DE SERIE
+
RIGHT
-
PRE-OUT
+
LEFT
-
