Auger 10 shown is extra. Operator to select sizes to suit
holes to be drilled.
2 Locking collar with grub screw to secure auger
3 Gear box
4 Gripping and carrying handle
5 Engine
6 Recoil starter – to start motor
7 ON/OFF switch to stop motor.
8 Motorcycle type twist grip handle and throttle control.
Twist to left (anti-clockwise) to increase engine speed.
9 Fuel tank cap
10 Auger rotates in right hand (clockwise) direction when
drilling. If drill unit is pulled back auger rotation reverses
(anti clockwise) and screws out. When pressure on auger
is released, auger automatically rotates in right hand
(clockwise) direction.
11. Holding nest for grub screw Allen Key to lock/unlock collar
and auger.
12. Carburettor primer bulb.

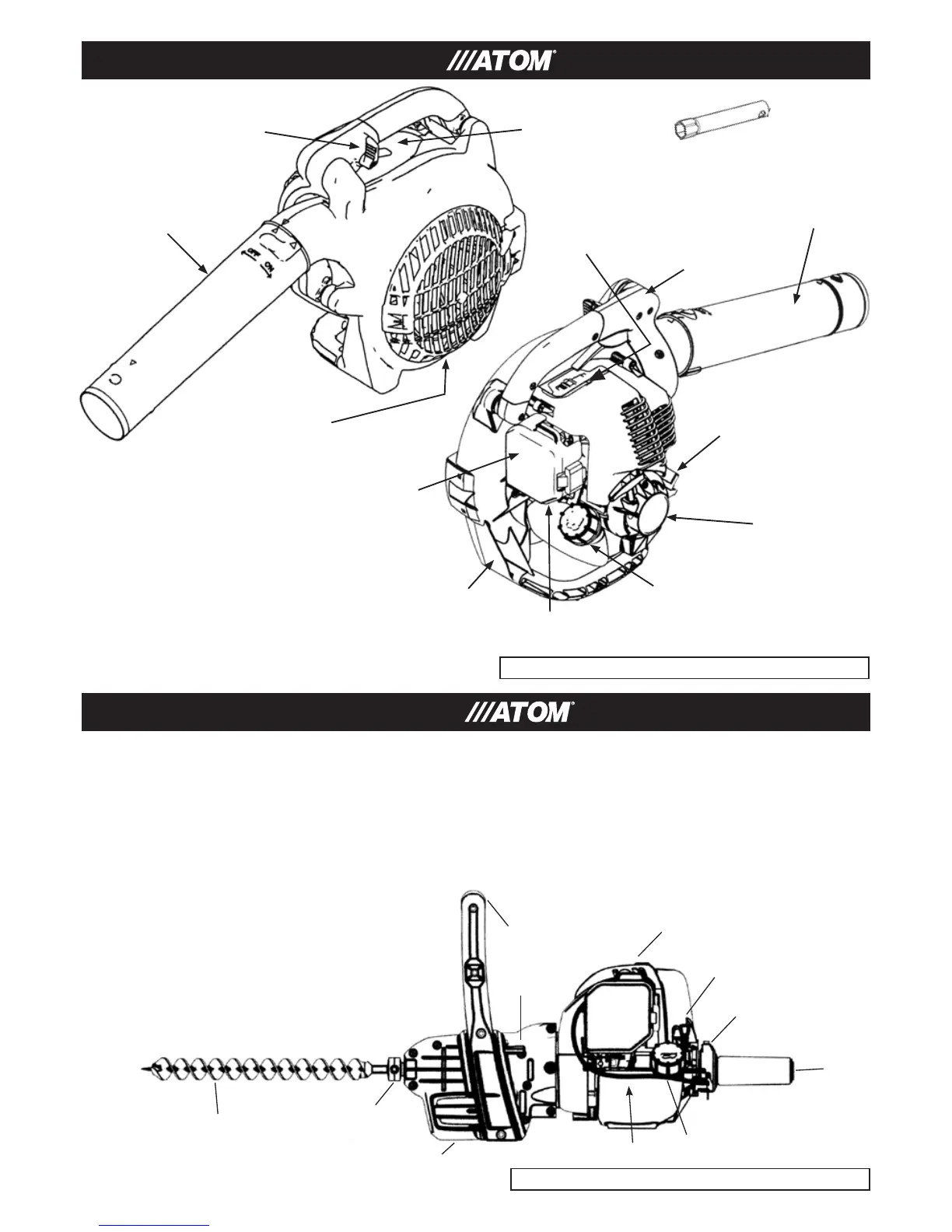

PARTS & CONTROLS: AIRLIFT BLOWERS
PARTS & CONTROLS: ENGINE DRILLS
PAGE 8
3
9
10
2
4
11
5
6
7
8
COMBINATION LEVER
TO SWITCH MOTOR
OFF (FORWARD) AND
FOR CRUISE CONTROL
(REARWARDS)
THROTTLE
TRIGGER
ANTI VIBRATION
RUBBER GRIP
HANDLE
Atom 2-Stroke AIRLIFT Blowers and Atom
Honda Powered 4-Stroke AIRLIFT Blowers
are basically similar in appearance and
operation.
BLOWER
TUBE
AIR
INLET
AIR
FILTER
SAFETY
LABEL
PETROL TANK
CAP
OIL FILLER AND
DIPSTICK FOR
4-STROKE
CARBURETOR
PRIMER BULB
RECOIL
STARTER
BLOWER
TUBE
FIG 45
FIG 46
SPARK PLUG POSITION
(all models). On 4-Stroke
(as illustrated) spark plug
has cover which clips off
for access
FIG 47
12
BLOWER INSTRUCTIONS CONTINUE ON PAGE 10
DRILL INSTRUCTIONS CONTINUE ON PAGE 10
SUPPLIED 4-STROKE SPARK
PLUG TUBE SPANNER
