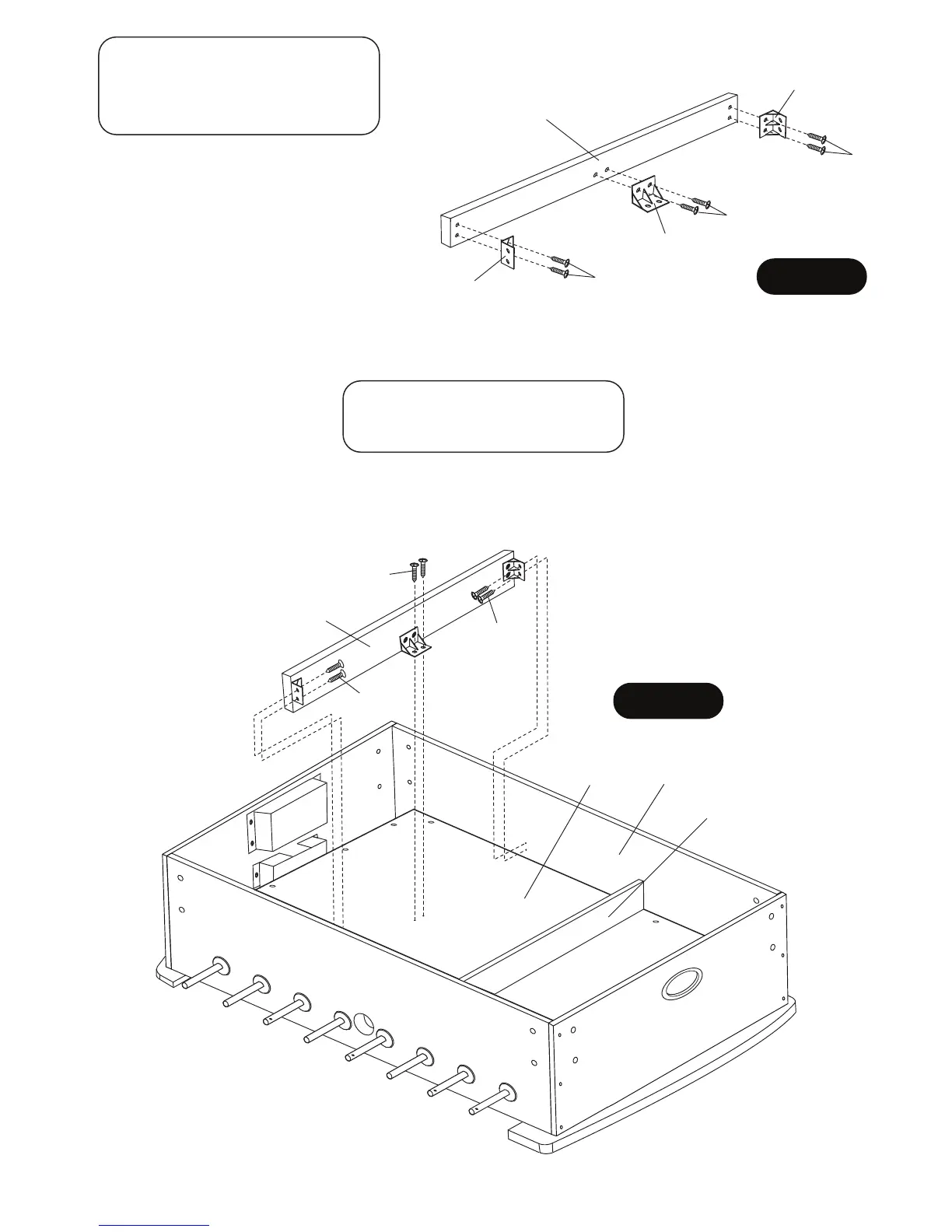

STEP 10:
Attach P18 Plastic Brackets onto P7 Playfield
Support Braces using pre-drilled pilot holes
with H4 Screws as shown in FIGURE 10.
Tighten, but do not strip out H4 screws.
NOTE: Be sure bottom edge of all P18 Plastic
Brackets are flush with the edge of P7 Support
Braces.
PARTS REQUIRED:
12 pcs - H4 Phillips Round Head Screw
2 pcs - P7 Playfield Support Brace
6 pcs - P18 Plastic Bracket
FIGURE 10
H4
H4
H4
P18
P18
P18
P7
PARTS REQUIRED:
12 pcs - H4 Phillips Round Head Screw
STEP 11:
Attach previous assembly STEP 10 onto P3 Playfield and P1 Side Aprons using pre-drilled pilot holes with H4
Screws as shown in FIGURE 11. Tighten, but do not strip out H4 screws.
NOTE: Be sure plastic brackets are facing each other for correct assembly.
FIGURE 11
H4
H4
H4
STEP 10
Assembly
STEP 10
Assembly
P3
P1
To Next Page
