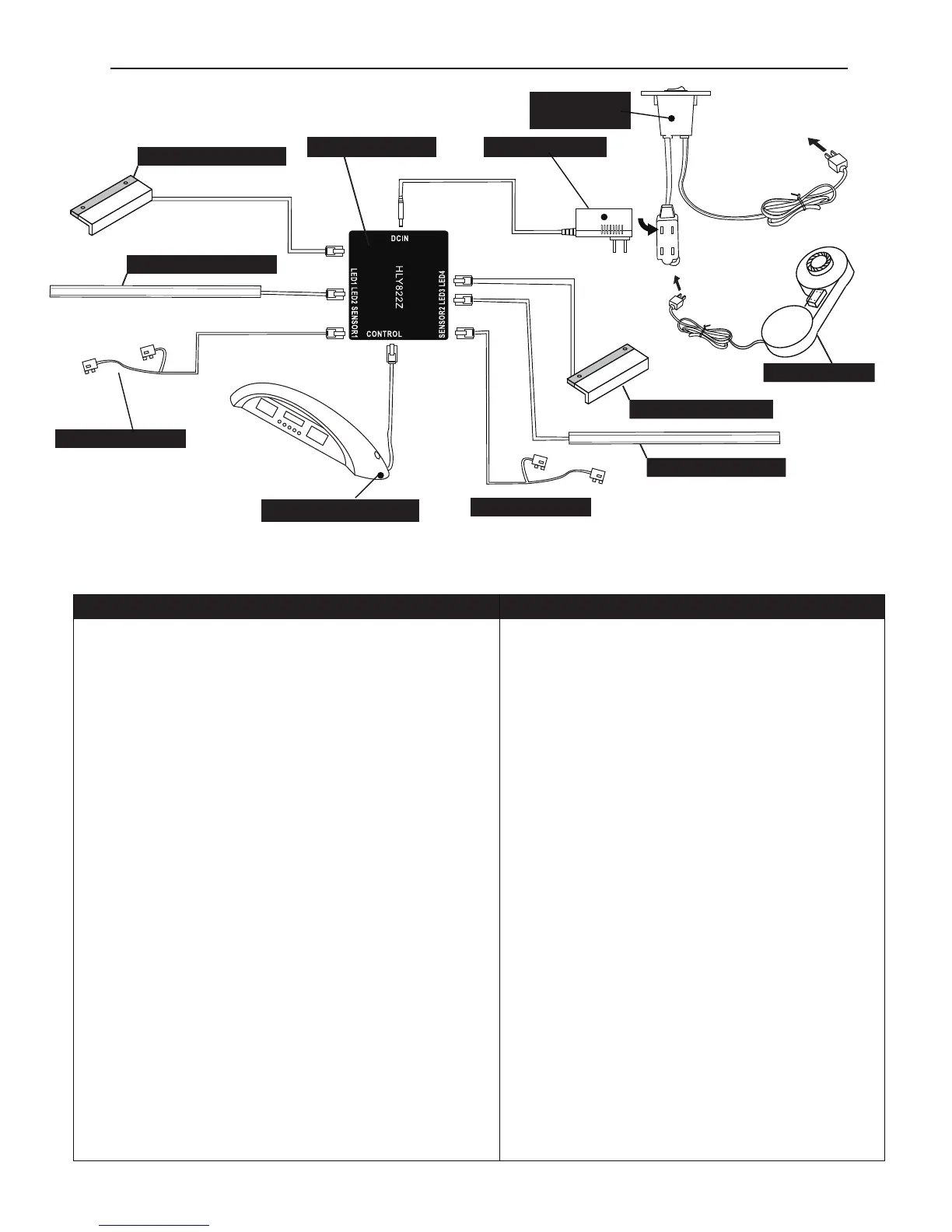

ELECTRICAL CONNECTIONS & SPARE PARTS DRAWINGS
To Wall
Outlet
C1 - ON/OFF
Switch
-
C2-A/C Adapter
C3 - Junction Box
C10 Right Sensor
C4 Right LED Lights
C10 Left Sensor
P12 -Scorer Console
PRODUCT PARTS LIST
G04865HLH1 8 x 35 mm Allen Head Bolt
G04865HLH2
8.5 x 22 mm Flat Washer
G04865HLH3 8 x 28 mm Phillips Round Head Screw
G04865HLH4
4 x 45 mm Phillips Flat Head Screw
G04865HLH5
3.5 x 12 mm Phillips Round Head Screw
G04865HLH6
3.5 x 14 mm Phillips Flat Head Screw
G04865HLH7
3.5 x 18 mm Phillips Round Head Screw
G04865HLH8 3.5 x 33 mm Phillips Round Head Screw
G04865HLT1 M5 Allen Wrench
G04865HLA1 BLUE LED Striker
G04865HLA2
RED LED Striker
G04865HLA3
Felt Pad
G04865HLA4 Blue LED Puck
G04865HLA5
Red LED Puck
G04865HLA6 Red Puck
G04865HLA7
USB Cable
G04865HLA9 2 mm Shim Pack
G04865HLA8 1 mm Shim Pack
G04865HLP1 Air Hockey Table Cabinet (no motor) 1
G04865HLP2 Left Leg 2
G04865HLP3 Right Leg 2
G04865HLP4 End Apron 2
G04865HLP5 Side Apron 1
G04865HLP6 Side Apron with ON/OFF Slot 1
G04865HLP7 End Leg Panel
Side Leg Panel
Side Leg Support Board A
Side Leg Support Board B
A/C Adapter
Junction Box
2
G04865HLP8 2
G04865HLP9 1
G04865HLP10 1
G04865HLP11 Corner Post 4
G04865HLP12 Scorer Console 1
G04865HLC1 ON/OFF Switch 1
G04865HLC2 1
G04865HLC3 1
10
2
G04865HLC4 Lighting LED Rail
4
G04865HLC5 Corner Cap
G04865HLC6 Side Top Rail
4G04865HLC7 8 x 25 mm Allen Head Bolt
30G04865HLC8
3 x 9 mm Philips Round Head Screw
4G04865HLC9 8.5 x 22 mm Flat Washer
2G04865HLC10
Lower Puck Catcher with Sensor Wires
2G04865HLC11 Red LED Goal
2G04865HLC12 Blue LED Goal
1G04865HLC13 Air Blower
28
32
4
16
8
2
2
4
1
1
2
1
1
1
1
3
3
1
G04865HLK1 Hardware Kit 1
G04865HLM1 Owner’s Manual 1
Part#
Description Qty Part# Description Qty
MODEL: G04865
C11 Red LED Goal
C4 Left LED Lights
C12 Blue LED Goal
C13 Air Blower
11
