Atomic G04865W - Assembly Step 1: Attach Legs to Cabinet

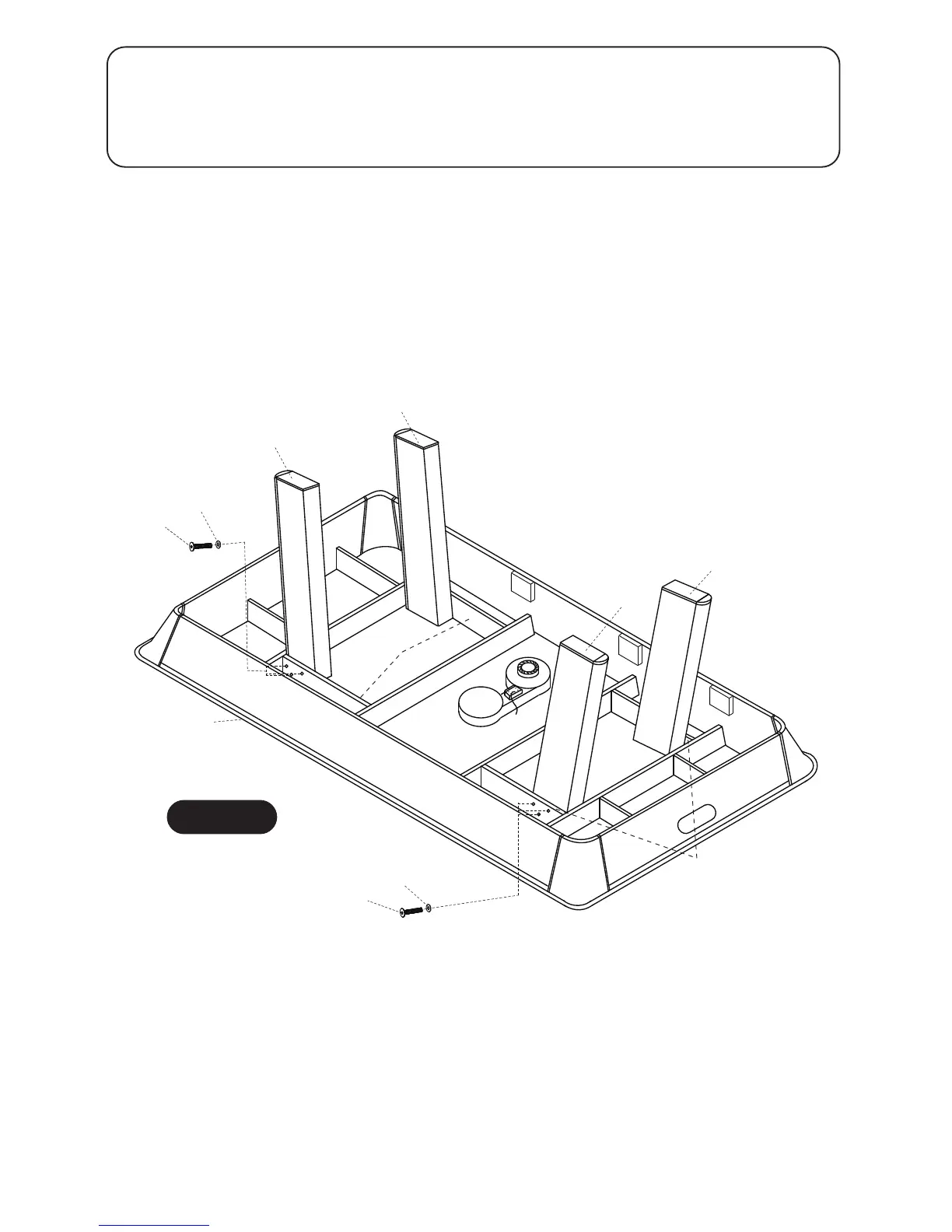

FIGURE 1
1 pc -
P1 Air Hockey Table Cabinet
Support
Beam
Support
Beam
NOTE:BE SURE LEFT LEGS(P2) AND RIGHT
LEGS(P3) ARE INSTALLED INSIDE OF
SUPPORT BEAMS AS PER DIAGRAM
5
STEP:1
Install Left Legs (P2) and Right Legs (P3) onto Air Hockey Table Cabinet (P1) with Allen
Head Bolts (H1) and Flat Washers (H2) using Allen Wrench (T1) as shown in FIGURE 1.
Do not tighten Bolts (H1) at this time.
.
PARTS REQUIRED:
H1 8 x 35mm Allen Head Bolt 12 pcs -
P2 Left Leg2 pcs - P3 Right Leg2 pcs -
H2 8.5 x 22mm Flat Washer12 pcs -
T1 Allen Wrench1 pc -
H1
H2
H1
H2
P2
P2
P1
P3
P3
Leave Air Hockey Table Cabinet (P1) face down in carton to assemble.
