Atomic G04865W - Assembly Step 2: Install Leg Support Panels

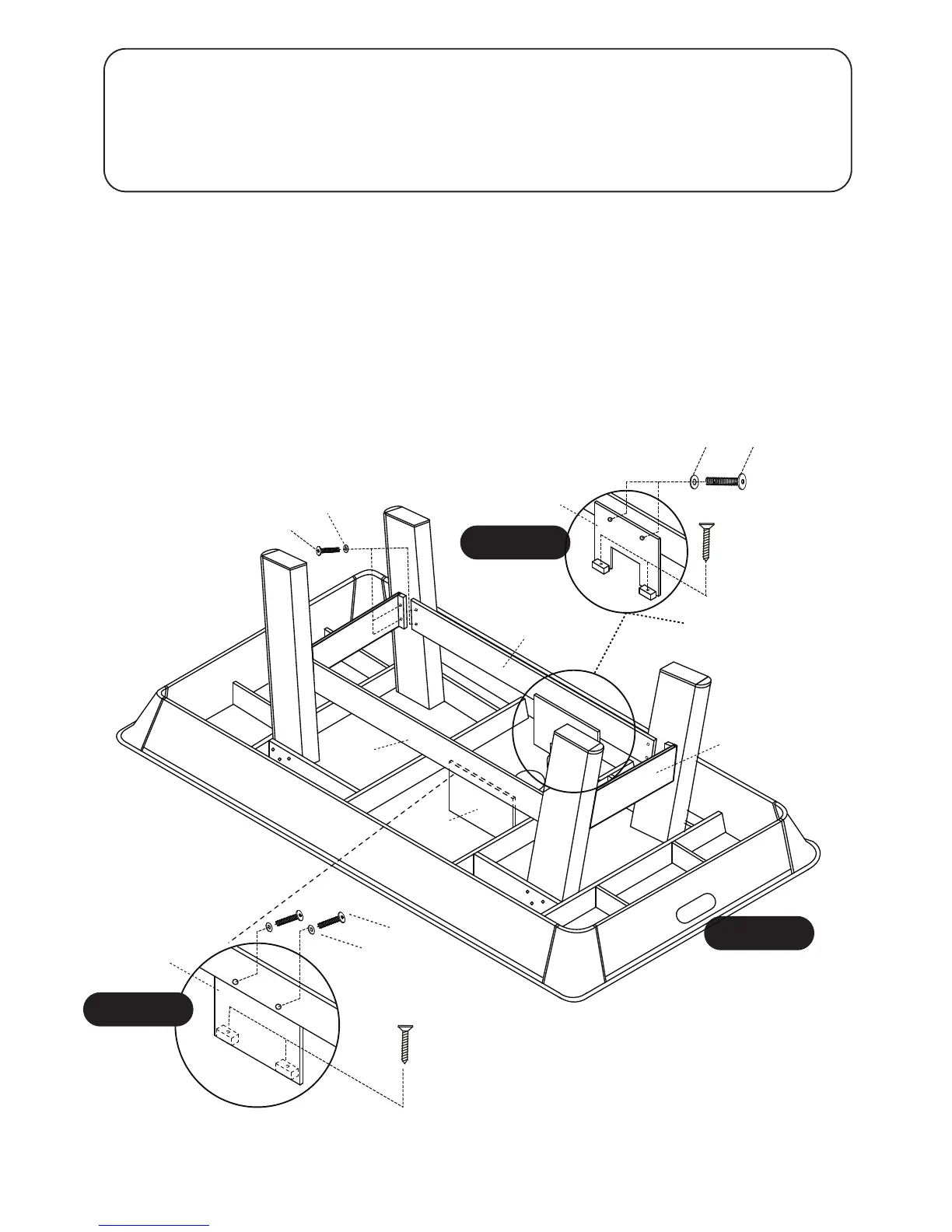

FIGURE 2
6
STEP:2
Install End Leg Panels (P7) and Side Leg Panels (P8) onto the Legs using Bolts (H1) and Flat
Washers (H2) as shown in FIGURE 2
Next, install Side Leg Support Board A (P9) and Side Leg Support Board B (P10) onto inside of
Side Leg Panels (P8) with Bolts (H3) and Flat Washers (H2) using Allen Wrench (T1) as shown
in DETAIL A and DETAIL B.
Next, screw Side Leg Support Board A (P9) and Side Leg Support Board B (P10) to Air Hockey
Table Cabinet (P1) using Screws (H4) as shown in DETAIL A and DETAIL B.
Do not strip out Screws(H4).
Tighten Bolts(H1) from Step 1 at this time.
PARTS REQUIRED:
H1 8 x 35mm Allen Head Bolt 16 pcs -
H4 4 x 45mm Philips Flat Head Screw4 pcs - P7 End Leg Panel2 pcs -
P8 Side Leg Panel2 pcs -
H2 8.5 x 22mm Flat Washer20 pcs -
H3 8 X 28mm Allen Head Bolt
Side Leg Support Board A Side Leg Support Board B
4 pcs -
P91 pc -
P101 pc -
H2
H3
H4
P10
H4
DETAIL B
DETAIL A
H1
H2
H3
H2
P7
P8
P9
P10
P7
P8
NOTE:Side Leg Support Board A(P9) and
Side Leg Support Board B(P10) must fit
inside of Side Leg Panels(P8)
NOTE:This Side Leg
Support Board will
straddle the Air
Blower Fan.
