STEP 12:
With the help of another adult, hold the table in this position to install P13 L-Frame Locks to each (2) leg assembly.
Place H5 Washer on H8 Bolt, insert bolt and washer upward through leg assembly, through H5 Washer, through P13
L-Frame Lock, through H5 Washer, and finally thread into bottom side of P12 End Top Rail as shown in FIGURE 12.
IMPORTANT NOTE: DO NOT OVERTIGHTEN H8 BOLTS AS P13 L-FRAME LOCKS MUST BE FREE TO PIVOT.
Repeat with other legs.
Next, Secure the P12 End Top Rail using H17 Screws as shown in FIGURE 12.
Important Note: Be careful not to strip these screws. All H17 Screws must be tight - but not stripped.
Repeat this procedure on other leg assembly.
PARTS REQUIRED
12 pcs - H5 Flat Washer 12 pcs - H17 Phillips Flat Head Screw 4 pcs - P13 L-Frame Lock
4 pcs - H8 Hex Head Bolt 2 pcs - P12 End Top Rail 1 pc - T1 Wrench
11
© 2013 Escalade Sports
For Customer Service Call 1-886-996-2729
All Right Reserved.
CAUTION! PINCH POINTS
ROTATE TABLE ONLY WITH
ADULT SUPERVISION

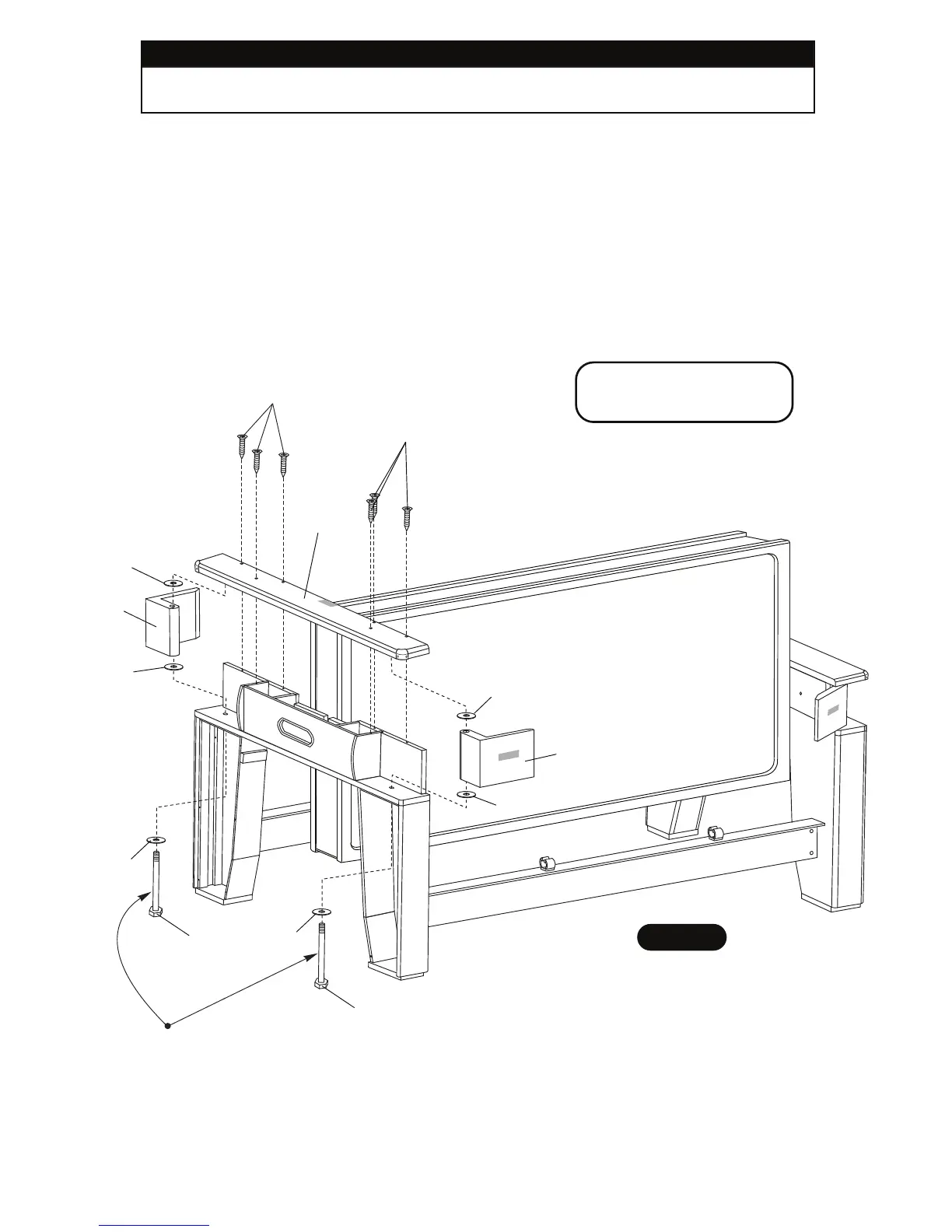

FIGURE 12
ATOMIC
H8
H8
H5
H5
H5
H5
P13
P13
H5
H5
P12
H17
H17
IMPORTANT NOTE:
DO NOT OVERTIGHTEN H8 BOLTS
AS P13 L-FRAME LOCKS MUST
BE FREE TO PIVOT.
