Atomic G05214W - Page 13

STEP 14:
Attach P16 Ball Storage Trays at each table end using H3 Screws as shown in FIGURE 14.
Important Note: Please install P16 Ball Storage Trays so the bottom pre-drilled holes for P20 Triangle Holder
face the inside of the tableas shown in DETAIL B.
Attach one P20 Triangle Holder on bottom side of P16 Ball Storage Tray using pre-drilled holes with H15 Screws as
shown in FIGURE 14 and DETAIL B.
Important Note: Be careful not to strip these screws. All H9 Screws must be tight - but not stripped.
PARTS REQUIRED
8 pcs - H3 Phillips Washer Head Screw 2 pcs - P16 Ball Storage Tray
2 pcs - H15 Phillipls Round Head Screw 1 pc - P20 Triangle Holder
13
© 2013 Escalade Sports
For Customer Service Call 1-886-996-2729
All Right Reserved.

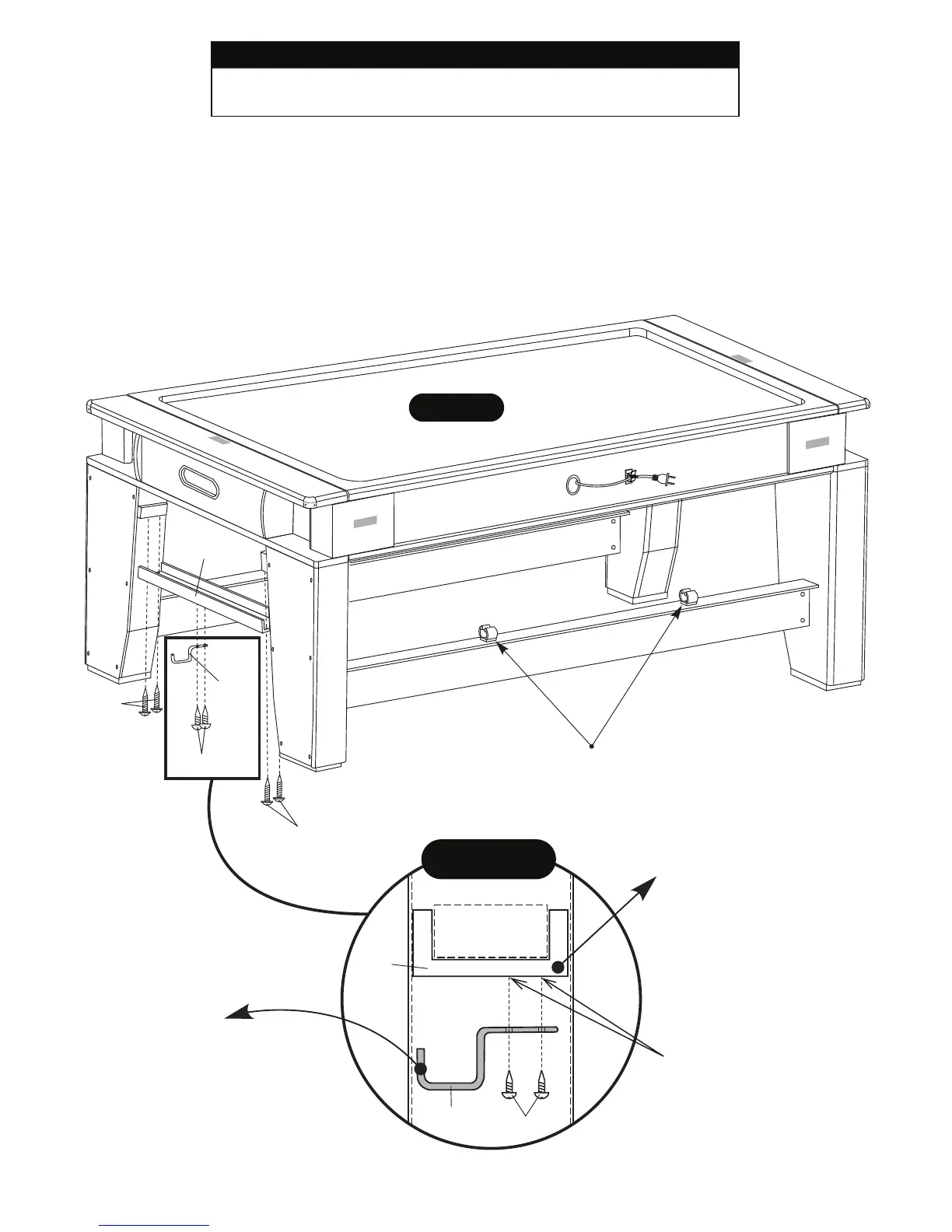

FIGURE 14
ATOMIC
P16
P20
H15
H3
H3
Note: Cue Stick
Storage Clips.
DETAIL B
H15
P20
P16
IMPORTANT NOTE:
Please install P20 Triangle Holder
back far enough on bottom of P16
Ball Storage Tray so it can not be
a trip hazard.
IMPORTANT NOTE:
Please install P16 Ball Storage
Trays so the bottom pre-drilled
holes for P20 Triangle Holder
face the inside of the table.
Pre-Drilled Pilot Holes
