Atomic MRZ - Lateral Shock Dampers Assembly

MRZ V1.1 Instruction Manual
Version 1.0 (01-FEB-2022)
10
○

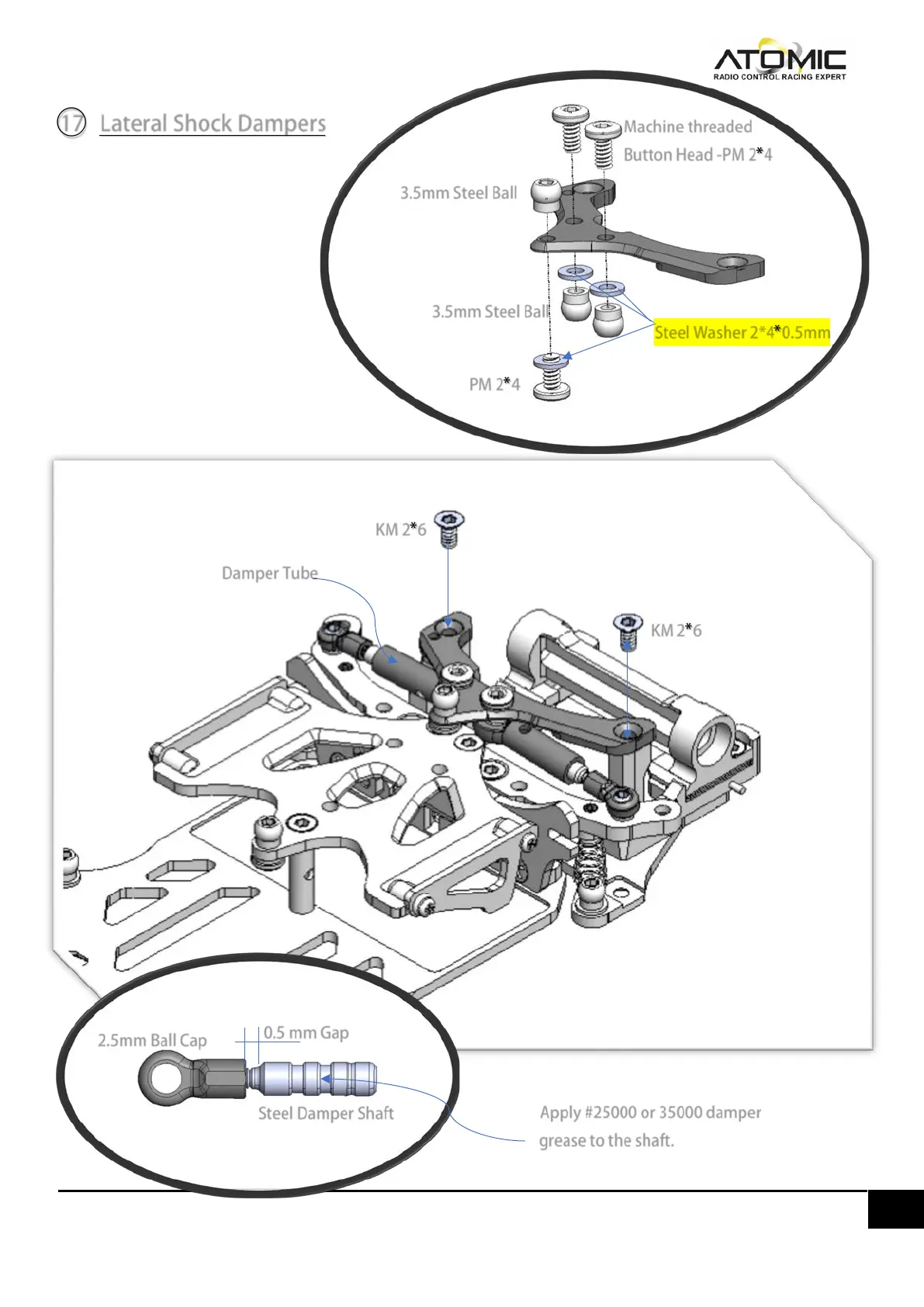

17 Lateral Shock Dampers
Machine threaded
Button Head -PM 2*4
Steel Washer 2*4*0.5mm
3.5mm Steel Ball
3.5mm Steel Ball
KM 2*6
KM 2*6
2.5mm Ball Cap
Steel Damper Shaft
0.5 mm Gap
Damper Tube
Apply #25000 or 35000 damper
grease to the shaft.
PM 2*4
