Atomic MRZ - Upper Arms Assembly

MRZ V1.1 Instruction Manual
Version 1.0 (01-FEB-2022)
17
○

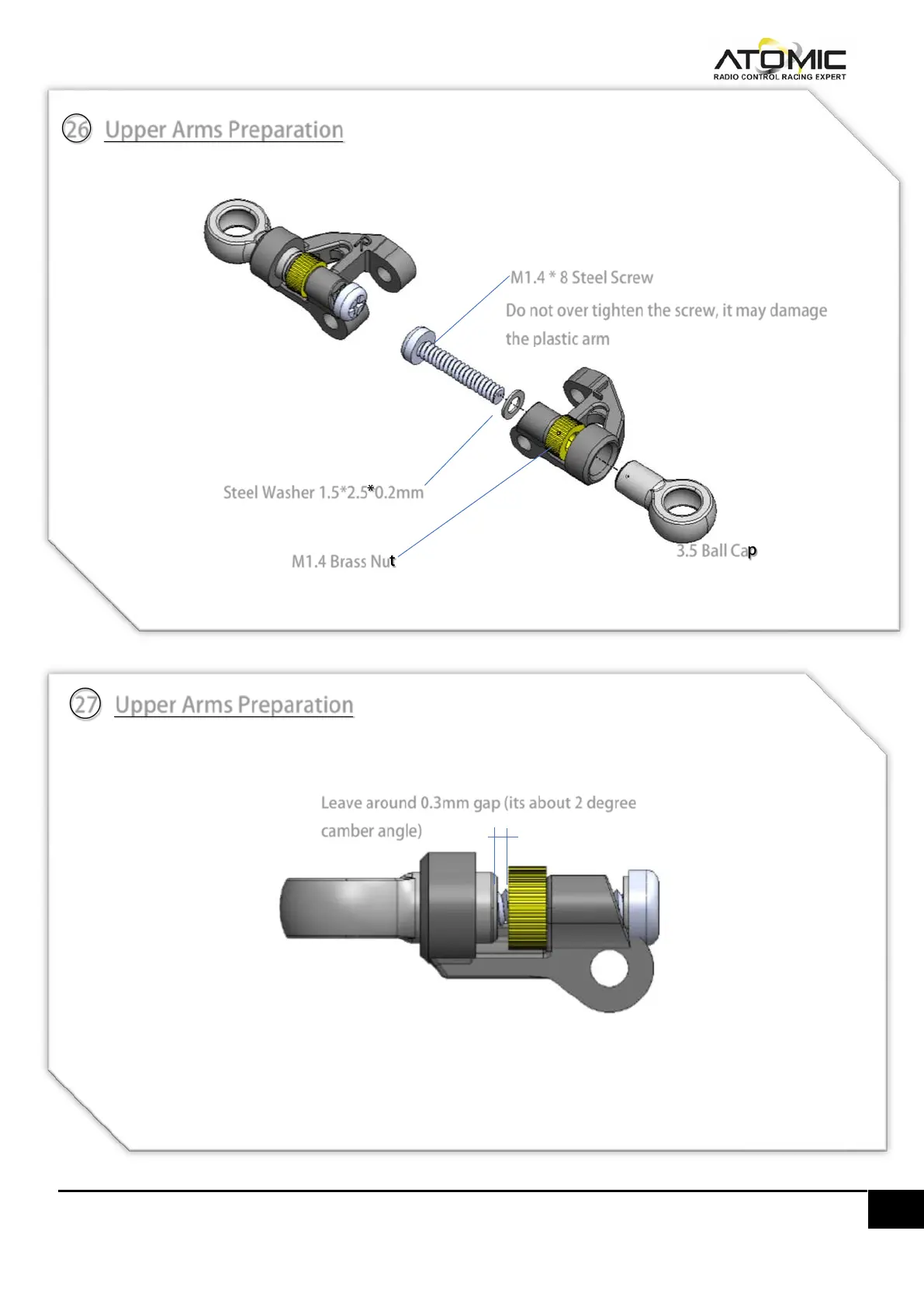

26 Upper Arms Preparation
Steel Washer 1.5*2.5*0.2mm
M1.4 * 8 Steel Screw
M1.4 Brass Nut
Leave around 0.3mm gap (its about 2 degree
camber angle)
Do not over tighten the screw, it may damage
the plastic arm
3.5 Ball Cap
○
27 Upper Arms Preparation
