Atomic MRZ - Steering Crank Installation; Steering Linkages Assembly

MRZ V1.1 Instruction Manual
Version 1.0 (01-FEB-2022)
19
YouTube Scan this QR Code to see how to make the ball link Smooth and no wobble.
https://www.youtube.com/watch?feature=youtu.be&v=RMhkoIUS_og
○

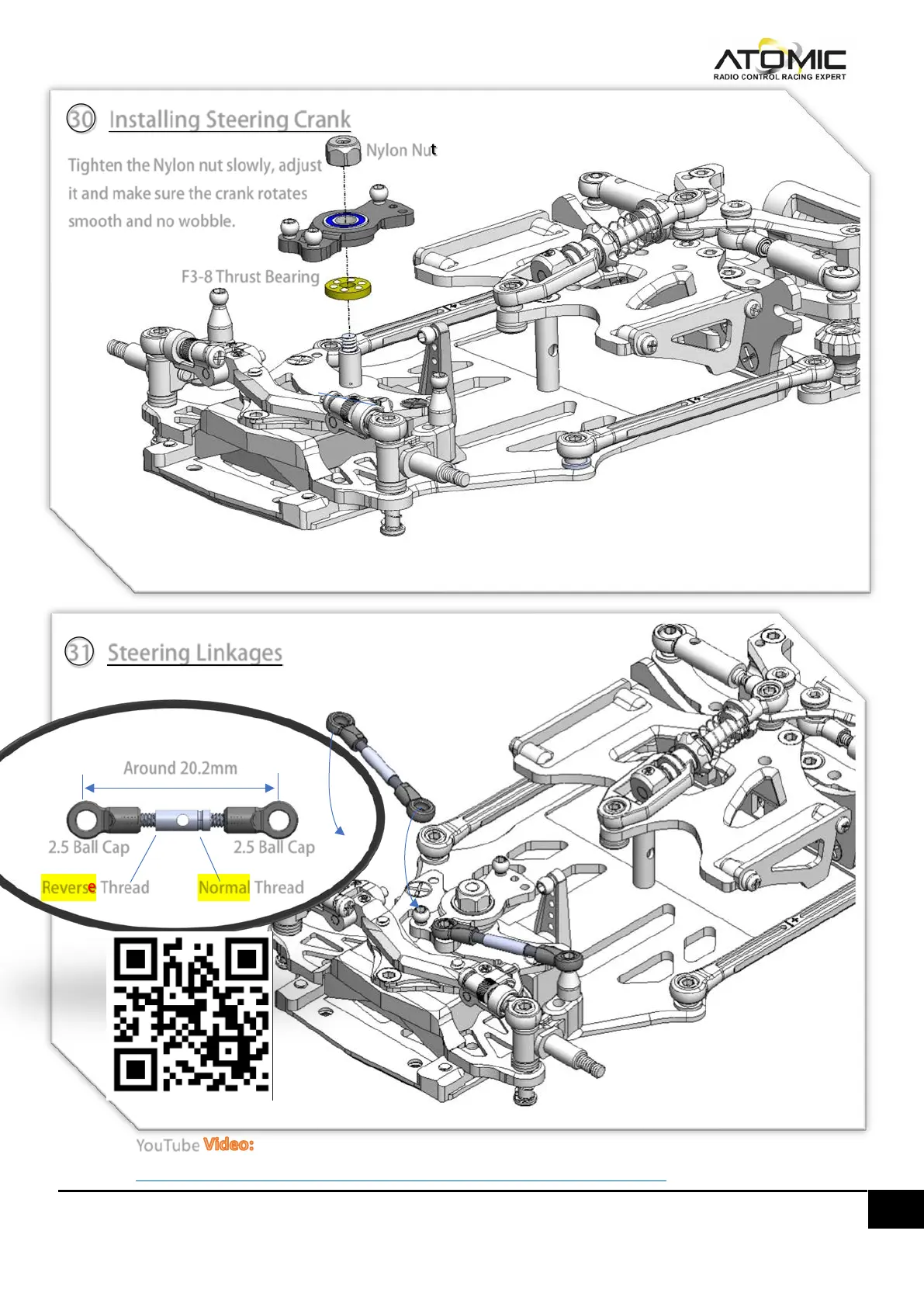

30 Installing Steering Crank
Nylon Nut
F3-8 Thrust Bearing
Tighten the Nylon nut slowly, adjust
it and make sure the crank rotates
smooth and no wobble.
○
31 Steering Linkages
Around 20.2mm
2.5 Ball Cap
2.5 Ball Cap
Normal Thread Reverse Thread
