Atomic MRZ - Chassis Center Pivot Assembly

MRZ V1.1 Instruction Manual
Version 1.0 (01-FEB-2022)
2
Flat Head Machine Thread
(KM 2*4)
Steel Washer 2*4*0.5mm
3.5mm Steel Ball
Motor Plate
Aluminium Pivot Ball Mount (Rear)
○
02 Chassis Center Pivot
Steel Washer 2*4*0.5mm
3.5mm Steel Ball
KM 2*4
Main Chassis Plate
Pivot Base
○

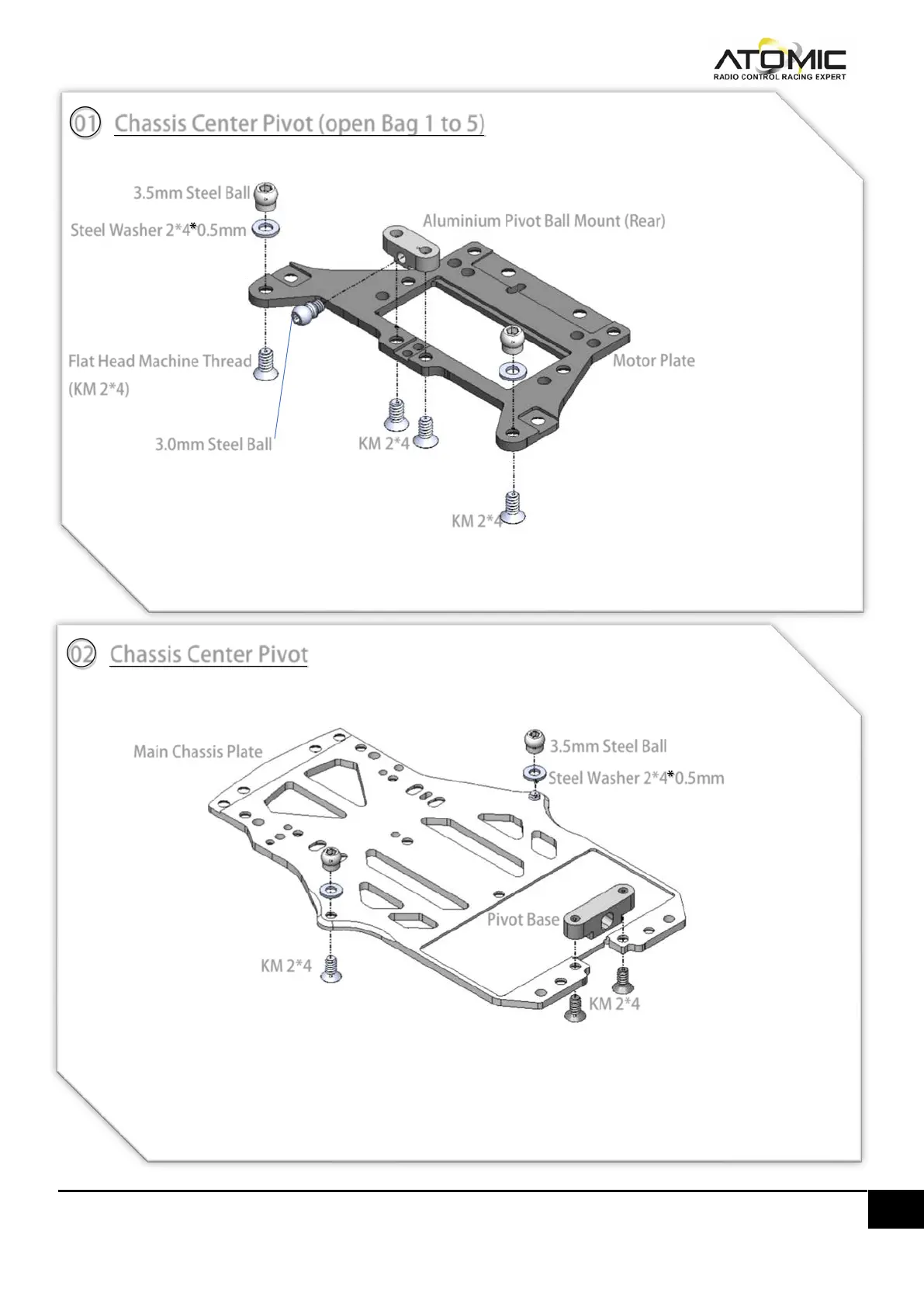

01 Chassis Center Pivot (open Bag 1 to 5)
KM 2*4
KM 2*4
KM 2*4
3.0mm Steel Ball
