MRZ Instruction Manual
Version 1.1 (25-01-2020)
Before install the springs, fully compress them
few times, to run-in (warm up). This makes sure
spring to show the true elasticity. Fail to do this
step, the rear grip of car will be decreased.
○

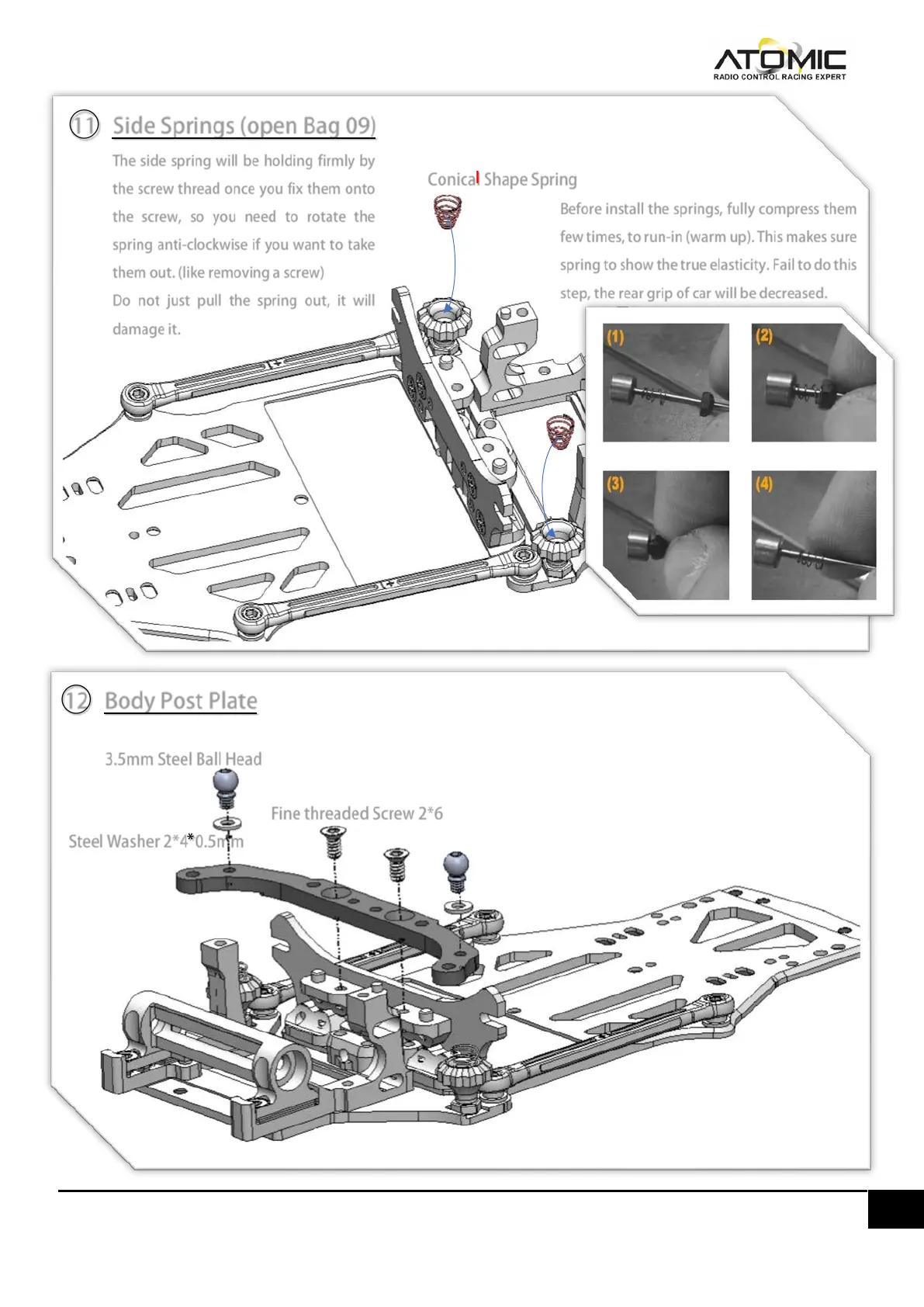

11 Side Springs (open Bag 09)
Conical Shape Spring
The side spring will be holding firmly by
the screw thread once you fix them onto
the screw, so you need to rotate the
spring anti-clockwise if you want to take
them out. (like removing a screw)
Do not just pull the spring out, it will
damage it.
○
12 Body Post Plate
Steel Washer 2*4*0.5mm
3.5mm Steel Ball Head
Fine threaded Screw 2*6
To Next Page
