a. RJ45 Ethernet Port
1Gbe Ethernet for a high-speed robust hardwired network
connection.
b. RF Antenna Connector
Connect the supplied RF antenna for Timecode sync
functionality.
c. Tally Light
Red Tally light on the rear of the unit indicates active
recording.
d. SDI Connector
The SDI input connector is 12G compliant and
backwards compatible.
e. WiFi Antennas
Connect the two supplied WiFi antennas in this position.
Wi-Fi 6 provides high performance wireless connection
and mobile hotspot support for connection
f. Battery Slot
Attach NP-F / L-Series batteries or a Battery Eliminator to
supply power.
g. Battery Release
Press and slide an attached power source away from the
unit to remove it.
h. Thumb screws
Use the provided thumb screws to securely attach the
CONNECT to the left side of your NINJA V / V+.
WARNING - Take care not to overtighten
the thumb screws.
WARNING - Master Caddy II does not t into
the NINJA V/NINJA V+ media slot when
ATOMOS CONNECT is attached.

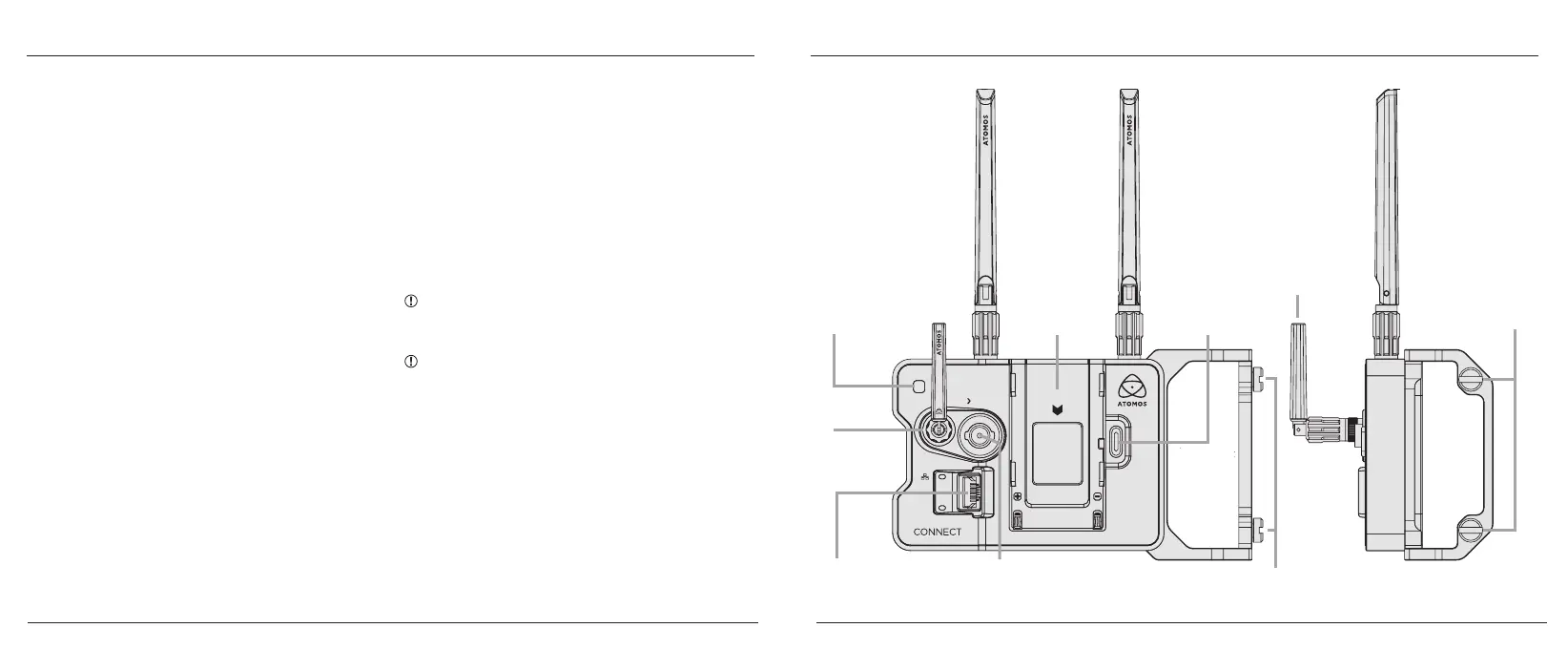

Physical features Physical features
IN 12G
c. Tally light
g. Battery release
b. RF Antenna
Connector
RF Antenna
d. SDI Connectora. RJ45 Ethernet Port
f. Battery Slot
h. Thumbscrews
h. Thumbscrews
e.WiFi Antennas
