4
Installation Guide

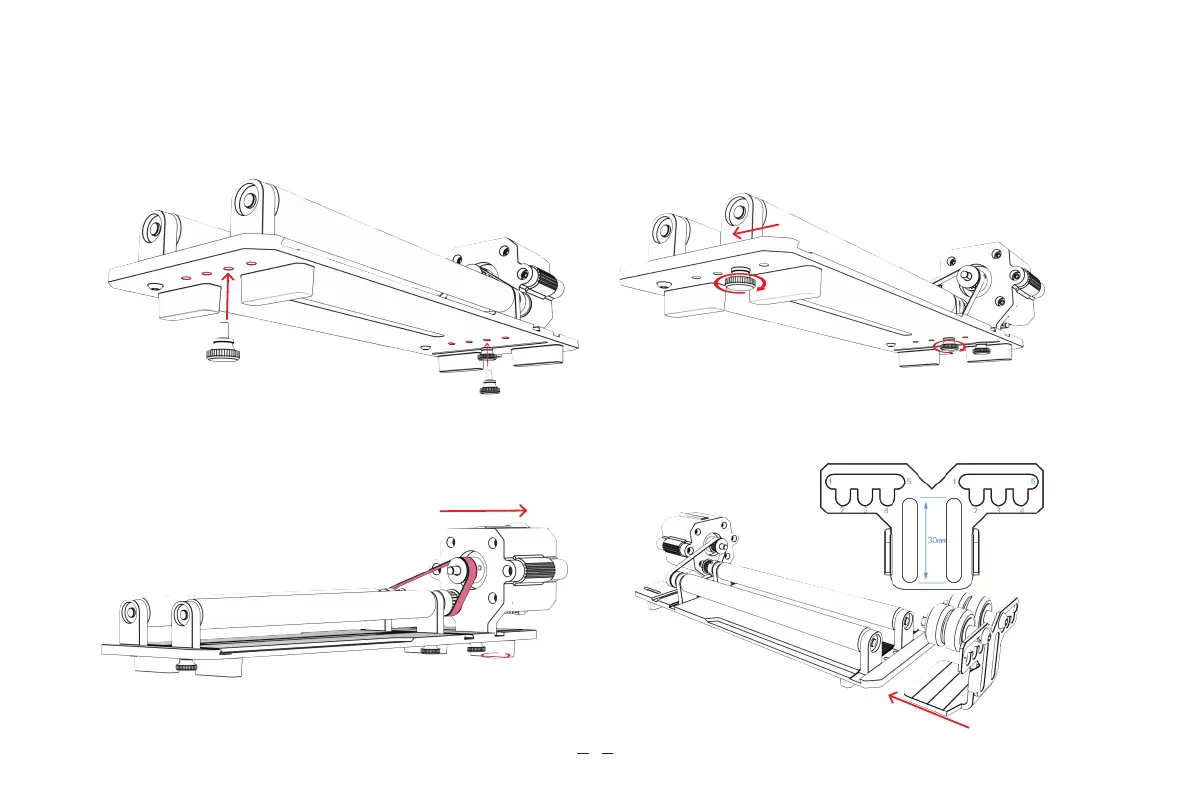

Step 4: Adjust Gear
3.1 Select dierent gears according to the engraved items.
3.3 Move the motor to tighten the belt and tighten the screws at
the bottom of the motor.
3.4 Adjust the bracket installation: choose dierent gears according to the
engraved special-shaped items, and move the bracket to a suitable position.
3.2 Move the roller to the appropriate gear and tighten the screw.
1
3
2
4
To Next Page
