Atosa CTD-3 - Technical Service Information

9
Technical Service Information

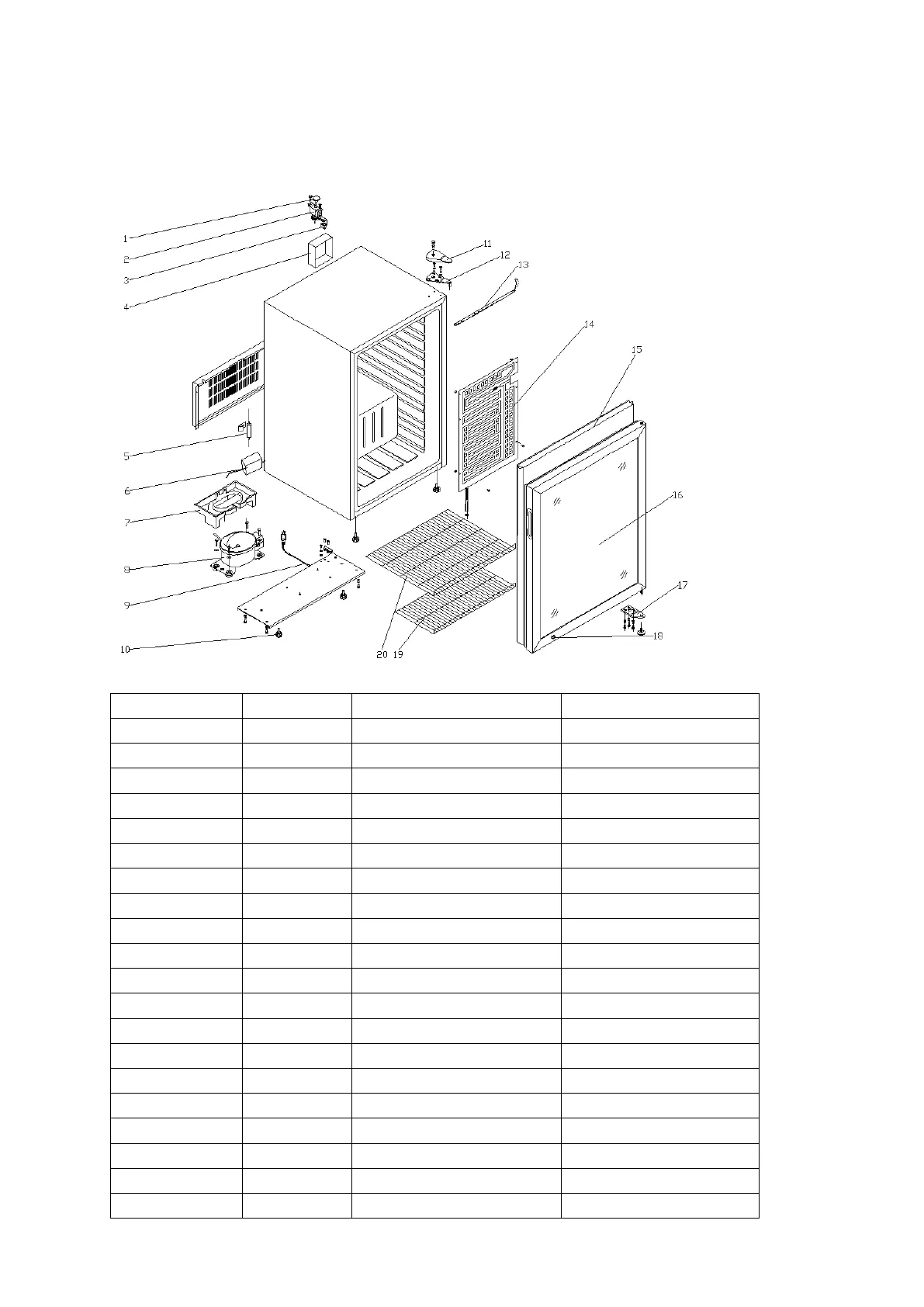

--Exploded view of CTD-3
--Part list of CTD-3
No in explode view
Part number
Description
Qty.
1
CTD001
Thermostat knob
1
2
CTD002
Thermostat （WP1）
1
3
CTD003
ON/OFF button
1
4
CTD004
Temperature control box
1
5
CTD005
Filter（∅16 ∗ 30）
1
6
CTD006
Constant current power supply
1 AC85v-265v-15D
7
CTD007
Water receiving plate
1
8
CTD008
Compressor（UKN43YA）
1
9
CTD009
Power line （JT-3）
1
10
CTD010
Base foot
4
11
CTD011
Hinge cover
1
12
CTD012
Hinge upper
1
13
CTD013
Led lamp
1
14
CTD014
Evaporimeter
1
15
CTD015
Door seal
1
16
CTD016
Door
1
17
CTD017
Hinge down
1
18
CTD018
Lock
1
19
CTD019
Shelf bottom
1
20
CTD020
Shelf top
2
