4 OTHER CONFIGURATION
4.1 LAN CONFIGURATION
Configuration of Modem’s IP address and password
4.1.1 CONFIGURATION OF MODEM’S IP ADDRESS
As a network device, ADSL Modem has its own IP address and MAC address. The factory sets the
MODEM, at a default IP address of 192.168.1.1 and subnet mask of 255.255.255.0. The user can configure
these addresses through the “LAN” on “Configuration” like this:
For example, change IP address to “10.10.10.10”. Click ”LAN”, input “IP address”: 10.10.10.10, then
“subnet mask”: 255.0.0.0, the result is as Figure4.1, press “save”.

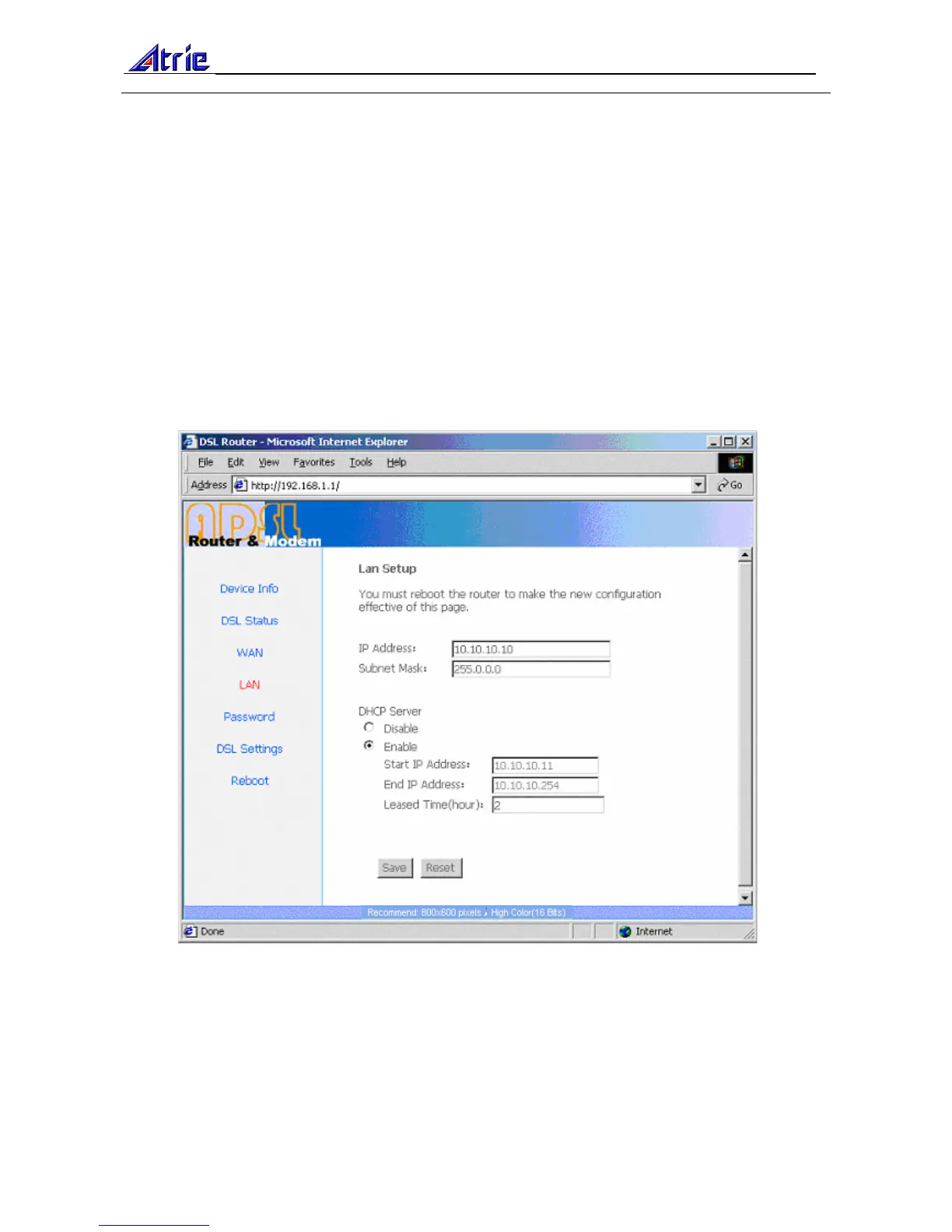

Figure 4.1
Note
：
If you change IP address, it will take effect immediately. You must use the new IP address to login.
4.1.2 DHCP CONFIGURATION
• click“LAN ”
• click“DHCP server”；
