3
ASSEMBLY INSTRUCTIONS

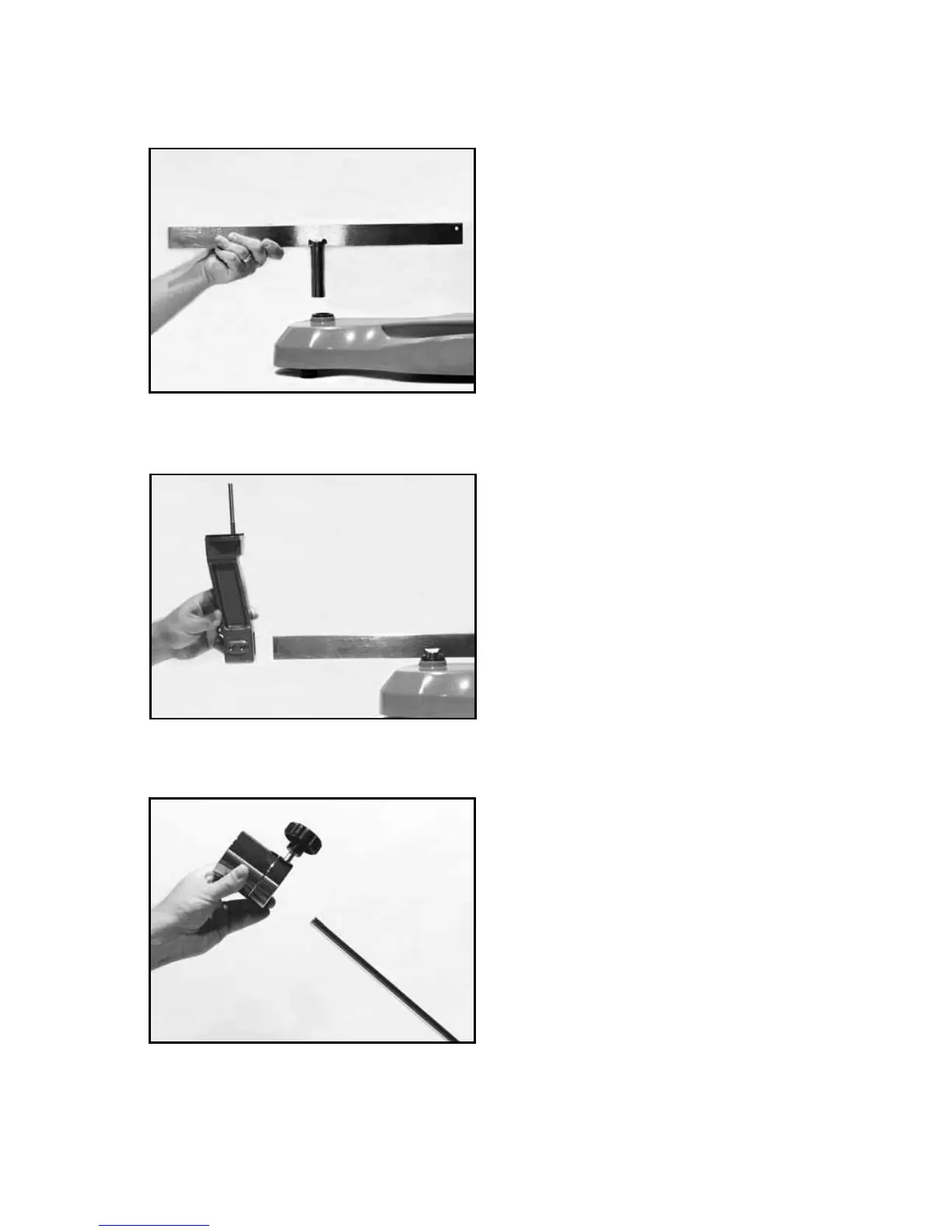

Installing the Turntable
Insert the turntable center post into the bush-
ing assembly of the machine base.
Installing the Support Posts
Slide each support post onto the end of the
turntable bar. The posts should be oriented
so as to angle away from the turntable
center post.
Installing the Drop Weight
Remove the end cap from the tension bar and
slide the drop weight onto the bar. The weight
should be oriented with the knob end closest
to the string winder. Replace the end cap.
