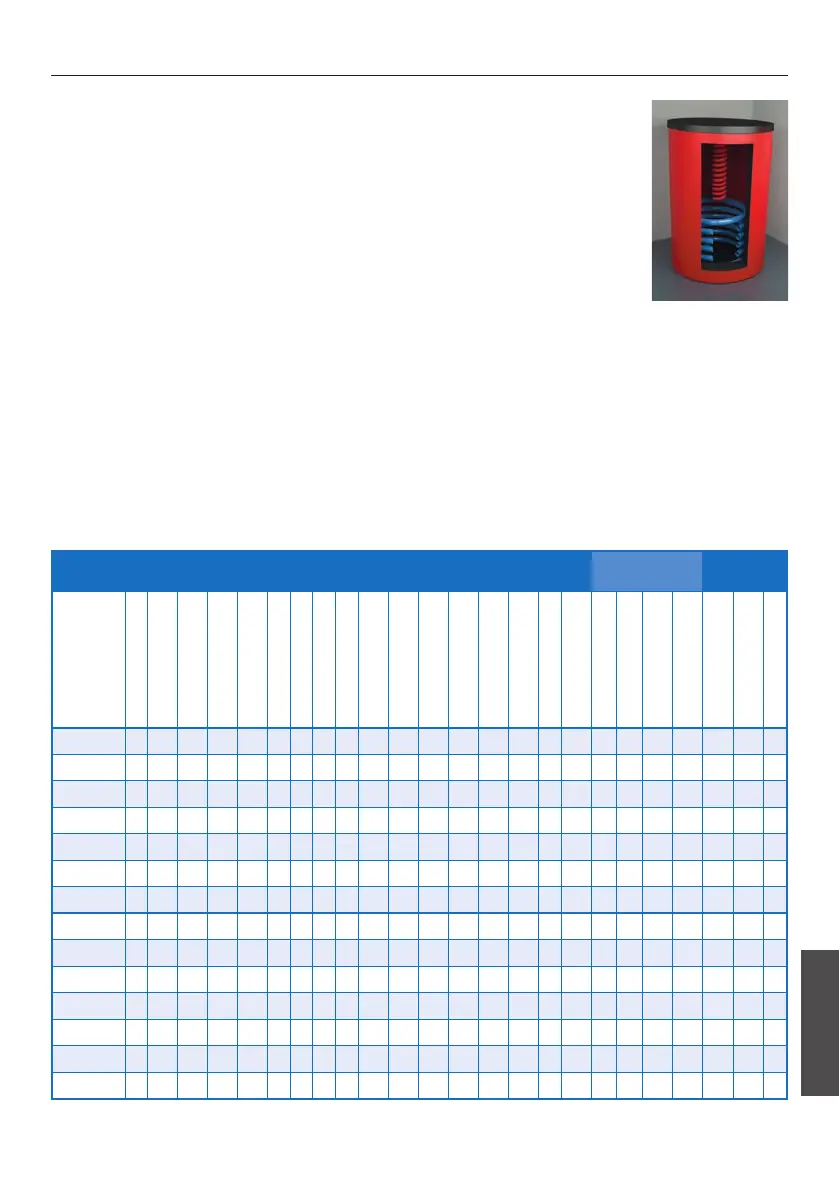

ACCUMULATION TANKS
EN
DESCRIPTION
The accumulation tanks ATTACK TUV, TUVS are made from aquality steel and
they serve for accumulation of the heating water as well as for the D.H.W. pre-
paration in awater coil. The ATTACK TUVS model is accessorized with an extra
exchanger for connection to the solar system.
ATTACK TUV: 9× socket G1 ½", 5× socket G½", 2× socket G1" – D.H.W.
ATTACK TUVS: 9× socket G1 ½", 5× socket G½", 2× socket G1" – solar circuit,
2× socket G1 ¼" – D.H.W.
KEY FOR THE ACCUMULATION TANKS
1 – Flow connection - boiler . . . . . . . . . . . . . 1 ½"
2 – Freely disposable . . . . . . . . . . . . . . . . . . 1 ½"
3 – Electrical heating coil (EL) . . . . . . . . . . . . 1 ½"
4 – Freely disposable . . . . . . . . . . . . . . . . . . 1 ½"
5 – Return connection – heating circuit . . . . . . 1 ½"
6 – Flow connection – heating circuit (radiators) . 1 ½"
7 – Flow connection – heating circuit (oor) . . . 1 ½"
8 – Return connection – gas, oil or pellet boiler . 1 ½"
9 – Return connection – wood boiler . . . . . . . 1 ½"
10 – Sensor of solar system or heating . . . . . . . ½"
AS – Flow connection of solar system . . . . . . . . 1"
RS – Return connection of solar system . . . . . . . 1"
D1 – Diameter without insulation
D2 – Diameter with insulation
AF – Cold drinking water . . . . . . . . . . . . . . . 1 ¼"
AC – Domestic hot water . . . . . . . . . . . . . . . 1 ¼"
TECHNICAL PARAMETERS
Tank
Solar
exchanger
Tank
Type
Energy eciency class
Position 1–6
Position 2–7
Position 3 (EL)
L – max. length of the
electric heating body
Position 4–8
Position 5–9
Position RS
Position AS
∅ D1 – Diameter without
insulation
∅ D2 – Diameter with
insulation
Height
R – Slope dimension
without insulation
Mini. installation height
Max. operating tempera-
ture (°C)
Static loss (W)
Max. operating pressure
(bar)
Area of exchanger (m²)
Volume of exchanger (l)
Max. operating pressure
(bar)
Max. operatind tempera-
ture (°C)
Area of D.H.W. exchanger
(m²)
Volume (l)
Weight (kg)
TUV500K C
1405 1013 771 600 621 230 - - 650 850 1631 1717 1831 95
-
3 - - - -
6,25
474
183
TUV600K -
1515 1123 794 650 684 245 - - 700 900 1754 1841 1954 95
99
3 - - - -
6,25
605
194
TUV800K -
1545 1135 846 735 725 315 - - 790 990 1806 1898 2006 95
105
3 - - - -
6,25
713
209
TUV1000K -
1735 1255 1036 735 775 295 - - 790 990 1996 2081 2196 95
121
3 - - - -
6,25
891
218
TUV1250K -
1655 1175 988 880 695 285 - - 950 1150 1948 2064 2148 95
142
3 - - - -
6,25
1239
257
TUV1500K -
1755 1345 1072 920 820 375 - - 1000 1200 2032 2160 2232 95
161
3 - - - -
6,25
1420
298
TUV2000K -
1955 1408 1314 1000 862 315 - - 1100 1300 2274 2390 2474 95
188
3 - - - -
6,25
1960
333
TUVS500K C
1405 1013 771 600 621 230 230 710 650 850 1631 1717 1831 95
-
3 1,8 11,9 10 110
6,25
474
220
TUVS600K -
1515 1123 794 650 684 245 245 725 700 900 1754 1841 1954 95
99
3 1,8 11,9 10 110
6,25
605
232
TUVS800K -
1545 1135 846 735 725 315 315 725 790 990 1806 1898 2006 95
105
3 2,4 15,9 10 110
6,25
713
244
TUVS1000K -
1735 1255 1036 735 775 295 295 860 790 990 1996 2081 2196 95
121
3 3 19,8 10 110
6,25
891
274
TUVS1250K -
1655 1175 988 880 695 285 285 850 950 1150 1948 2064 2148 95
142
3 3 19,8 10 110
6,25
1239
313
TUVS1500K -
1755 1345 1072 920 820 375 375 895 1000 1200 2032 2160 2232 95
161
3 3,6 19,8 10 110
6,25
1420
362
TUVS2000K -
1955 1408 1314 1000 862 315 315 843 1100 1300 2274 2390 2474 95
188
3 4,2 23,7 10 110
6,25
1960
394
