ATTACK AK Series - Page 151

13
ACCUMULATION TANKS
EN

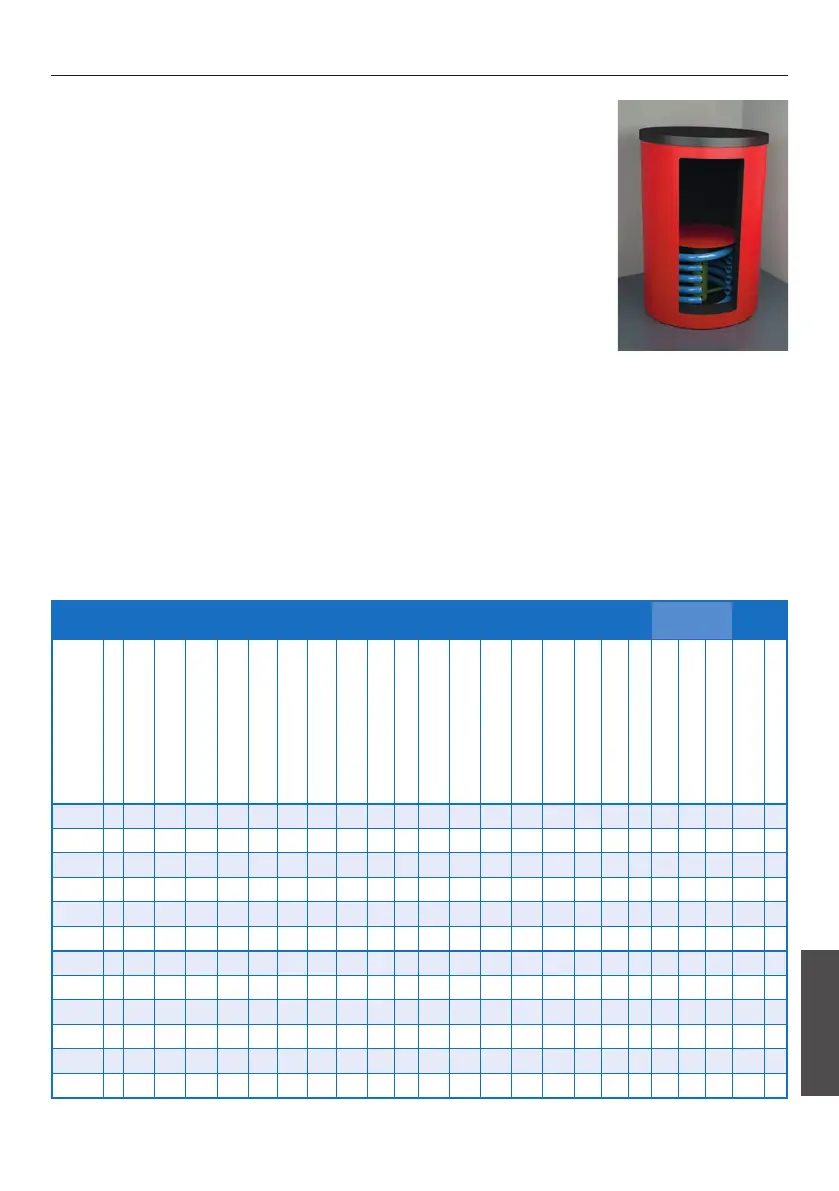

DESCRIPTION
ATTACK S– is based on the ATTACK AK type. Disk and stratied pipe in-
stalled in the exchanger enable creation of water layers according to the
temperature. This construction ensures dierent temperature layers at
the inlets and outlets.
ATTACK SS – is based on the ATTACK AS and the ATTACK Stypes. It is
accessorized with an extra exchanger for connection to the solar circuit.
ATTACK S: 10× socket G1 ½", 5× socket G½"
ATTACK SS: 10× socket G1 ½", 5× socket G½", 2× socket G1" – solar circuit
KEY FOR THE ACCUMULATION TANKS
1 – Flow connection – boiler . . . . . . . . . . . 1 ½"
2 – Freely disposable . . . . . . . . . . . . . . . . 1 ½"
3 – Electrical heating coil (EL) . . . . . . . . . . 1 ½"
4 – Freely disposable . . . . . . . . . . . . . . . . 1 ½"
5 – Return connection – heating circuit . . . . 1 ½"
6 – Flow connection – heating circuit (radiators) 1 ½"
7 – Flow connection – heating circuit (oor) . 1 ½"
8 – Return connection, gas, oil or pellet boiler 1 ½"
9 – Return connection – wood boiler . . . . . 1 ½"
10 – Sensor of solar system or heating . . . . . . ½"
AS – Flow connection of solar system . . . . . . . 1"
RS – Return connection of solar system . . . . . . 1"
SF – Upper solar sensor . . . . . . . . . . . . . . . . ½"
SU – Bottom solar sensor . . . . . . . . . . . . . . . ½"
D1 – Diameter without insulation
D2 – Diameter with insulation
TECHNICAL PARAMETERS
Tank
Solar
exchanger
Tank
Typ Energy eciency class Position 1–6 Position 2–7 Position 3 L – max. length of the electric heating body Position 4–8 Position 5–9 Position SU Position SF Position RS Position AS ∅ D1 – Diameter without insulation ∅ D2 – Diameter with insulation of 100 mm Height Height with insulation of 100 mm R – Slope dimension without insulation Max. operating temperature (°C) Static loss (W) Max. operating pressure (bar) Area of exchanger (m²) Volume of exchanger (l) Max. operating pressure (bar) Volume (l) Weight (kg)
S500K C 1405 1013 871 700 621 230 461 1209 - - 650 850 1680 1730 1698 95 - 3 - - - 488 102
S800K - 1545 1135 946 840 725 315 491 1340 - - 790 990 1842 1892 1898 95 105 3 - - - 713 132
S1000K - 1735 1255 1036 840 775 295 577 1495 - - 790 990 2031 2082 2081 95 121 3 - - - 891 141
S1250K - 1655 1175 988 1000 695 285 565 1415 - - 950 1150 1975 2025 2064 95 142 3 - - - 1239 186
S1500K - 1755 1345 1072 1050 820 375 653 1545 - - 1000 1200 2100 2150 2160 95 161 3 - - - 1420 232
S2000K - 1955 1408 1314 1150 862 315 685 1682 - - 1100 1300 2309 2356 2390 95 188 3 - - - 1960 330
SS500K C 1405 1013 871 700 621 230 461 1209 230 710 650 850 1680 1730 1698 95 - 3 1,8 11,9 10 488 139
SS800K - 1545 1135 946 840 725 315 491 1340 315 725 790 990 1842 1892 1898 95 105 3 2,4 15,9 10 713 173
SS1000K - 1735 1255 1036 840 775 295 577 1495 295 860 790 990 2031 2082 2081 95 121 3 3 19,8 10 891 197
SS1250K - 1655 1175 988 1000 695 285 565 1415 285 850 950 1150 1975 2025 2064 95 142 3 3 19,8 10 1239 243
SS1500K - 1755 1345 1072 1050 820 375 653 1545 375 895 1000 1200 2100 2150 2160 95 161 3 3,6 23,7 10 1420 296
SS2000K - 1955 1408 1314 1150 862 315 685 1682 315 665 1100 1300 2309 2356 2390 95 188 3 4,2 27,7 10 1960 330
