ATTACK PELLET Series - Terminals and connections, fuses

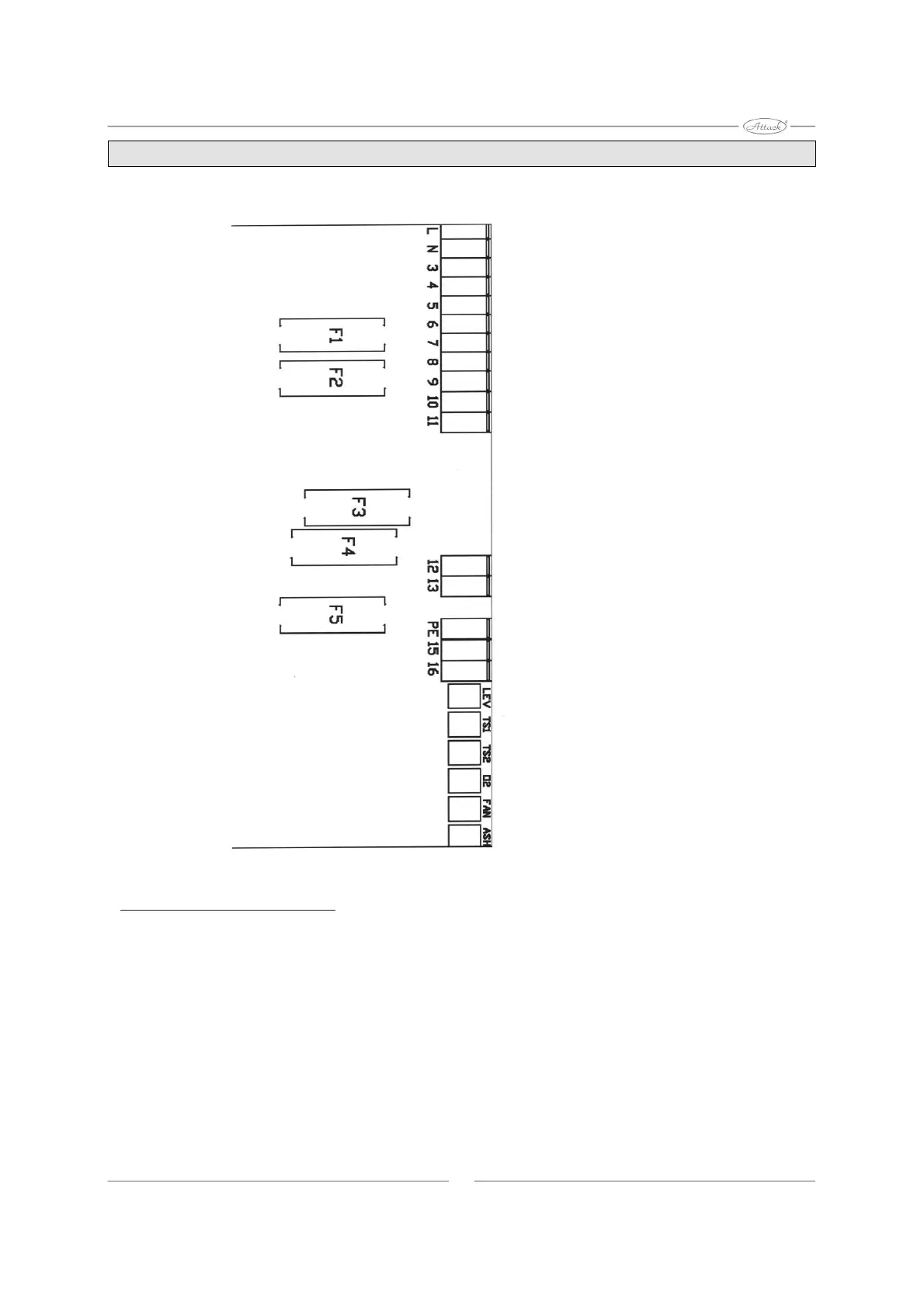

Terminals and connections, fuses
1.230 VAC Phase
2.230 VAC Neutral
3.230 VAC Phase termostatu
4.Fan Neutral
5.Fan Phase
6.Feeder Neutral
7. Phase
8.Ignition Neutral
9.Ignition Phase
19. Earthing
20. Photocell
21.
Temp. sensor
Fan sensor
Scraper circuit board
Feeder
Photocell
Placement and size of fuses
F1 = F800mAL250V for fan
F2 = F1AL250V for pellet feeder
F3 = T6.3AL250V for ignition
F4 = N/A
F5 = N/A
21
