Never move from one site to another with the engine running.
Please note the ATV – Flail Mower is not road legal, and should not be used on public
roadways
The main purpose of the anti-scalping roller is to prevent damage. If a wheel drops into a hole, or
there is uneven ground between the wheels, the roller takes the weight of the mower, avoiding the
flails scalping the ground; combined with the side skids the mower provides good protection to the
rotor.
The anti-scalping roller has the added advantage of-enabling kerb side grass to be cut with no
difficulty, by allowing the wheel to hang over the kerb edge.
The factor pre-set position of the anti-scalping roller and side skids are suitable for most situations.
However, if the mover is used in rough conditions or regularly in heavy crops, the roller and side skids
should be lowered, to increase the clearance between the flail and the ground when the roller comes
into use.
In circumstances where the mower is being used as a “Finishing Mower” and a striped appearance is
desired, the roller can be set down using the various hole positions to give the required cutting height,
then the wheels can be lifted clear of the ground.
B
A

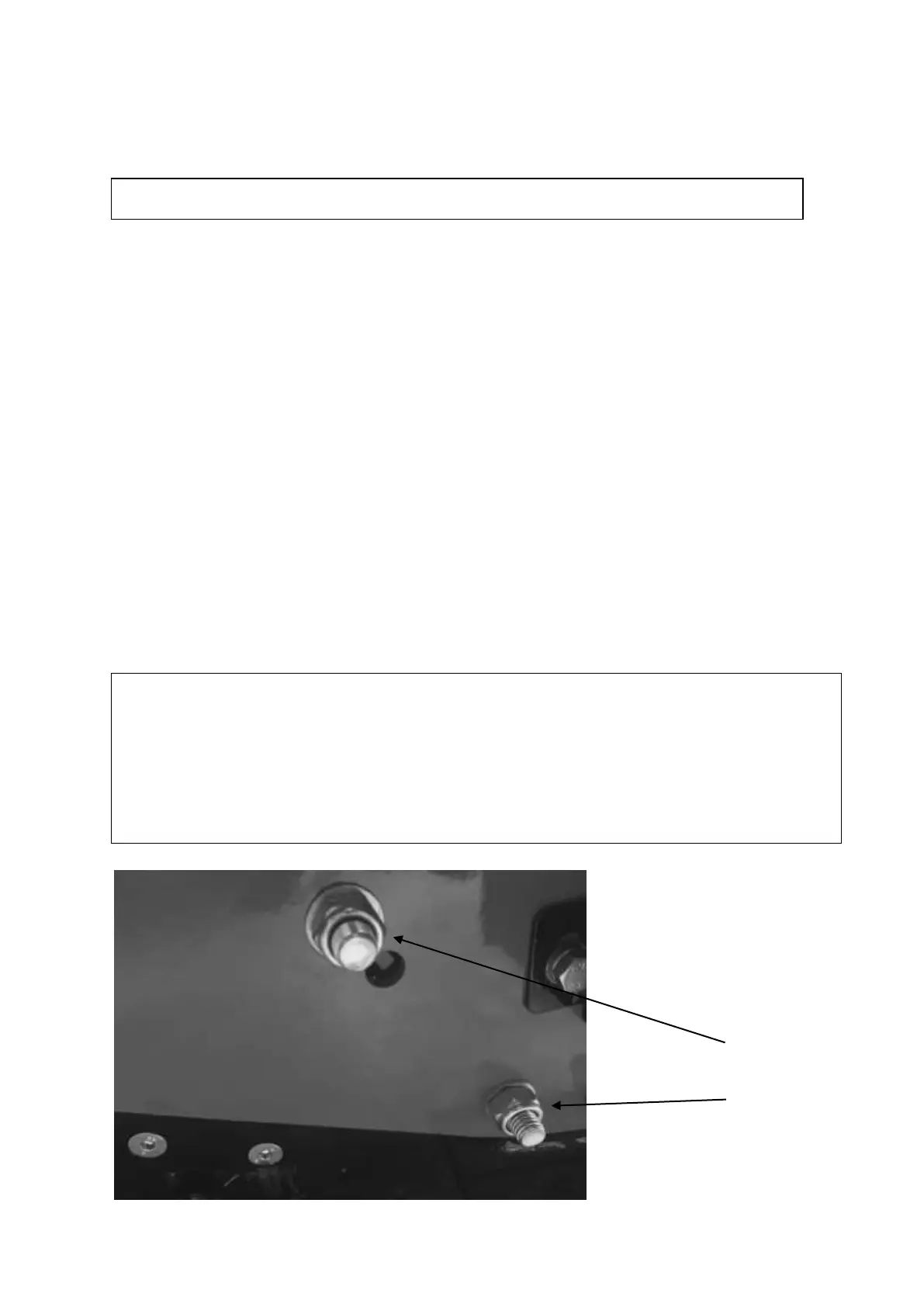

TO ADJUST THE ROLLER:
Slacken pivot bolt “A”. Slacken and remove bolt “B” (Repeat for both ends of the roller) Select
another hole and Replace bolt “B”. Tighten bolts “A” and “B” TO ADJUST THE SIDE SKIDS:
Remove the bolt at the Front of the skid and the rear of the skid (show as “C”) Select new setting,
replace the bolts and tighten. Repeat for the opposite skid; always ensure both skids are set to
