- 13 -
cable for controller has been tapped. Original blue cable has been placed onto the
piggyback connector.

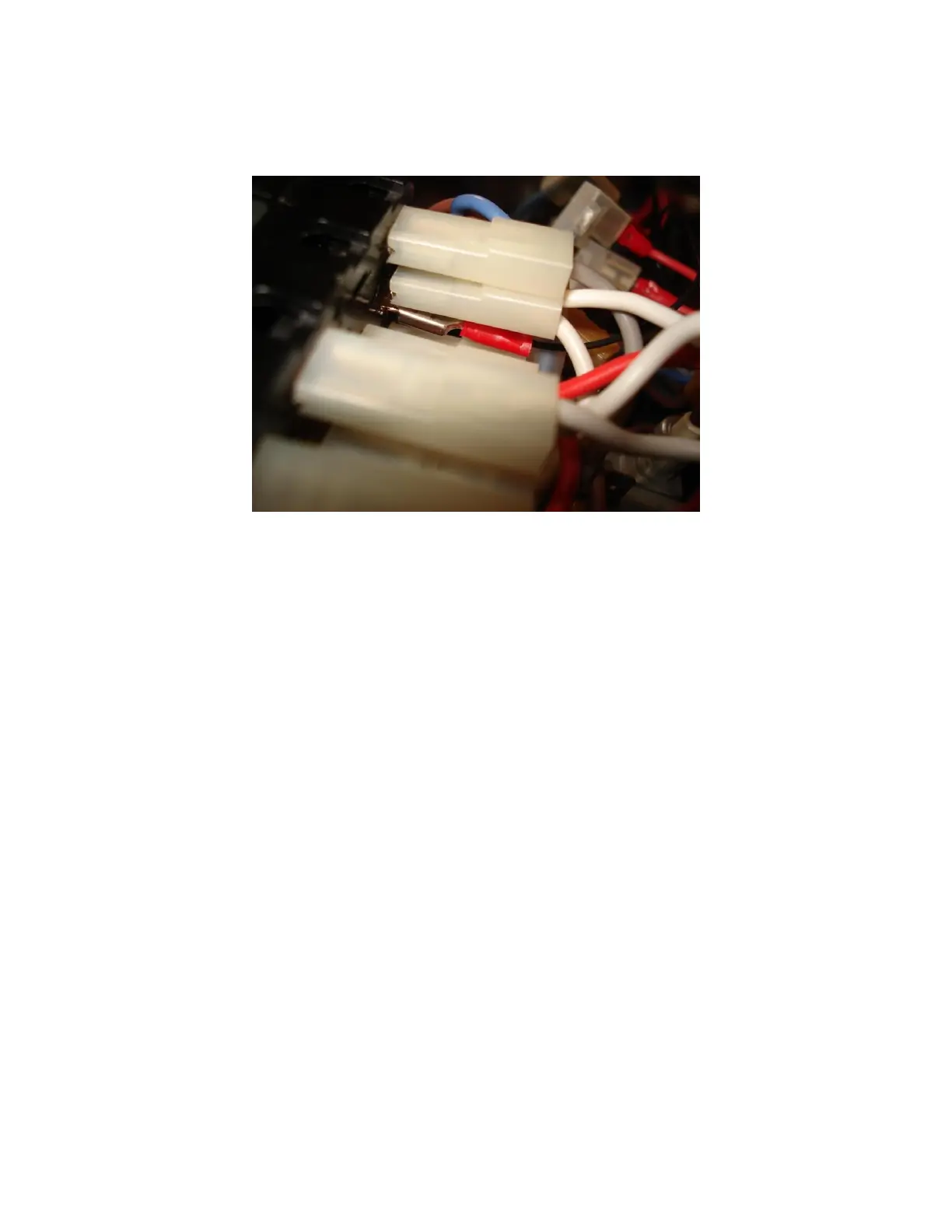

Fig 18b. Front wire tapping for new Gaggia Classic made after 2006. Tap the hot wire to
the center tab of the main power switch. This is the same as Fig 18a except the color of the
power wire is white instead of blue.
2) Tap the neutral wire to the back panel cable entrance. There are two cables at the
cable entrance (not including the ground wire on some of the three wire machines). One
of them goes to the top tab of the front power switch. The other cable goes to the thermal
fuse on the top of the boiler (the fuse is inside of the translucent silicone tubing clamped
on the top of the boiler. You need to tap the brown controller power cable to the cable
that is not going to the front main power switch.
