- 7 -

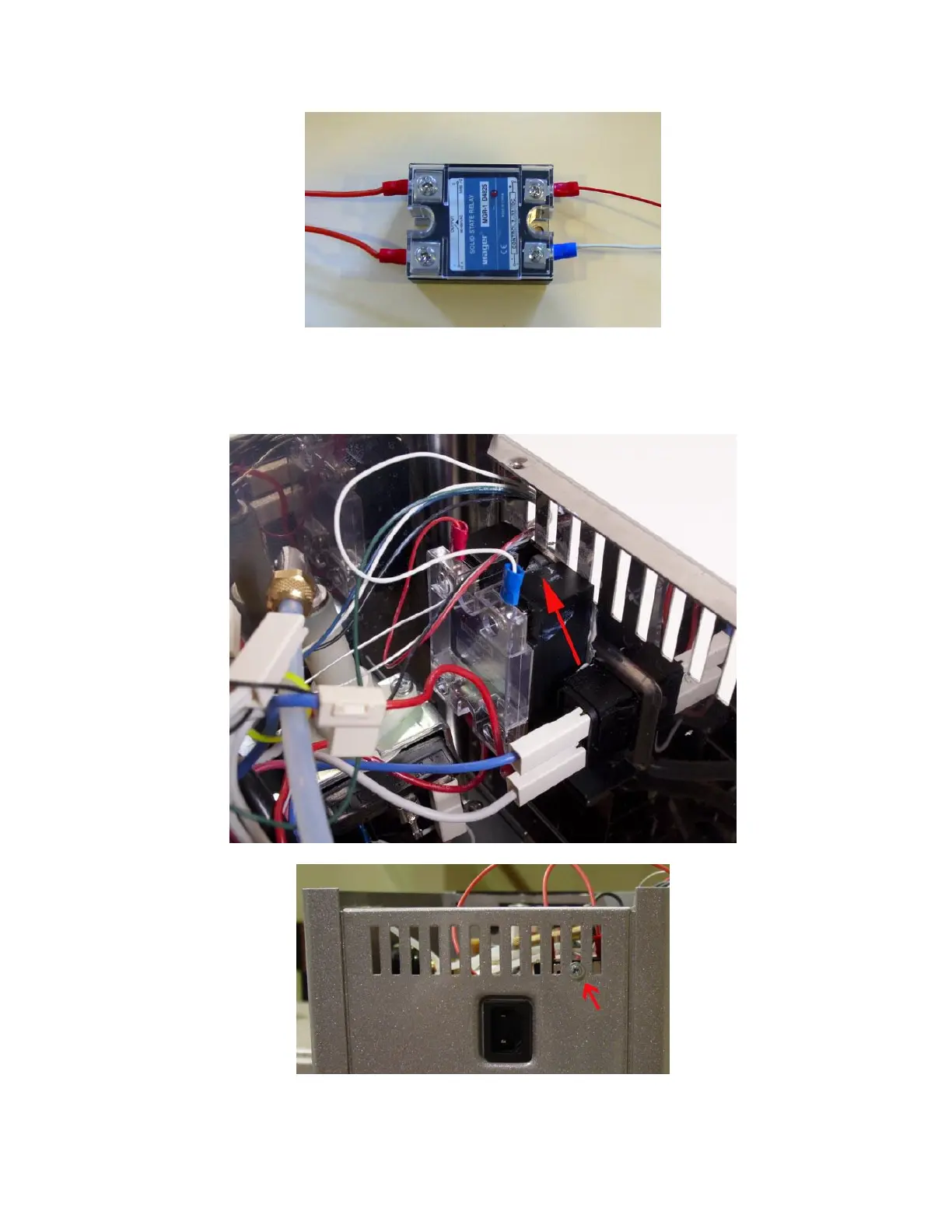

Fig 13. SSR wiring.
2) Apply the silicone heat transfer compound to the back metal surface of the SSR. Mount the
SSR to the left rear corner as shown in Fig 14. Use the M4 screw set supplied in the kit to
mount the SSR (please notice the orientation of SSR as shown in the following picture).
The M4 screw can be tightened with a 7 mm socket wrench.
Fig 14. Top: SSR installed. Bottom: Screw location for SSR mounting.
