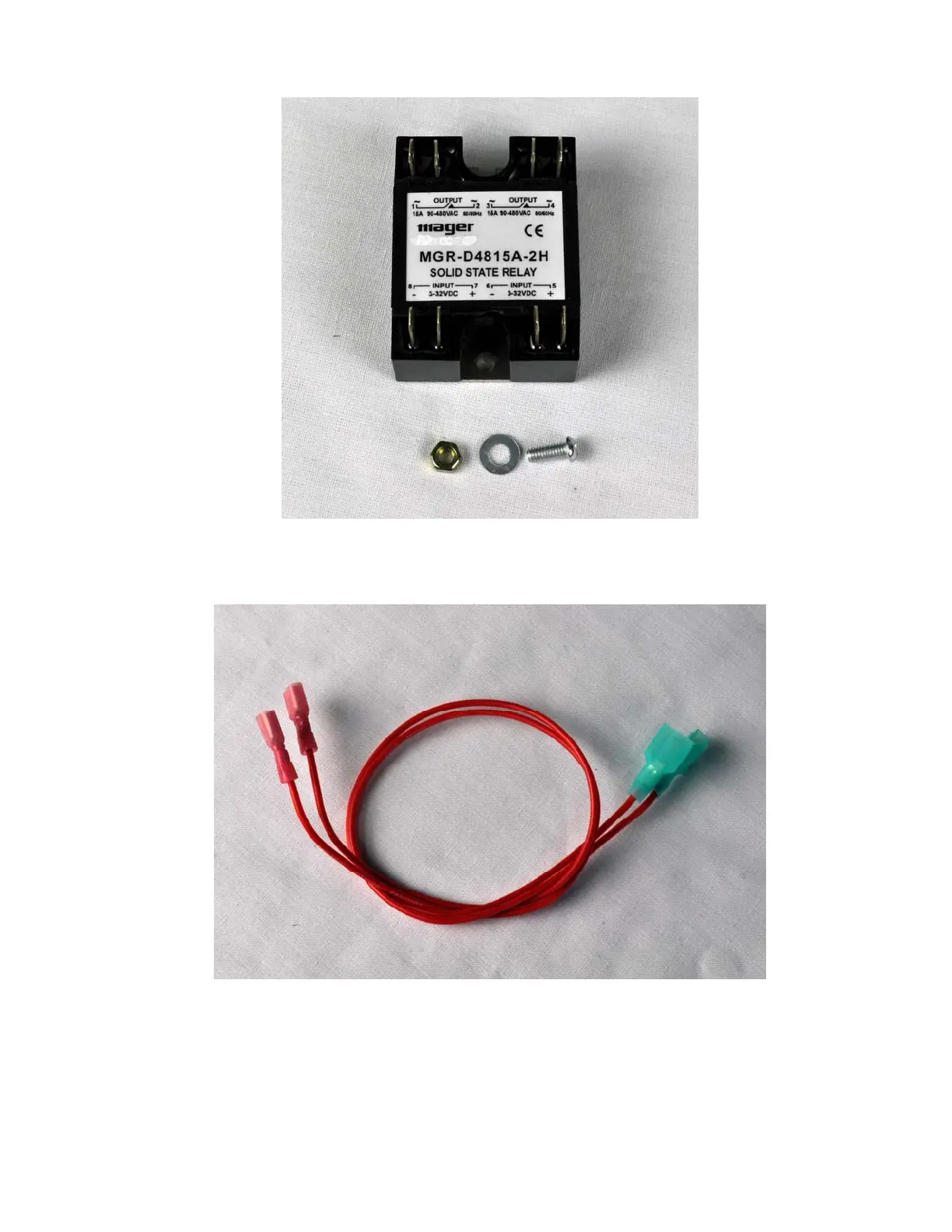

Figure 2. Dual Solid State Relay (SSR), mounting screw, nut and washer. The dual SSR
in the kit contains two SSRs in one package. The left side will be used for steam control
and the right side will be used for brew control.
Figure 3. Pair of red cables for connecting SSR output to the cables that used to be on
the brew thermostat. They are terminated with female disconnect on end and male
disconnect on the other.
2
