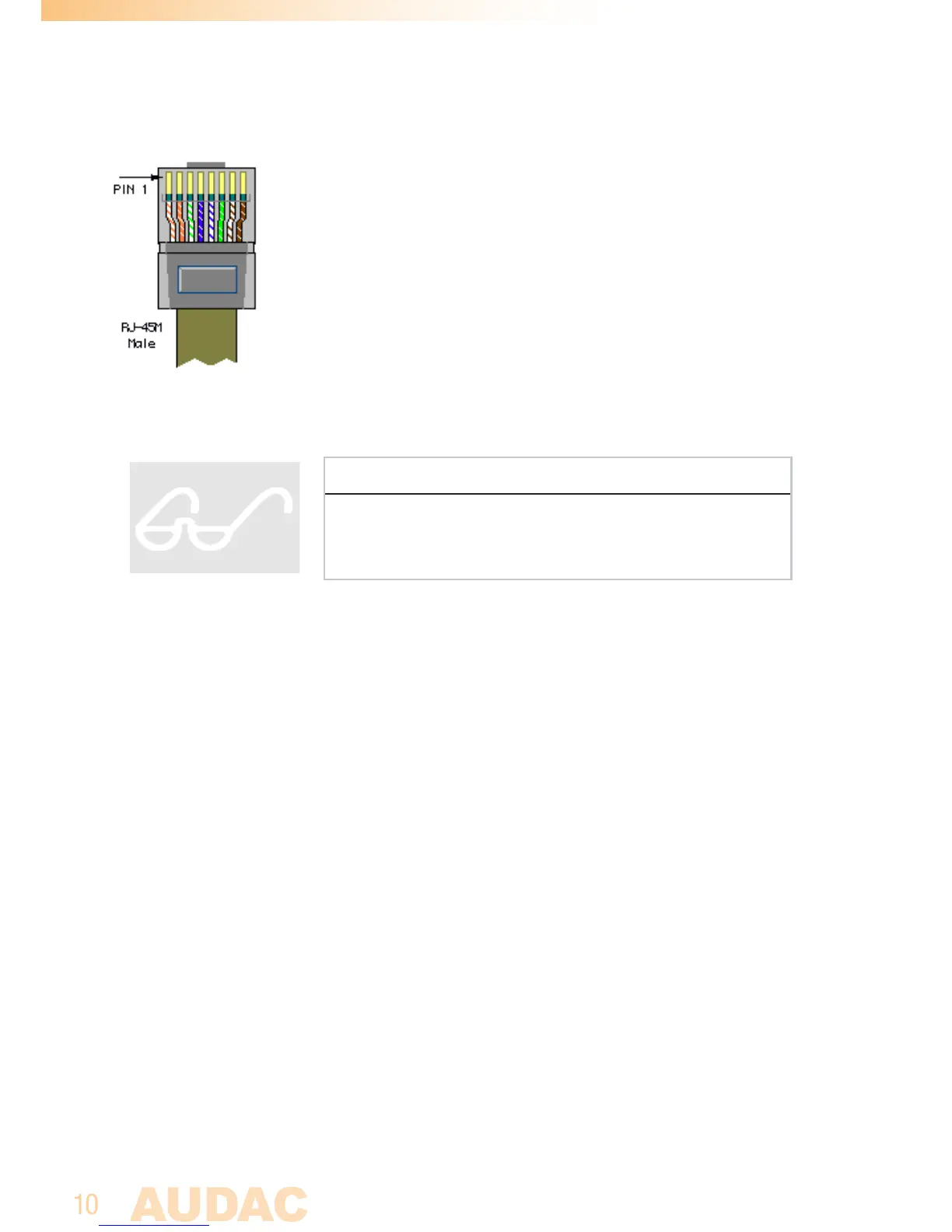

RJ45 Bus output (RS485):
For connection to Remote Wall Mixers (Audio Input & Mixing)
Pin 1 White-Orange N/C
Pin 2 Orange N/C
Pin 3 White-Green N/C
Pin 4 Blue RS485 A
Pin 5 White-Blue RS485 B
Pin 6 Green GND
Pin 7 White-Brown N/C
Pin 8 Brown N/C
ATTENTION
The twisted pair cabling must always be connected ‘straight’.
In case of self made cabling, it must be wired as described
above, to make the system work properly.
