AUDAC CELO6 User Manual

6
Installing the CELO
Introduction
The CELO speakers feature a quick-fixing mechanism, which allows quick and easy
installation of the loudspeakers in only a few minutes.
The installation of the CELO speakers requires a minimum amount of installation skills.
Before the loudspeaker is installed, the location whereto it will be mounted should be
carefully checked to make sure the surface can support the weight of the speaker and
no lines for water, gas, electricity or other supplies are crossing this point.
Installation procedure
To ensure a safe and secure mounting of the loudspeaker, the installation should be
done according to the procedure described below:

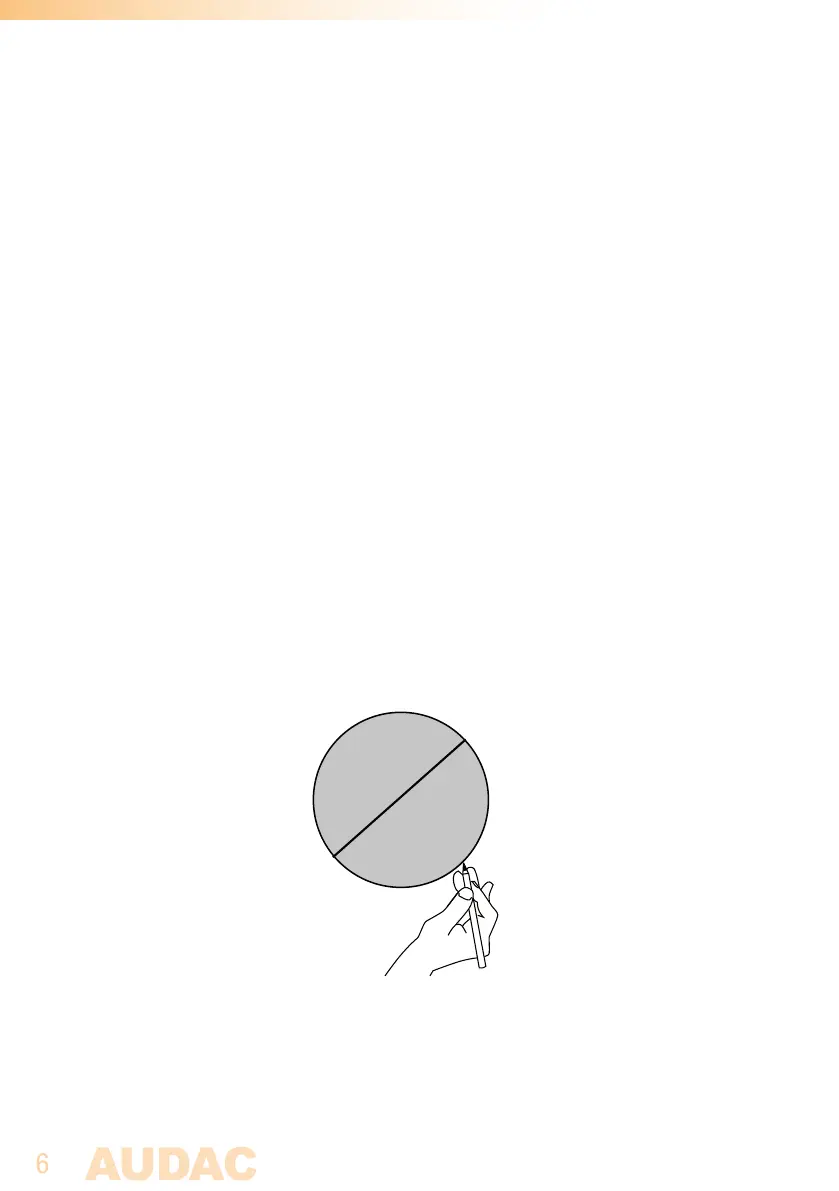

1) Firstly cut a hole in the ceiling on the desired mounting location of the loudspeaker
with a diameter of 210 mm. The included cutout template can be used for an easy
marking of the installation hole.
2) Provide the loudspeaker connection cable through the mounting hole in the
ceiling. Make sure the used connection cable is sufficiently thick. The required cable
thickness depends on its length.
210 mm

AUDAC CELO6 Specifications

Power and Sound

RMS power	60 Watt
max power	120 Watt
nominal impedance	8 Ohm
sensitivity	88 dB
sound pressure	106 dB
frequency response	55 Hz - 20 kHz
cross-over frequency	3.0 kHz

Weight and Dimensions

dimensions	Ø 230 x 103 mm
cut-out measurement	Ø 210 mm
built-in depth	100 mm
weight	1, 5 Kg
shipping weight	2, 1 Kg
