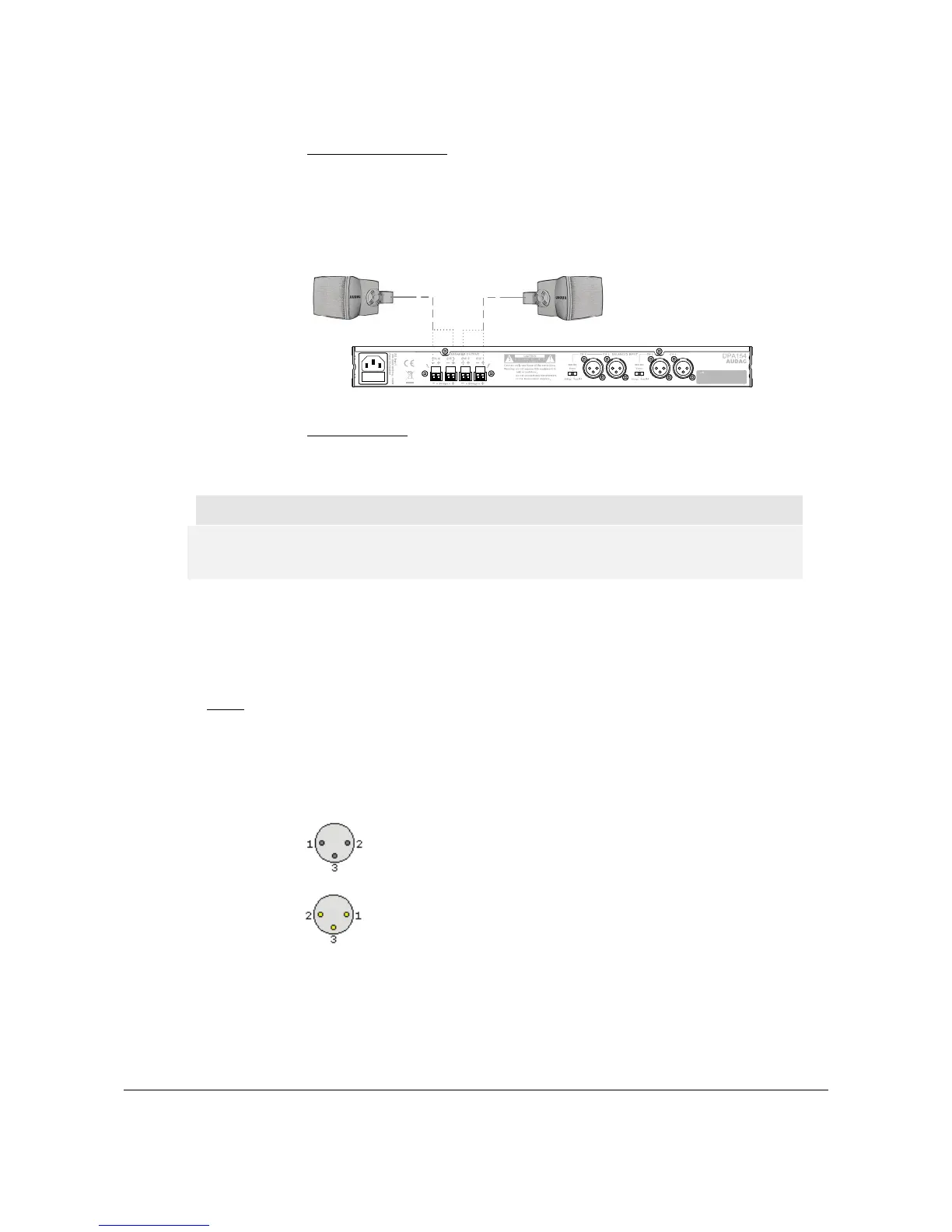

1) Bridge mono Mode:
When the amplifier is switched in bridge mode, there will be one load connected
to two amplifier outputs. This load should be connected between the + terminal
of Channel 1 and the – terminal of Channel 2. (And the + terminal of Channel 3
and the – terminal of Channel 4)
Channel 1+2
Channel 3+4
2) Parallel Mode:
When the amplifier is switched in parallel mode, the connections for the
loudspeakers should be made in the same way as Stereo mode.
Note
Do not connect any 100V line transformers to the loudspeaker outputs of the amplifier.
Connection standards
The in- and output connections of AUDAC audio equipment are performed corresponding to
international wiring standards for professional audio equipment.
XLR:
1 = ground / shield
2 = +sig
3 = -sig
XLR female:
XLR male:
