Chapter 2

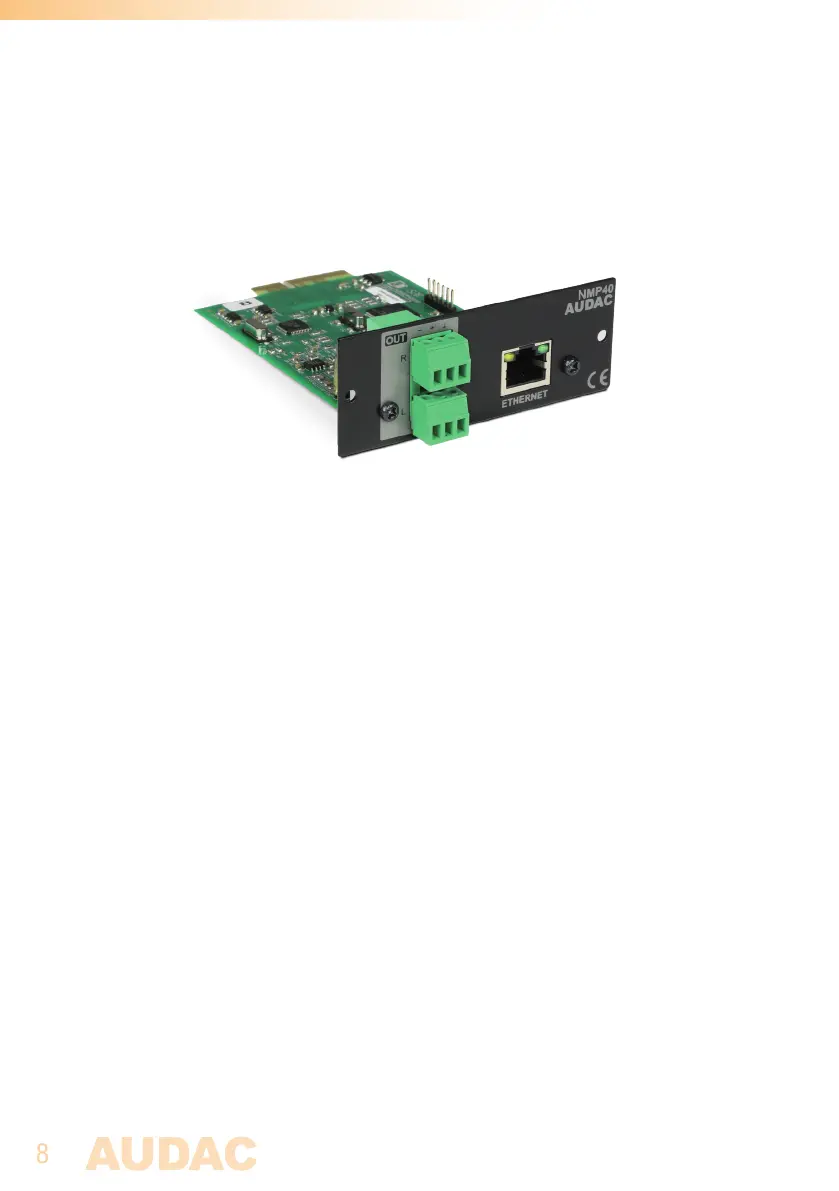

Overview NMP40
The NMP40 is a SourceCon™ compatible module featuring an (internal) board-edge
connector which carries all signals for getting it connected to any supporting main unit.
All external in & output connections shall be made using the available connectors on
the panel.
Balanced stereo line output:
The balanced stereo line output is implemented using two 3-pin terminal block
connectors. The audio output available on this connector allows it to be fed to any
amplifier or pre-amplifier.
