Rear suspension strut
The bayonet connection must be absolutely
clean and is greased with a special lubricant
before installation (see Workshop Manual).
For installation, the air spring is pushed on
and then turned.
Operating pressure of the air springs
front rear
Minimum
operating
pressure
6.0 bar 6.1 bar
Nominal
operating
pressure
6.4 bar 8.5 bar
Maximum
operating
pressure
9.0 bar 10.9 bar
Always check for leaks on the O-ring
seals at the raised areas. The sealing
surfaces must be clean, free from
corrosion and pitting (aluminium parts)
and greased as required (see Workshop
Manual).
Design and function of the rear air
springs, see SSP 242, from page 40
onwards.
Full description of the PDC damper, see
SSP 242, from page 33 onwards.

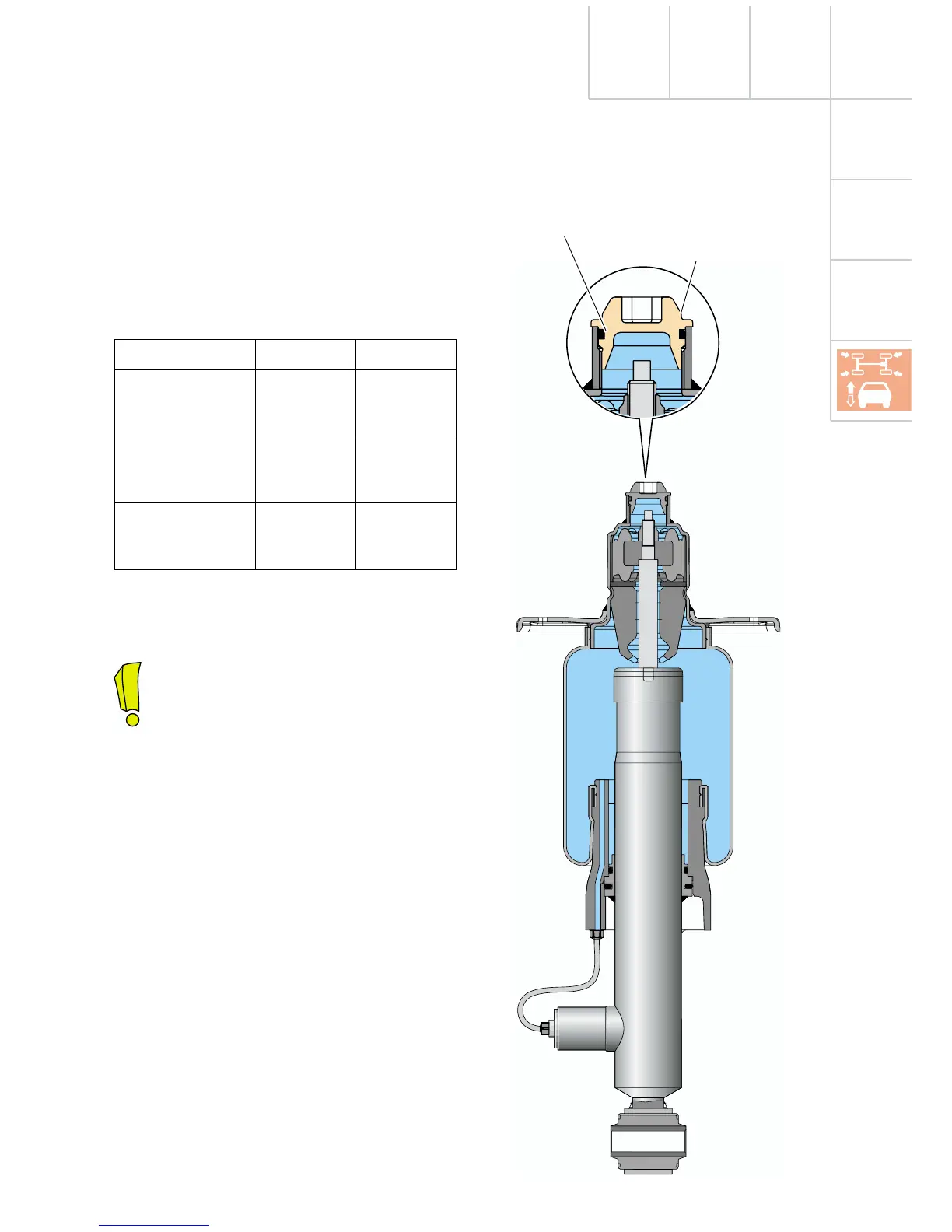

243_005
O-ring
Locking cap
