38
Special tools
Adapter cable 1598/35 with test box 1598/14
are used for fault finding and function testing
of sensors and signals of the 4-level air
suspension system.
As the pin assignment of the test box is not
compatible with the pin assignment of
control unit J197, pin template
V.A.G 1598/35-1 must be used.
Pin assignment is only possible by means of
pin template V.A.G 1598/35-1.
Service
Due to the limited number of
connections to test box V.A.G. 1598/14,
not all interfaces in control unit J197
are wired.

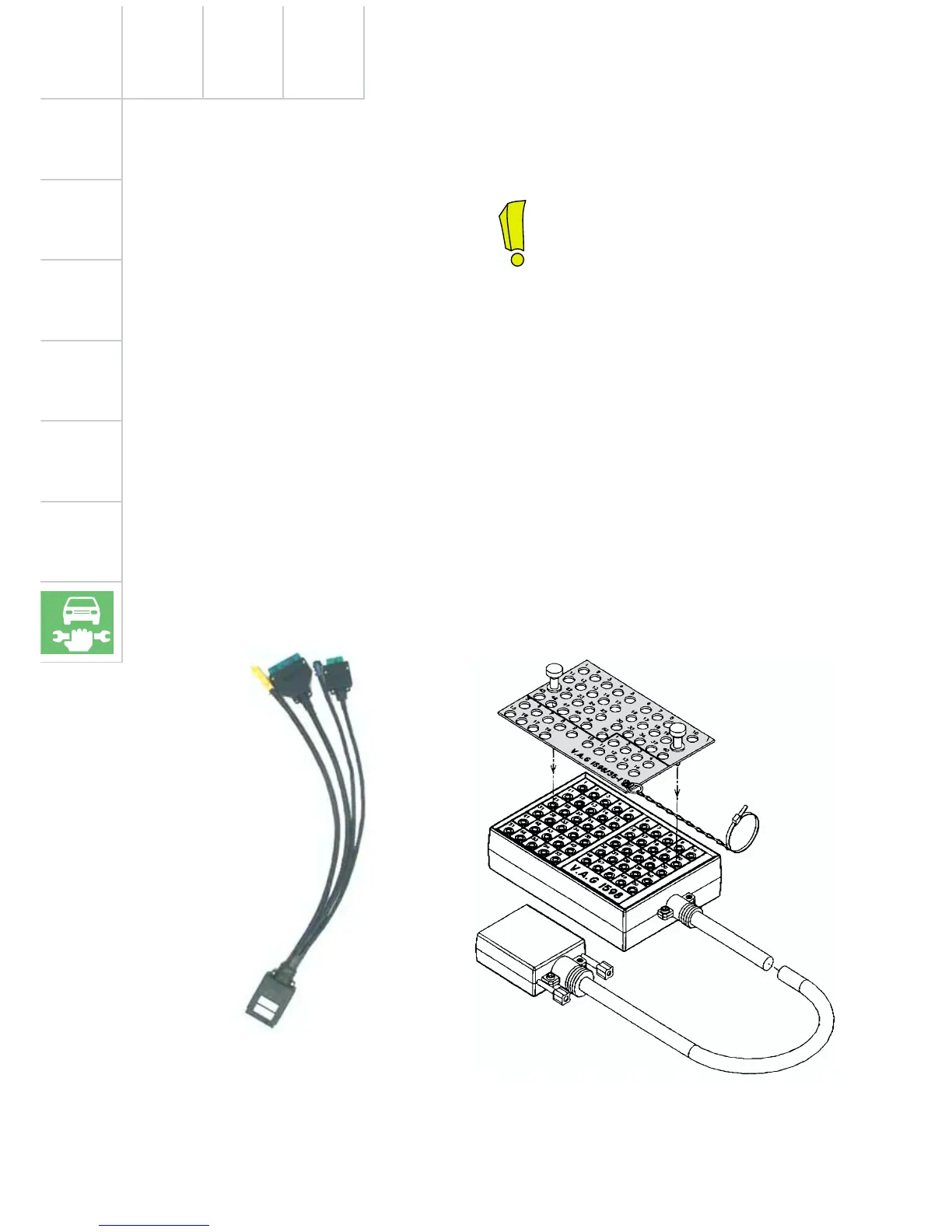

243_016
243_017
Adapter cable 1V.A.G 598/35
Pin template V.A.G. 1598/35-1
Test box
V.A.G. 1598/14
