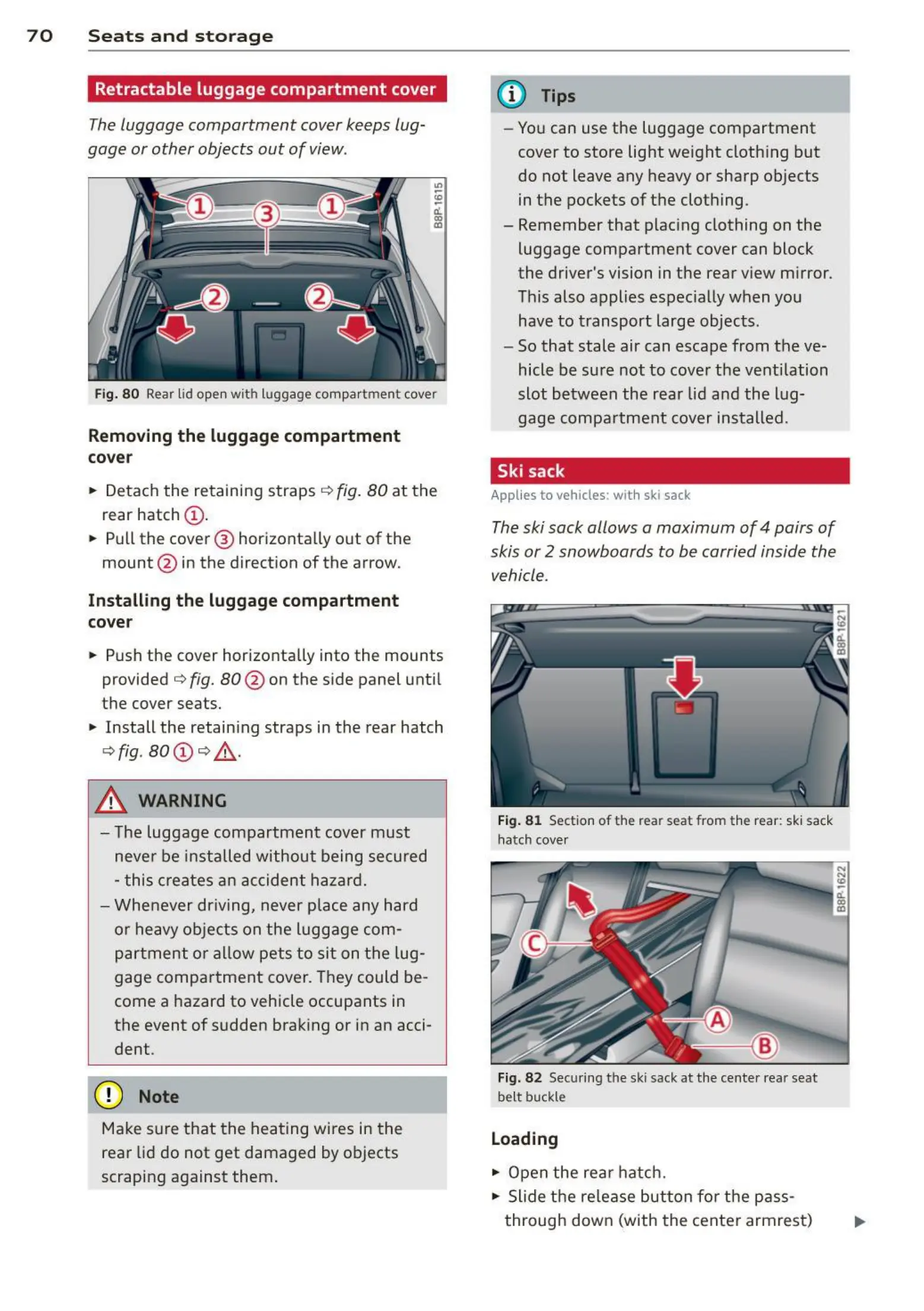

70 Seats and storage
Retractable luggage compartment cover
The luggage compartment cover keeps lug-
gage or other objects out of view.
Fig. 80 Rear lid open with luggage compartment cover
Removing the luggage compartment
cover
.. Detach the retaining straps ¢ fig. 80 at the
rear hatch
(D.
.. Pull the cover @ horizonta lly out of the
mount @ in the direct ion of the arrow.
Install ing the luggage compartment
cover
.. Push the cover horizonta lly into the mounts
provided¢
fig. B0 @ on the side panel unti l
the cover seats .
.. Install the retain ing straps in the rear hatch
¢ fig. 80 @ ¢ _.&..
&_ WARNING
- The luggage compartment cover must
neve r be installed without being secured
- this creates an acciden t hazard.
- Whe never driving, never place any hard
or heavy objects on the luggage com-
part ment or allow pets to sit on t he lug-
gage compartment cover. They could be-
come a hazard to vehicle occupants in
the event of sudden brak ing or in an acci-
dent.
{[) Note
Make sure that the heating wires in the
rea r lid do not get damaged by objects
scraping against them .
(D Tips
- You can use the luggage compartment
cover to store light weight cloth ing but
do not leave any heavy or sharp objects
in the pockets of the cloth ing.
- Remember that placing clothing on the
luggage compartment cover can block
the driver's vision in the rear view mirror.
This also applies espec ially when you
have to transport large objects.
- So that stale air can escape from the ve-
hicle be sure not to cover the vent ilation
slot between the rear lid and the lug-
gage compartment cover installed.
Ski sack
Applies to vehicles: with ski sack
The ski sack allows a maximum of 4 pairs of
skis or 2 snowboards to be carried inside the
vehicle.
Fig. 81 Section of the rear seat from the rear: ski sack
hatch cover
Fig. 82 Securing the ski sack at the cente r rear seat
belt buckle
Loading
.. Open the rea r hatch.
.. Slide the release button for the pass -
through down (with the cente r armrest)
