Audi A4 8W - Page 16

16

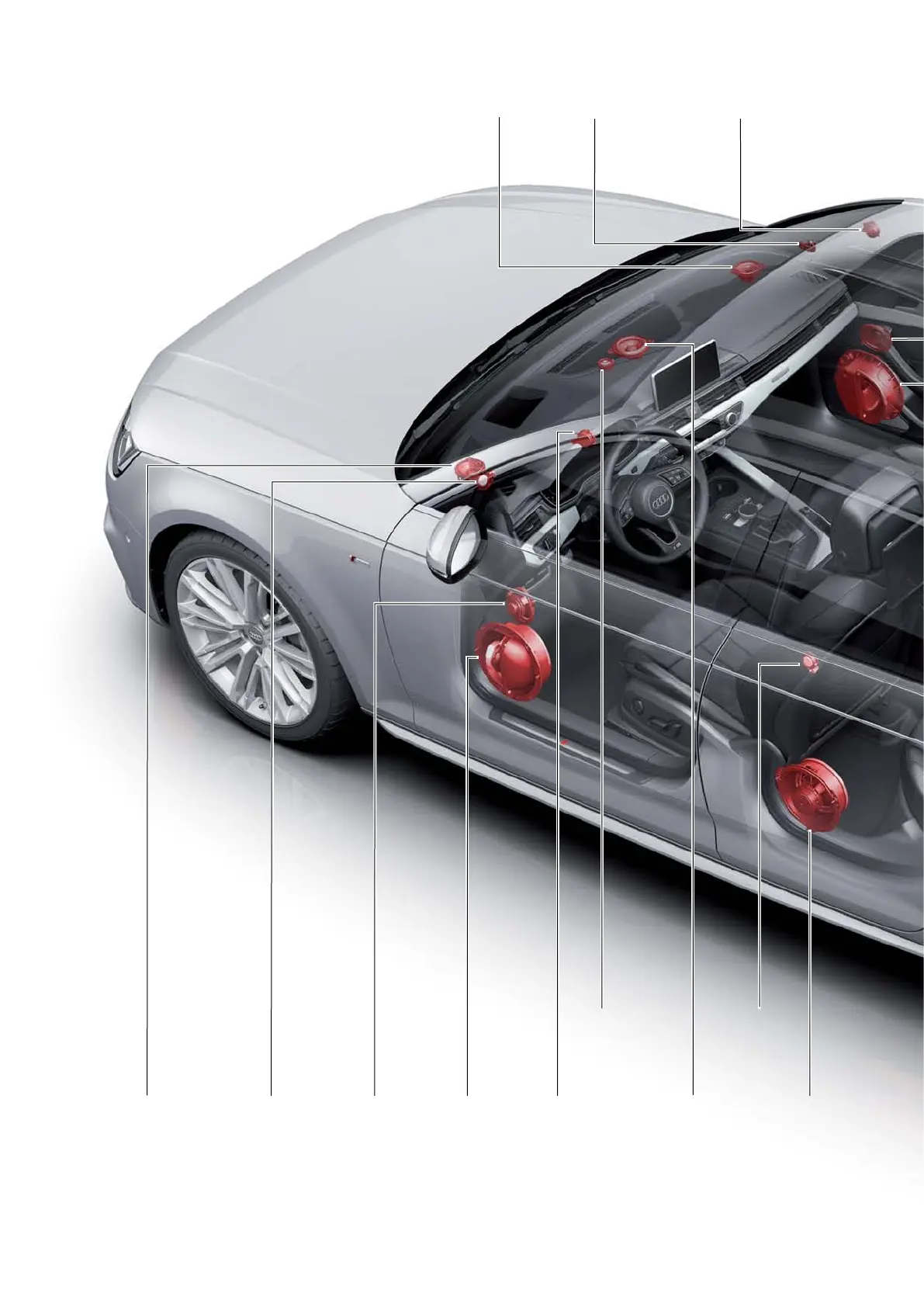

In the Audi A4 Avant, the subwoofer is in the spare wheel
well. The two eects speakers are attached to the headlin-
ing in the D post.
Treble speaker 2,
front right
R221
Treble speaker
front right
R22
Speaker,
front right
R277
Treble speaker 2,
front left
R220
Front left
speaker
R276
Treble
speaker,
front left
R20
Bass speaker,
front left
R21
Mid-range
speaker,
front left
R103
Bass speaker,
rear left
R15
Treble speaker
rear left
R14
Centre
speaker 2
R219
Centre
speaker 2
R219
