Note
♦
De-energising high-voltage system:
♦
Connect vehicle diagnostic tester
♦
Select
Guided Fault Finding
mode
♦
Using the
Go to
button, select the following menu options in
succession:
♦ Function/component selection
♦ Body
♦ Electrical system
♦ Self-diagnosis-compatible systems
♦ 8C - Hybrid battery management -J840
♦ 8C - Hybrid battery management, functions
♦ 51 - De-energise high-voltage system (Rep. gr. 93)

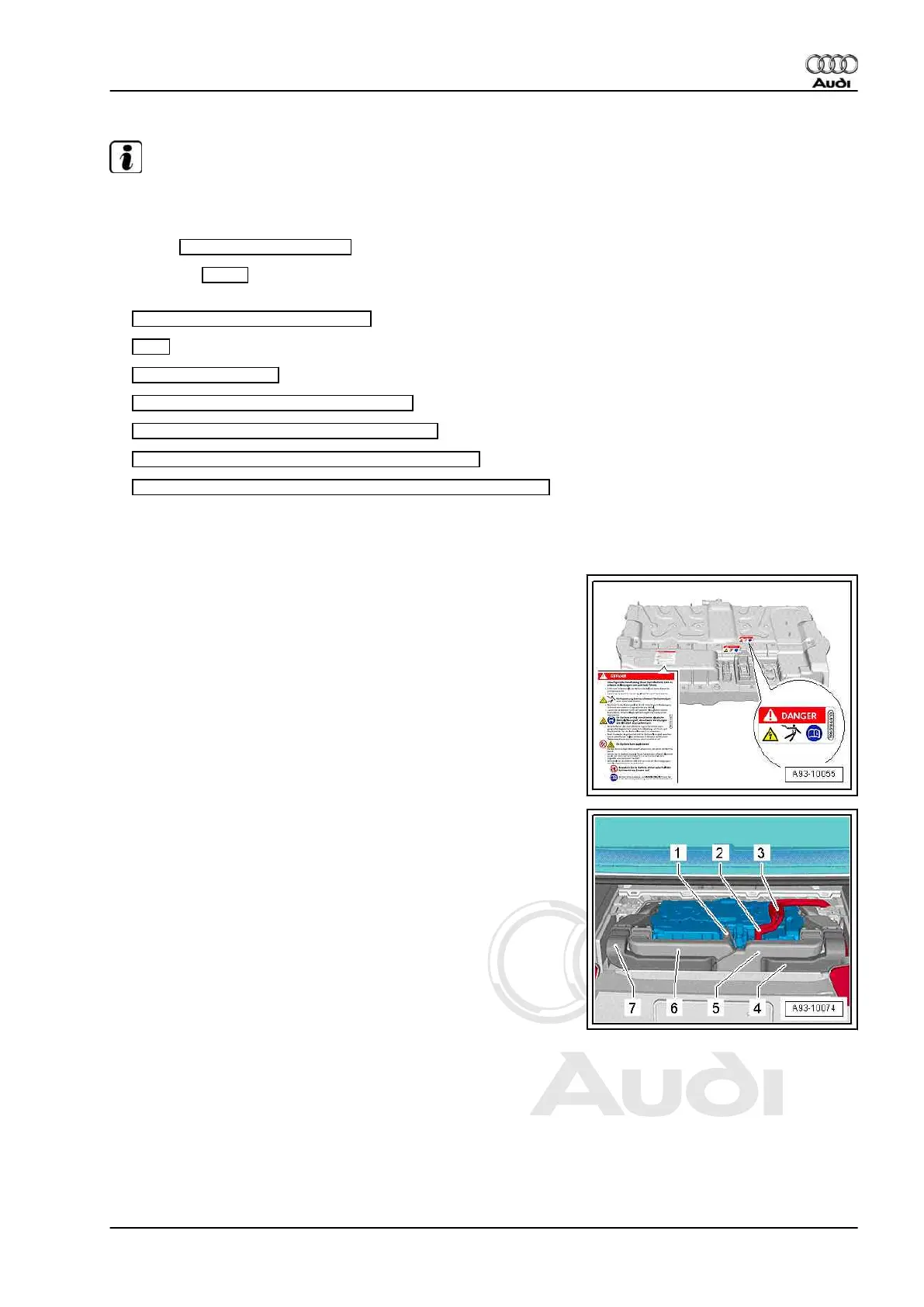

– Remove luggage compartment floor covering ⇒ General body
repairs, interior; Rep. gr. 70 ; Removing and installing luggage
compartment floor covering .
– Take care not to damage the red warning label and the battery
warning label.
– Unplug connectors to battery cooling module -1-.
– Pull off cover over high-voltage wires.
– Release and unplug connectors -2- for high-voltage wire for
hybrid battery, positive terminal - P1- and high-voltage wire for
hybrid battery, negative terminal - P2- .
