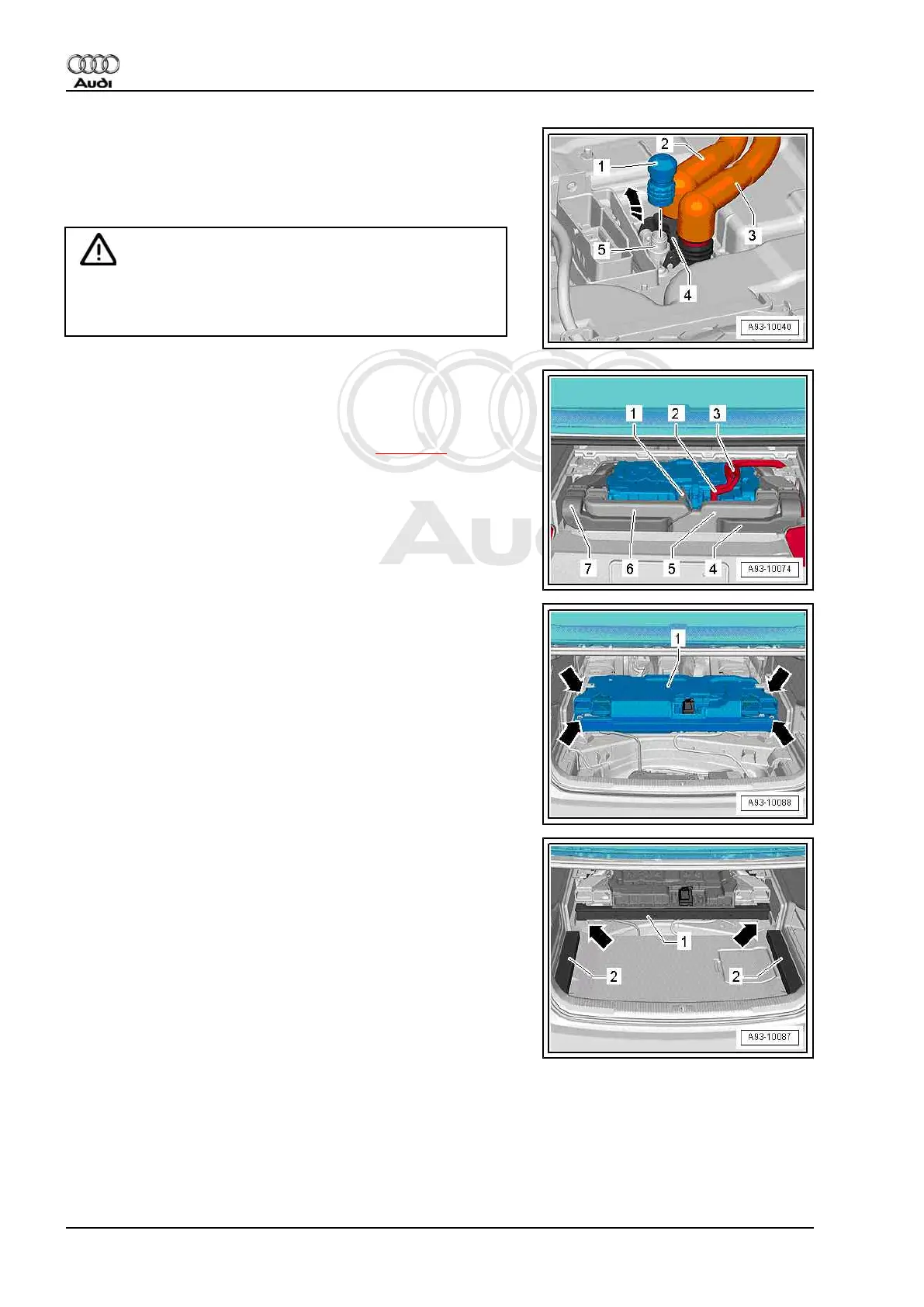

– First pull out pilot line connector 1 - TV44- -1- then fold up
retaining clip -4- in direction of -arrow-.
– Release and disconnect high-voltage wire for hybrid battery,
positive terminal - P1- -3- and high-voltage wire for hybrid bat‐
tery, negative terminal - P2- -2- using release tool - T40258- .
Caution
Only unplug high-voltage connectors by pulling them upwards.
Do NOT rotate or tilt them; this could damage the coding on
the high-voltage wires.
– Pull high-voltage wiring harness for hybrid battery - PX1- -2-
out of wiring clip -3- and move to side.
– Remove air ducts -4- to -7-.
– Unbolt potential equalisation line on body ⇒ page 11 and set
down on hybrid battery unit - AX1- .
– Remove bolts -arrows- on bracket for hybrid battery unit - AX1-
-1-.
– Re-insert rear luggage compartment floor.
– Place rails - T40275- -2- in luggage compartment on both
sides.
– Lift hybrid battery unit - AX1- with bracket -1- over two bolt
heads -arrows- and set down towards rear on rails - T40275-
-2-.
