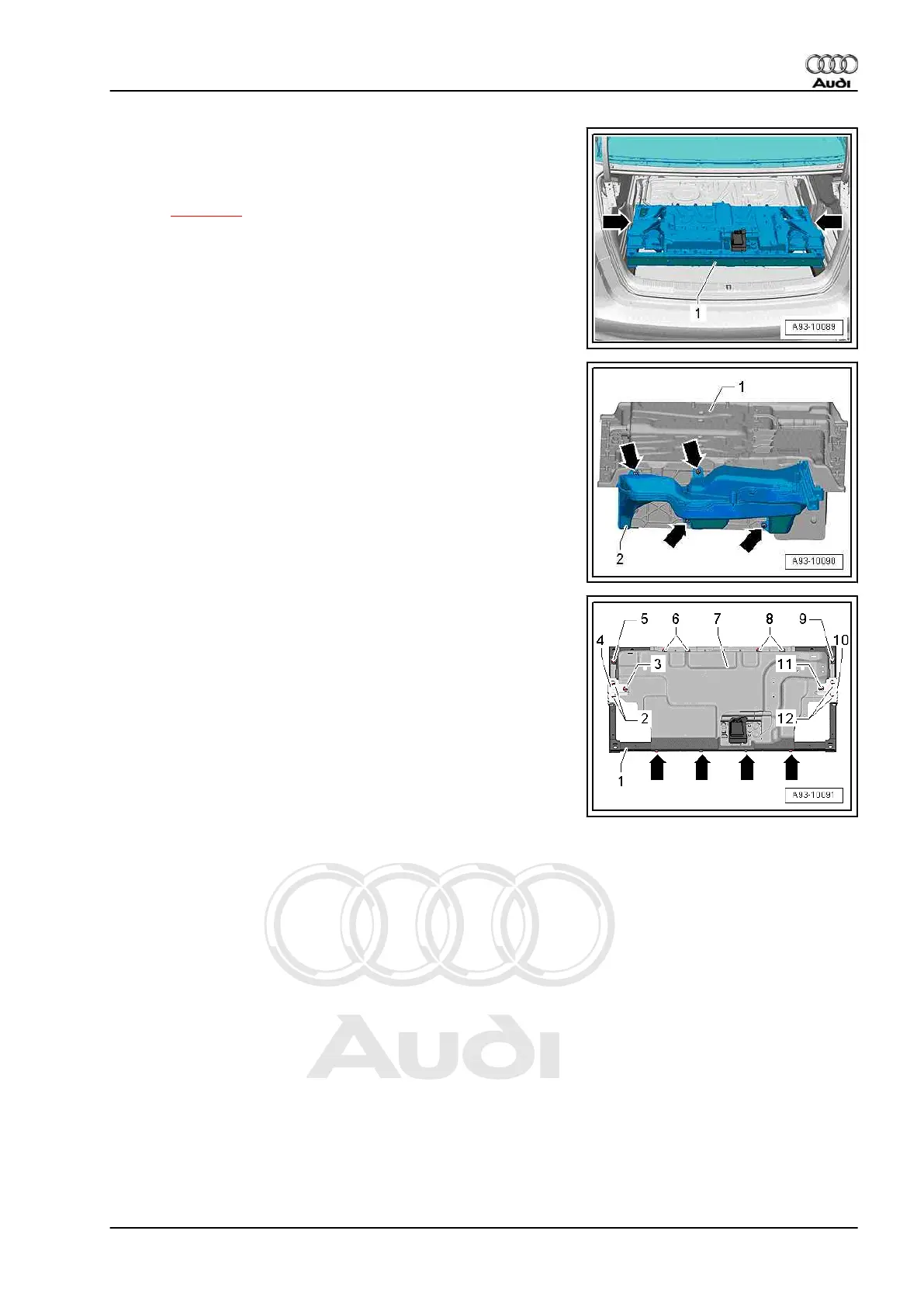

– With assistance from a second mechanic, take hold of the hy‐
brid battery unit - AX1- -1- on both sides -arrows- and lift it out
of luggage compartment.
– Remove potential equalisation line on hybrid battery unit -
AX1- ⇒ page 11 .
– Set down hybrid battery unit - AX1- on a suitable surface.
– Remove air ducts -2- -arrows-.
Removing cover and bracket:
– Remove bolts -2-, -3-, -11- and -12-.
– Remove brackets for fastening rings -4- and -10-.
– Remove bolts -5-, -6-, -8-, -9- and -arrows-.
– Remove cover -7- from hybrid battery unit - AX1- .
Audi A6 2011 ➤ , Audi A6 Avant 2011 ➤
Electrical system, hybrid - Edition 03.2014
6. Components specific to high-voltage system 23
