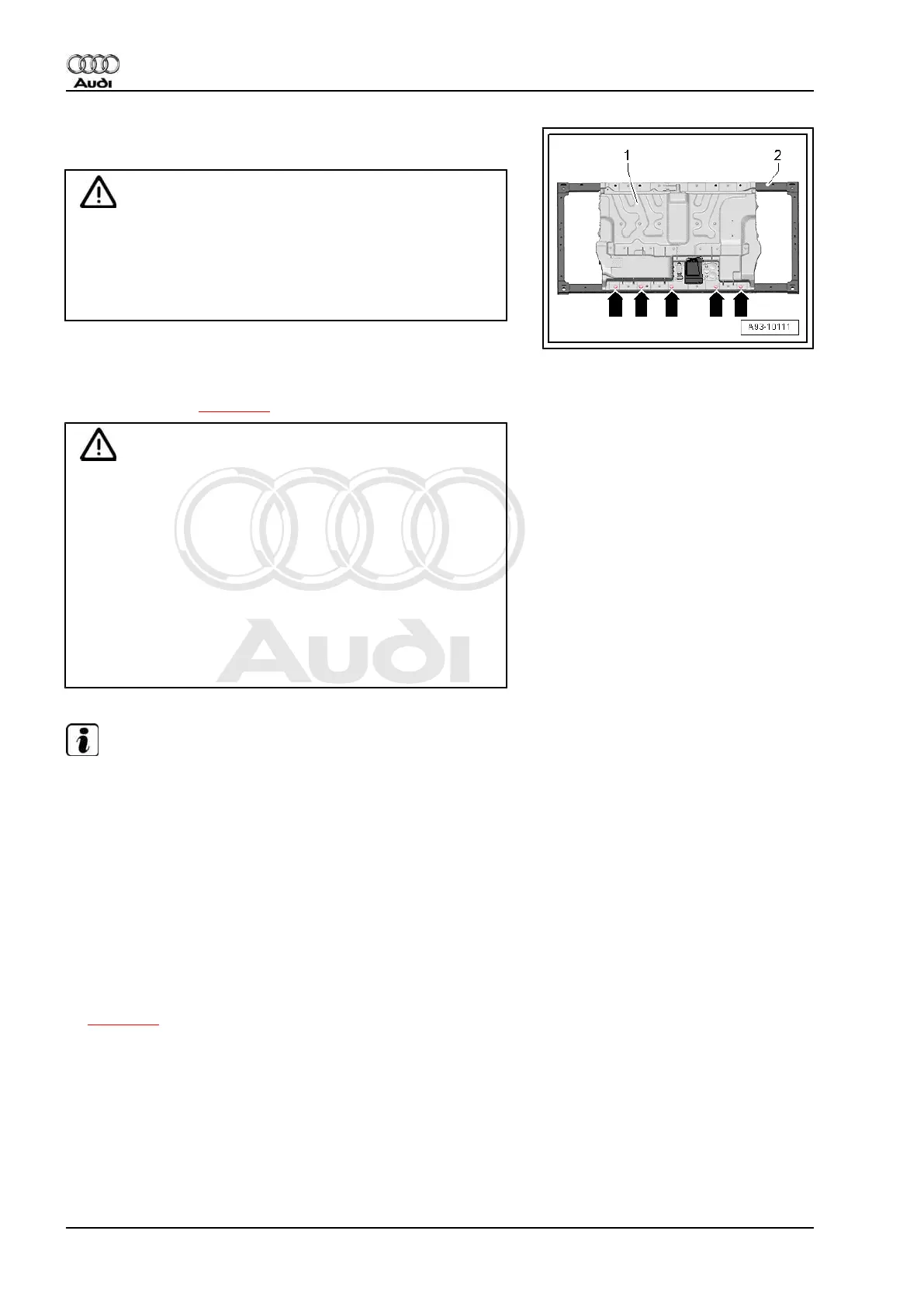

– Remove bolts -arrows- and take hybrid battery unit - AX1-
-1- off bracket -2-.
Caution
Danger of physical injury and material damage
Observe notes on storing and transporting the lithium-ion high-
voltage battery ⇒ Basic information on high-voltage vehicles;
Rep. gr. 00 ; Lithium-ion high-voltage battery; Storing and
transporting the lithium-ion high-voltage battery .
Installing
Install in reverse order. Please note the following:
Tightening torques ⇒ page 18
WARNING
Working on vehicles with high-voltage wiring:
• Do not support yourself or tools on high-voltage wiring or
associated components --> this can damage the insula‐
tion.
• High-voltage wiring must not be excessively bent or
kinked --> this can damage the insulation.
• The round high-voltage connectors are colour-coded with
an external coloured ring and are provided with mechan‐
ical coding or guide lugs. It is important to observe this
coding when joining up the round high-voltage connec‐
tors, otherwise the connectors can be damaged.
Note
♦
When fitting hybrid battery unit - AX1- in vehicle, make sure
that no lines or connectors are trapped beneath hybrid battery
unit - AX1- .
♦
The contact surfaces of the potential equalisation line must be
checked prior to installation.
♦
The contact surfaces must be clean and free from rust and
grease.
♦
Otherwise, repair the contact surfaces using the contact sur‐
face cleaning set - VAS 6410- ⇒ Electrical system; General
information; Rep. gr. 97 ; Cleaning contact surfaces with con‐
tact surface cleaning set - VAS 6410- .
– Connect high-voltage wires according to their coding
⇒ page 38 .
