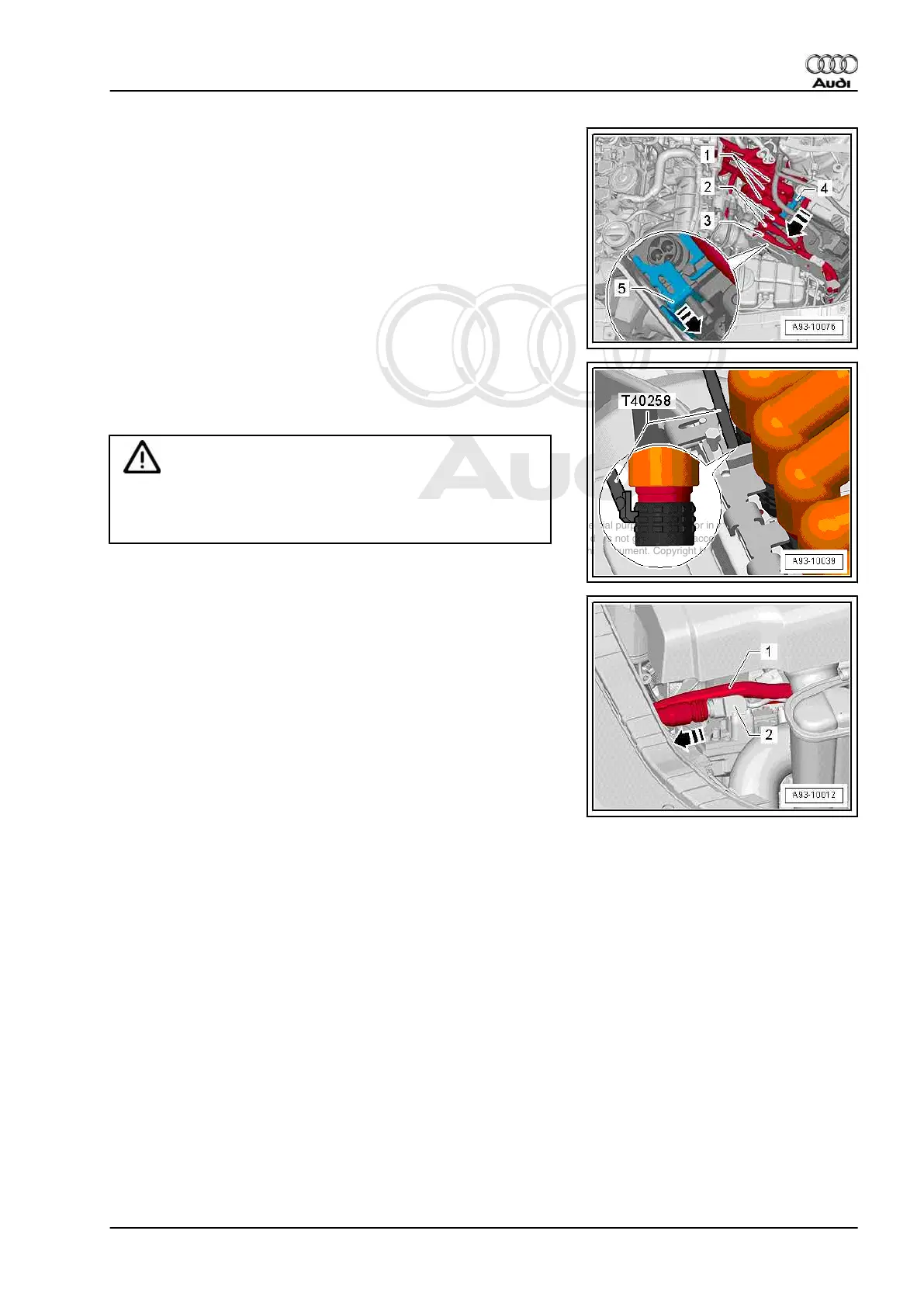

– Pull catch -5- in direction of -arrow-.
– Starting from the right, release high-voltage wire for electrical
air conditioner compressor - P3- -3- on power and control
electronics for electric drive - JX1- using release tool - T40258-
and pull off.
Caution
Only unplug high-voltage connectors by pulling them upwards.
Do NOT rotate or tilt them; this could damage the coding on
the high-voltage wires.
– Release and unplug high-voltage wire for electrical air condi‐
tioner compressor - P3- -1- on electrical air conditioner com‐
pressor - V470- -2- in direction of -arrow- using release tool -
T40258- .
Audi A6 2011 ➤ , Audi A6 Avant 2011 ➤
Electrical system, hybrid - Edition 03.2014
6. Components specific to high-voltage system 51
